China top brand pvc pipe manufacturing machine plastic pipe extrusion production machine line
China top brand pvc pipe manufacturing machine plastic pipe extrusion production machine line
China top brand pvc pipe manufacturing machine plastic pipe extrusion production machine line
China top brand pvc pipe manufacturing machine plastic pipe extrusion production machine line
China top brand pvc pipe manufacturing machine plastic pipe extrusion production machine line
China top brand pvc pipe manufacturing machine plastic pipe extrusion production machine line
China top brand pvc pipe manufacturing machine plastic pipe extrusion production machine line
China top brand pvc pipe manufacturing machine plastic pipe extrusion production machine line

China top brand pvc pipe manufacturing machine plastic pipe extrusion production machine line

FOB Reference Price: Get Latest Price
≥1 Sets
US $70000
≥3 Sets
US $69000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Screw Speed (rpm):
50 rpm
Place of Origin:
Jiangsu, China
Brand Name:
XINRONG
Voltage:
380V
Power (kW):
150
Weight:
20000 KG
Keywords:
PVC pipe manufacturing machine
Raw material:
pvc
Usage:
pvc pipe extrusion line
Pipe diameter:
16-630mm
Pipe application:
Water Pipeling
motor:
Siemens Motor
Keyword:
PVC pipe machine
control system:
PLC Control
Electric part:
schneider
Product name:
PVC pipe making machine

Quick Details

Screw Design:
Double-screw
Screw L/D Ratio:
156:1
Screw diameter (mm):
80 mm
Screw Speed (rpm):
50 rpm
Place of Origin:
Jiangsu, China
Brand Name:
XINRONG
Voltage:
380V
Power (kW):
150
Weight:
20000 KG
Keywords:
PVC pipe manufacturing machine
Raw material:
pvc
Usage:
pvc pipe extrusion line
Pipe diameter:
16-630mm
Pipe application:
Water Pipeling
motor:
Siemens Motor
Keyword:
PVC pipe machine
control system:
PLC Control
Electric part:
schneider
Product name:
PVC pipe making machine
Final Products
PVC Pipe.
1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.
2. Low fluid resistance: The wall of PVC-U pipe is very smooth and has little resistance to fluid. Its roughness coefficient is only 0.009. Its water delivery capacity is 20% higher than that of cast iron pipes of the same pipe diameter and 40% higher than that of concrete pipes.
3. Excellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance, and corrosion resistance, and are not affected by damp water and soil pH. No anti-corrosion treatment is required when laying pipelines.
4. Anti-bite: PVC-U tube is not a source of nutrition, so it will not be corroded by rodents. According to a test conducted by the National Sanitation Foundation in Michigan, rats will not bite PVC-U pipes.
5. It has good water tightness: the installation of PVC-U pipes, regardless of whether it is connected by bonding or rubber ring, has good water tightness.
6. Performance test: curing time, shrinkage, splitting strength, tensile performance, peeling strength, thermal stability, pot life, storage period, release of harmful substances.

If you want to know more about Plastic Pipe Extrusion Line, inquiry us now!
Products Description

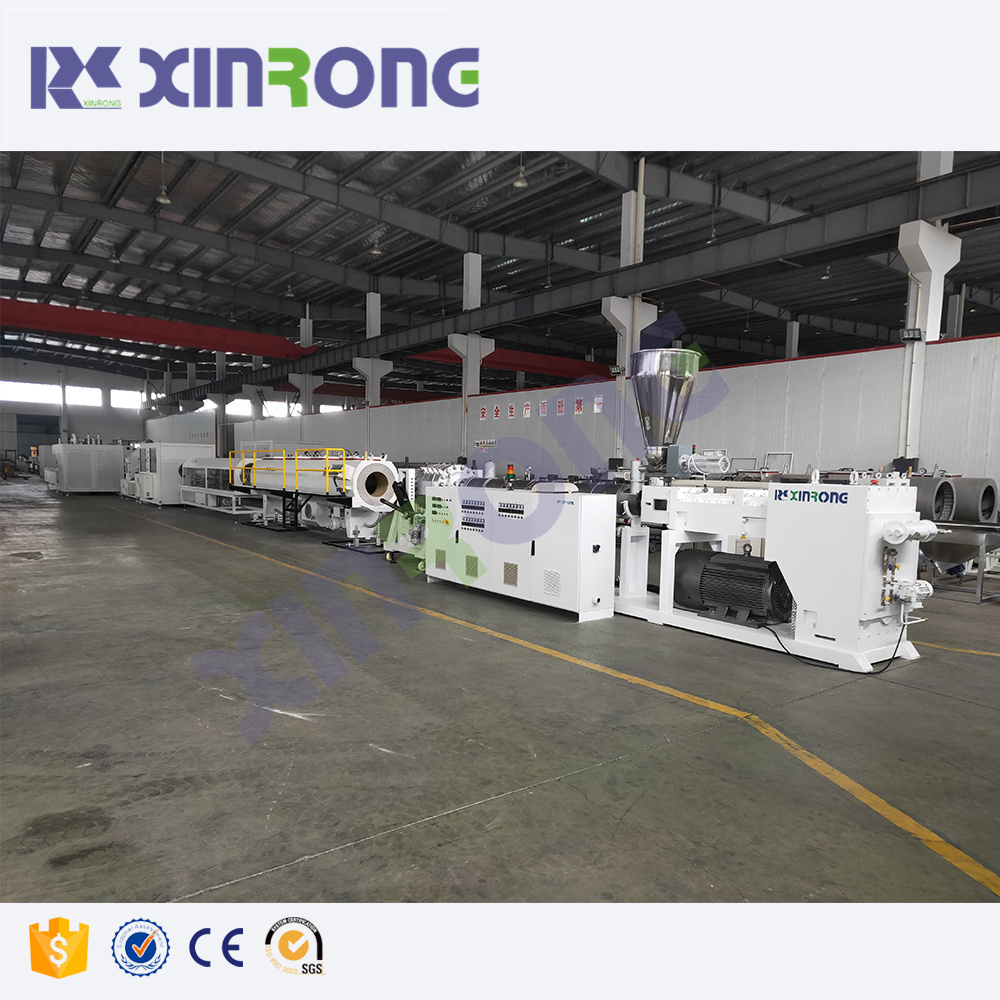

PVC Pipe Extrusion Line.
Our company has full range of PVC pipe extrusion line, including four cavity pipe extrusion line, double cavity pipe extrusion line and large diameter pipe extrusion line. Our company will also provide basic formula for PVC pipe production, customer can adjust easily based on the formula. We manufacture machines for production of different PVC pipes, including U-PVC, C-PVC, M-PVC, PVC-O pipes, etc.

Our PVC pipe extrusion line can produce from size of minimum 16mm to 1000mm with single layer or multi-layer.
Twin Screw Extruder.
1.1 Siemens PLC
1.2 Quality Screw and Barrel
1.3 Air Cooled Ceramic Heater
1.4 High Quality Gearbox and Distribution Box
1.5 Better Cooling of Gearbox
1.6 Advanced Vacuum System
Both conical twin screw extruder and parallel twin screw extruder can be applied to produce PVC pipe. With latest technology, to lower power and ensure capacity. According to different formula, we provide different screw design to ensure good plasticizing
effect and high capacity.
Extrusion Die Head.
2.1 Moving Device of Die Head
2.2 Die Head Rotary Device
2.3 CNC Processing
2.4 High Quality Material

Extrusion die head apply bracket structure, each material flow channel is placed evenly. Each channel is after heat treatment,
mirror polishing and chroming to ensure material flow smoothly.
Die head is modular design, easy for changing pipe sizes, assembling, dismantle and maintenance. Can produce single layer or
multi-layer pipe.
Vacuum Tank.
3.1 Strong Cooling for Calibrator
3.2 Better Support for Pipe
3.2 Pressure Relief Valve
3.3 Double Loop Pipeline
3.4 Water, Gas Separator
3.5 Full Automatic Water Control
3.6 Centralized Drainage Device
Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is
in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe
shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.



Cooling Tank.
4.1 Pipe Clamping Device
4.2 Water Tank Filter
4.3 Quality Spray Nozzle
4.4 Pipe Support Adjusting Device
4.5 Pipe Support Device

Cooling tank is used to cool pipe further.
Haul off unit.
5.1 Pipe Clamping Device
5.2 Water Tank Filter
5.3 Quality Spray Nozzle
5.4 Pipe Support Adjusting Device
5.5 Pipe Support Device

Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed, also avoid deformation of pipe during traction.


Cutter.
6.1 Aluminum Clamping Device
6.2 Advanced Hydraulic System
6.3 Dust Collection System

Cutter controlled by Siemens PLC with chamfering function, working together with haul off unit to have precise cutting. Customer
can set the length of pipe they want to cut.
Full Automatic Belling Machine
7.1 Pipe Cleaning System
7.2 Infrared Heating System
7.3 Central Height Adjustment

To make socket at pipe end which is easy for pipe connection. There are three types of belling type: U type, R type and Square
type. We provide belling machine which can finish belling of pipe on line fully automatic. From minimum size 16mm to maximum size
1000mm, can with multi heating oven and belling station.
Product Paramenters
Model
Pipe Range (mm)
Output Capacity (kg/h)
Main Motor Power (kw)
PVC32SS*
16 - 32 (×4)
180 - 250
22 - 37
PVC63
16 - 63
180 - 250
22 - 37
PVC63SS*
16 - 63 (×2)
250
37
PVC110
20 - 110
250
37
PVC160
50 - 160
250
37
PVC250
75 - 250
450
55
PVC450
110 - 450
450 - 800
55 - 110
PVC630
250 - 630
800
110
PVC800
315 - 800
1000
132
PVC1000
400 - 1000
1200
160
S* means double-strand/cavity, two pipes produced at same time.
SS* means four-strand/cavity, four pipes produced at same time.
Production Line Parameter (for reference only, can be customized)
Recommend Products
PE Pipe machine
PPR Pipe machine
PVC pipe machine
PE double wall corrugated pipe machine
Why Choose Us
Jiangsu Xinrongplas Machinery Co., Ltd.
Jiangsu Xinrongplas was established in 1996. The production experience is mature and rich. Among them, it has been exporting for more than 27 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.
Workshop.
We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.

Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!
Certificates & Patents.
International certification, National Certificate of equipment verification, and more than 30 invention patents.
Verification Certificates of equipments: ISO; CE Certificate , SGS, COC, TUV National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.

Exhibitions.

Xinrong Team.
FAQ
1) Are we manufacture or trade company?
We are manufacture,have 27 years' experiences in this field.

2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic recycling machine.

3) What kind payment we accept?
Payment term like T/T, L/C.

4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.

5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.

6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test the each production step for the best machine.

7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.

8) How long is your machine’s guarantee time?
One year

9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
