Quick Details
-
Capacity per well (ml/cy):
-
0.2
-
Nominal pressure (MPa):
-
31.5
-
Starting pressure (MPa):
-
≤1.5
-
Relief valve overflow pressure (MPa):
-
10
Quick Details
-
Place of Origin:
-
Hunan, China
-
Application:
-
Concrete pump truck
-
Product name:
-
distributor
-
Capacity per well (ml/cy):
-
0.2
-
Nominal pressure (MPa):
-
31.5
-
Starting pressure (MPa):
-
≤1.5
-
Relief valve overflow pressure (MPa):
-
10
Products Description
|
The company specializes in the production of all kinds of high, medium, low pressure dry, thin oil lubrication equipment,hydraulic components, fluid connectors, support to map customization, large volume support logo customization, welcome overseas customers to come to buy, excellent price, good quality。
Product description

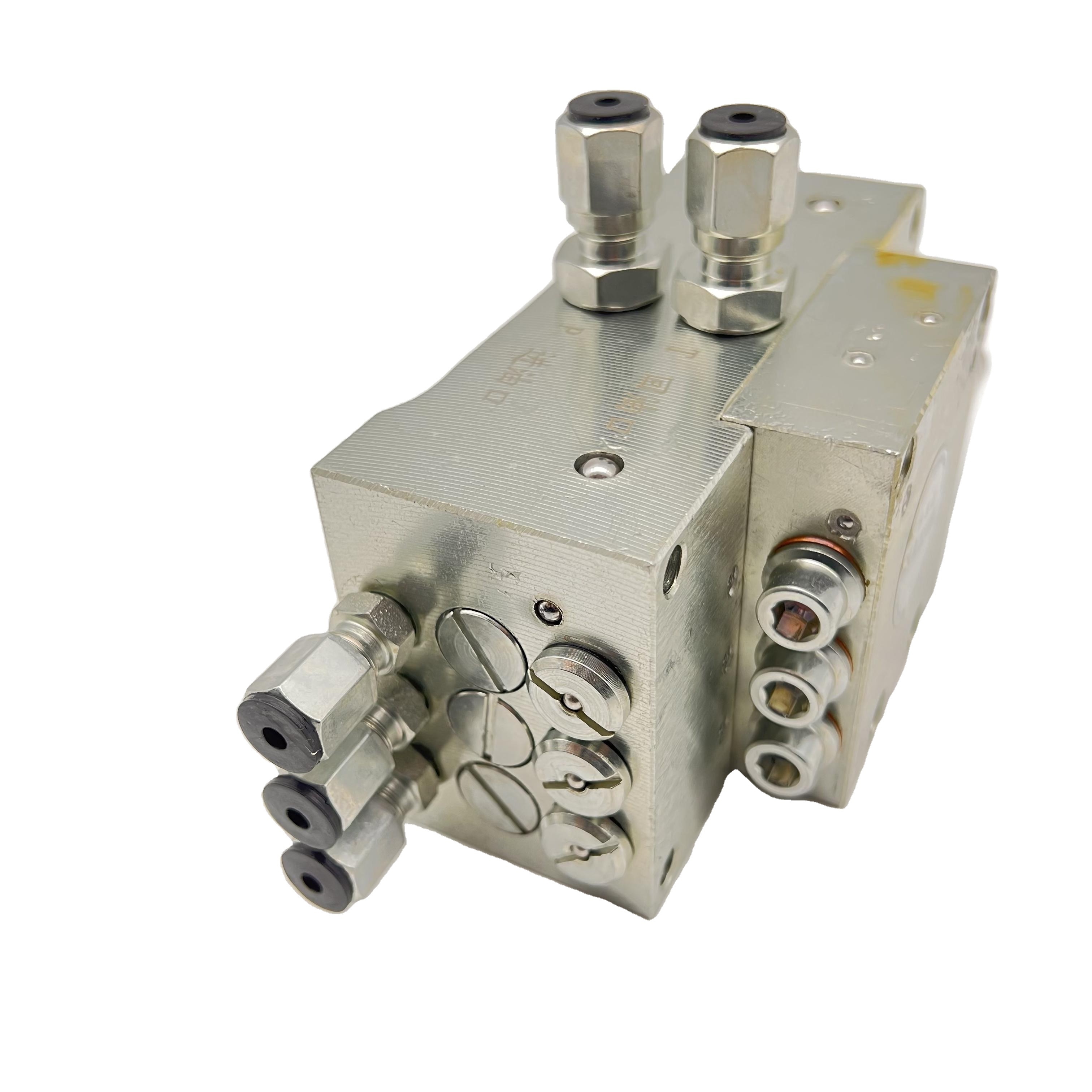

JPQ-M progressive distributor Whole sheet structure, good sealing, high pressure, suitable for heavy load grease lubrication system. It can be connected in series by the child and the mother, and it can be divided into two and three levels of oil. Optional cycle indicator for remote control or control of lubrication system. Model example 6 JPQ - M1/0.2/66 D: The first series of JPQ-M series progressive distributor; 6 standard export oil; 0.2ml/ cycle per mouth; The oil inlet is connected with a 6mm outer diameter pipe joint; The oil outlet is connected to the check valve connector of the 6mm outer diameter pipe D Technical parameter Model: JPQ-M1 |
|
Capacity per well (ml/cy) : 0.2
|
|
Nominal pressure (Mpa) : 31.5
|
|
Starting pressure (Mpa) : ≤1.5
|
|
Number of feed ports (PCS) : 6~20
|
|
Model: JPQ-M2
|
|
Displacement per hole (m/g) : 0.15; 0.20; 0.30; 0.38; 0.48; 0.60; 0.72; 0.86
|
|
Nominal pressure (Mpa) : 31.5
|
|
Starting pressure (Mpa) : ≤1.5
|
|
Number of feed ports (PCS) : 6~20
|
|
