- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
BNTET
-
Fuels:
-
Gas
-
Product name:
-
Industrial Burner Gas Gas Burner For Boiler Oven Stove Stenter
-
Power:
-
280 ~ 850Kw
-
Motor power:
-
1.5 KW
-
Size:
-
1250x900x800
-
Power Supply:
-
380V50Hz
-
Weight:
-
95Kg
-
Name:
-
Burners Industrial Gas Gas Industrial Burner
-
Keywords:
-
BNTET Gas Burner
-
After Warranty Service:
-
Online support
Quick Details
-
Type:
-
Gas Burner
-
Weight (KG):
-
95
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BNTET
-
Fuels:
-
Gas
-
Product name:
-
Industrial Burner Gas Gas Burner For Boiler Oven Stove Stenter
-
Power:
-
280 ~ 850Kw
-
Motor power:
-
1.5 KW
-
Size:
-
1250x900x800
-
Power Supply:
-
380V50Hz
-
Weight:
-
95Kg
-
Name:
-
Burners Industrial Gas Gas Industrial Burner
-
Keywords:
-
BNTET Gas Burner
-
After Warranty Service:
-
Online support

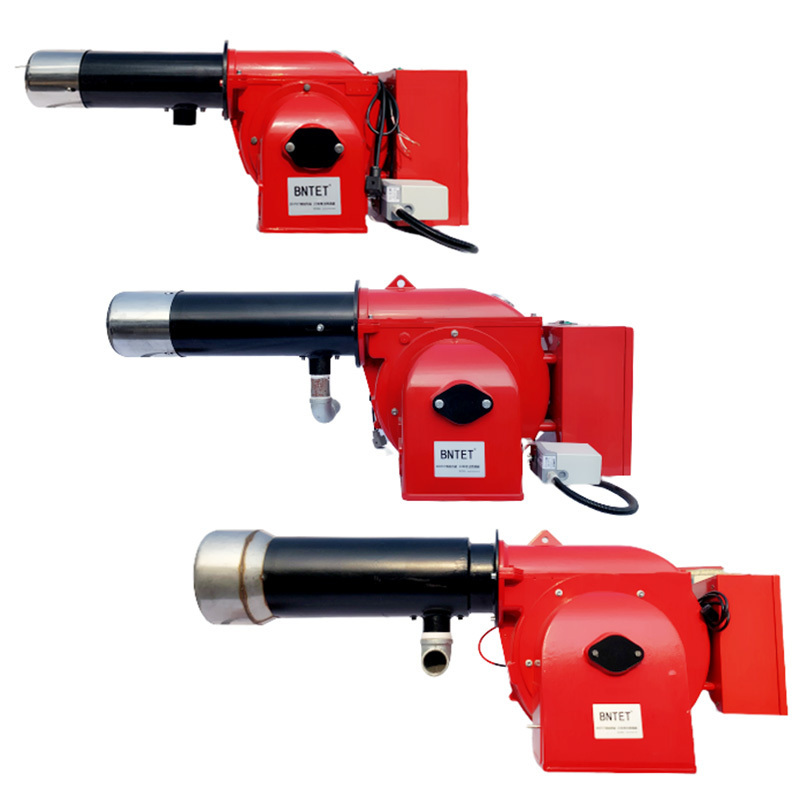

BNTET Gas burner series Gas Fired Furnace With Control Panel for Aluminum Melting
2.Single Two-stage sliding/modulating working.
3.Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
4.The hinge connection,can be opened naturally.
5.Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.
6.Sliding/modulating The servo motor which fixed with a cam can adjust the consumption for fuel and air.
7.One flange and one insulating seal for boiler fastening.
8.Combustion air intake with air flow adjustment device.
9.Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
10.Flame presence check by ionisation electrode.
11.three-way electric motor to run fan.
| Modle | Max. Output (Kcal/H) | Power (Kw/H) | Control Method |
| BNG 6 | 50,000 | 30-58 | Single Stage |
| BNG 10 | 80,000 | 50-100 | Single Stage |
| BNG 15 | 129,000 | 50-150 | Single Stage |
| BNG 28 | 240,800 | 80-280 | Single Stage |
| BNG 35 | 309,600 | 90-360 | Single Stage |
| BNG 50 | 516,000 | 170-600 | Single Stage |
| BNG 60 | 636,400 | 250-740 | Single Stage |
| BNG 85 | 731,000 | 280-850 | Single Stage |
| BNG 35 P | 309,600 | 90-360 | Two Stage |
| BNG 50 P | 516,000 | 170-600 | Two Stage |
| BNG 60 P | 636,400 | 250-740 | Two Stage |
| BNG 85 P | 731,000 | 280-850 | Two Stage |
| BNG 120 P | 1,032,000 | 350-1200 | Two Stage |
| BNG 150 P | 1,290,000 | 400-1500 | Two Stage |
| BNG 210 P | 1,720,000 | 490-2000 | Two Stage |
| BNG 250 P | 2,150,000 | 500-2500 | Two Stage |
| BNG 300 FC | 2,562,800 | 660-2980 | Modulating |
| BNG 350 FC | 3,010,000 | 920-3500 | Modulating |
| BNG 400 FC | 3,397,000 | 400-3950 | Modulating |
| BNG 600 FC | 4,644,000 | 800-5400 | Modulating |
1. How to choose suitable burner for myself?
Usually according to combustion output capacity. You can provide relevant parameters of combustion output such as:
104xkcal/h
kW/h
m³/h (for gas)
Kg/h (for oil)
Then we will recommend the model which is most suitable for you, as the combustion output you provide.
2. What is included in the burner purchased? Do I need to purchase additional accessories?
The burner you buy usually contains the burner body, fan part, electric control part, and valve combination. Generally speaking, you do not need to purchase additional accessories. Therefore, you only need to provide fuel, such as gas source, oil, and the required power supply. Remarks: According to your needs, you can choose whether you need to buy a temperature controller.
3. What parts of the burner are wearing parts?
Gas series: ignition needle, fire detection needle, high voltage cable, gas filter. Oil series: solenoid valves, oil pumps, ignition needles, oil sparying nozzles, filters, usually greatly affected by the purity of the oil.
4. How long is the burner warranty?
According to the standard, one year warranty. The warranty period of some electrical appliances is in accordance with the quality assurance regulations of electrical appliances manufacturers.
5.Can the burner burn two fuels at the same time?
It is not possible to burn at the same time, but it can be switched using a dual-material burner, burning two different fuels at different times.
6. What parts of the burner are wearing parts?
Gas series: ignition needle, fire detection needle, high voltage cable, gas filter.
Oil series: solenoid valves, oil pumps, ignition needles, oil sparying nozzles, filters, usually greatly affected by the purity of the oil.
