Special reinforcement makes the trailer more durable.
- Product Details
- {{item.text}}
Quick Details
-
Size:
-
12500mm*2500mm*1580mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-

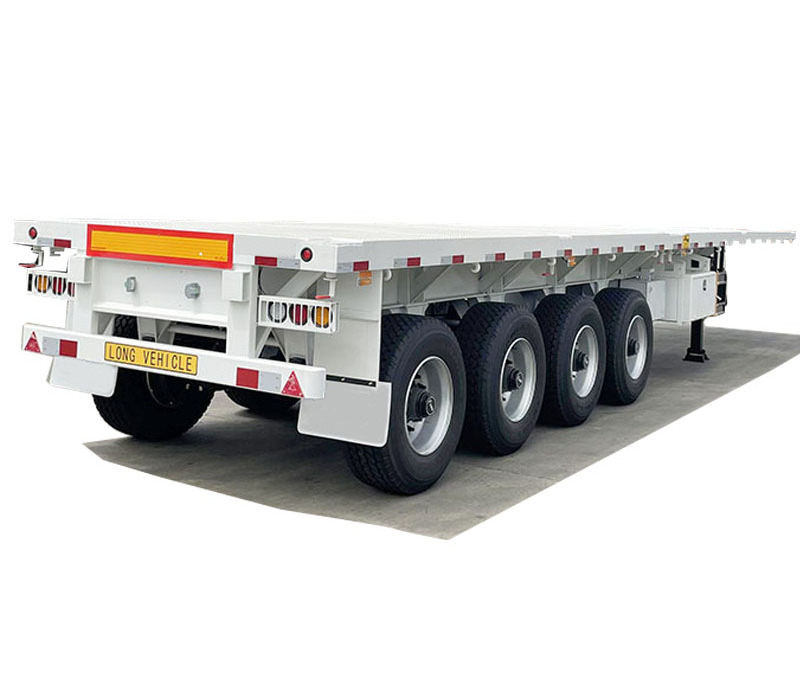

Flatbed Semi Trailer
-
Axle:
-
2/3/4 Axle
-
Function:
-
Transport 20ft 40ft Container
-
Suspension:
-
Mechanical Suspension
-
Tire:
-
12R22.5
-
Landing Gear:
-
JOST/FUWA/Yahua Brand 28T
-
Color:
-
Customers Optional
-
King pin:
-
2"(50mm)or3.5"(90mm)
-
Brake System:
-
WABCO
-
Axle Brand:
-
FUWA/BPW/leitewei
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
>30000 kg
-
Brand Name:
-
Leiteweri
-
Size:
-
12500mm*2500mm*1580mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Flatbed Semi Trailer
-
Axle:
-
2/3/4 Axle
-
Function:
-
Transport 20ft 40ft Container
-
Suspension:
-
Mechanical Suspension
-
Tire:
-
12R22.5
-
Landing Gear:
-
JOST/FUWA/Yahua Brand 28T
-
Color:
-
Customers Optional
-
King pin:
-
2"(50mm)or3.5"(90mm)
-
Brake System:
-
WABCO
-
Axle Brand:
-
FUWA/BPW/leitewei
Product Description
Can be customized according to the needs of various trailers
Factory direct sales, big discount.
Specification
|
Type
|
Flat semi-trailer
|
|
|
||
|
Specifications
|
Loading capacity
|
Axle
|
Number of tires
|
||
|
12500mm(size can be customized)
|
20/40/45/48/53ft 20-30 ton
|
2 Axle
|
8
|
||
|
|
40/45/48/53ft 30-60ton
|
3 Axle
|
12
|
||
|
|
40/45/48/53ft 60-80 ton
|
4 Axle
|
16
|
||
|
|
40/45/48/53ft 100 ton
|
5 Axle
|
20
|
||
|
Dimensions(LxWxH)
|
6500 -16000mm x 2500 x 1550mm Extender can be added
|
|
|
|
|
|
Axle and Brand
|
3 axle,13T Leitewei , (2/4 axle,fuhua/BPW to choose)
|
|
|
|
|
|
Tire brand
|
12r22. 5 295/80r22. 5 13r22. 5 11r22. 5 and other models are available (Chengshan, Chaoyang and other 3-Pack tires)
|
|
|
|
|
|
Axle spacing
|
1310mm
|
|
|
|
|
|
Tare weight
|
4tons to 8 tons
|
|
|
|
|
|
Rims
|
8.5-20, 9.0-20
|
|
|
|
|
|
Brake System
|
Double line pneumatic braking system with WABCO emergency relay valve
|
|
|
|
|
|
Plate spring
|
Ten pieces 13mm
|
|
|
|
|
|
Suspension System
|
Heavy machinery suspension / air suspension
|
|
|
|
|
|
Main Beam
|
Height 500mm Q345 carbon steel,thickness 10mm(height 530 550 580 Optional)
|
|
|
|
|
|
Side beam
|
16*Channel (20/30 *Channe lOptional)
|
|
|
|
|
|
Up and down the wing
|
Upper16mm,lower18mm Middle web10mm
|
|
|
|
|
|
Container twist lock
|
4/8/12 Optional
|
|
|
|
|
|
Kingpin
|
2' or 3.5' interchangeable,JOST brand(50.mm-90mm interchangeable)
|
|
|
|
|
|
Landing Gear
|
28 Tons ,Two speed manual (Yost or fuhua Can be choose)
|
|
|
|
|
|
Electrical System
|
1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
|
|
|
|
|
|
Lights and Reflectors
|
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
|
|
|
|
|
|
Painting
|
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will
be available |
|
|
|
|
|
Tool Box
|
One tool box with a set of standard trailer tools
|
|
|
|
|
|
Spare Tyre Carrier
|
One piece or two pieces
|
|
|
|
|
|
Packing
|
Polish with wax before shipping
|
|
|
|
|
|
Color
|
All colors can be customized
|
|
|
|
|
Packing & Delivery
1.The trailer is waxed before it is packed to prevent seawater from corroding the trailer surface.
2.We will choose the most suitable transportation method for customers and reduce the transportation costs of customers.
2.We will choose the most suitable transportation method for customers and reduce the transportation costs of customers.
