Quick Details
-
Brand Name:
-
ITC
-
Model Number:
-
TS-0203A
-
Model:
-
TS-0203A
-
Microphone Frequency Response:
-
80Hz~16KHz
-
Sensitivity:
-
-34±2dB(0dB=1V/Pa,at 1KHz)
-
SNR:
-
> 80dB
-
Maximum Power Consumption:
-
5.5W
-
Headset Load:
-
32Ω
-
Headset Volume:
-
40mW maximum
-
Headphone Output Interface:
-
3.5 mm mono socket
-
Sign-in:
-
Key sign-in, IC card sign-in
-
Screen:
-
4.3-inch color screen
Quick Details
-
Type:
-
Audio Conference System, Video Conference System
-
Function:
-
Voting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ITC
-
Model Number:
-
TS-0203A
-
Model:
-
TS-0203A
-
Microphone Frequency Response:
-
80Hz~16KHz
-
Sensitivity:
-
-34±2dB(0dB=1V/Pa,at 1KHz)
-
SNR:
-
> 80dB
-
Maximum Power Consumption:
-
5.5W
-
Headset Load:
-
32Ω
-
Headset Volume:
-
40mW maximum
-
Headphone Output Interface:
-
3.5 mm mono socket
-
Sign-in:
-
Key sign-in, IC card sign-in
-
Screen:
-
4.3-inch color screen

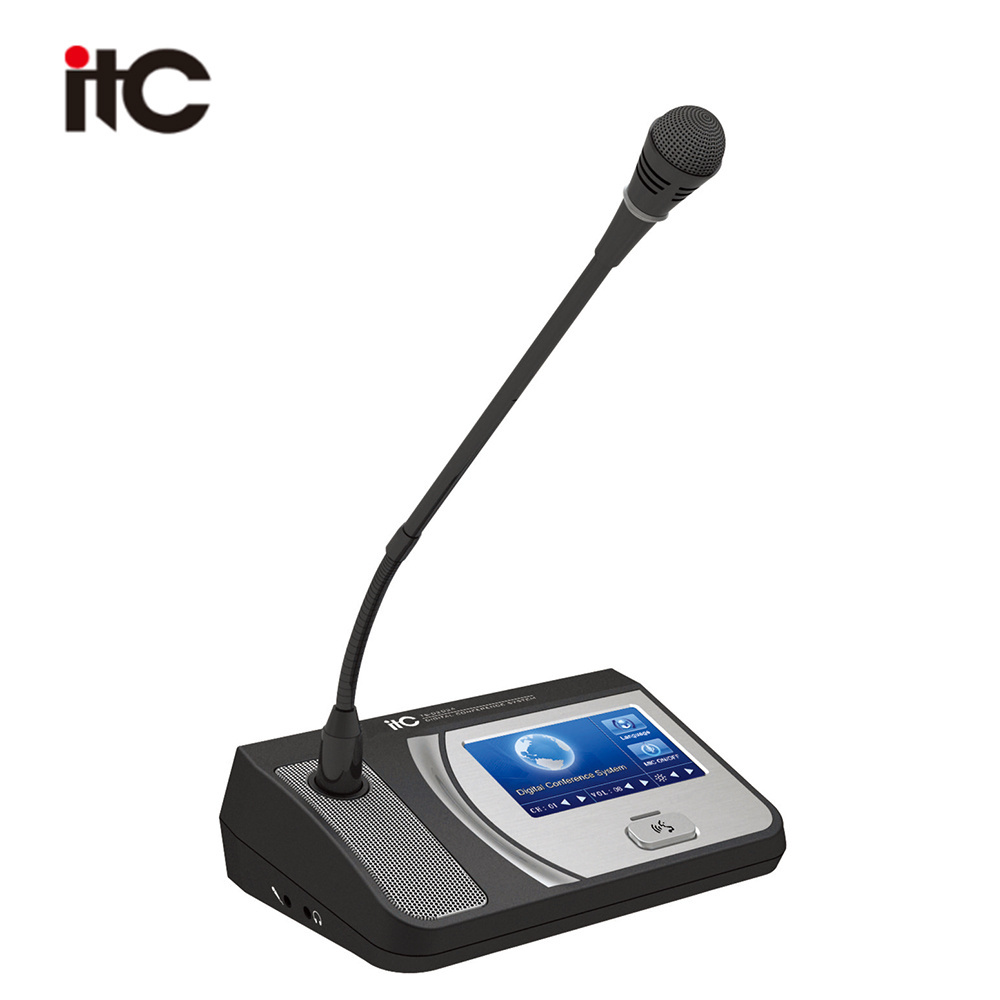

ITC professional conference room sound system 8 channel wireless conference microphone system condenser gooseneck microphone
Digital Conference System Features
Embedded software: hand in hand conference delegate embedded control software V1.0
1. With the fire alarm linkage trigger interface, fire alarm information synchronization unit display
2. Support CobraNet protocol for long distance transmission of audio
3. Conference host standard TCP/IP communication protocol, support wireless touch screen, the Android system control computer/mobile phone
Microphone Features
* Support timekeeping of speech (charged according to speech time).
* Delegate unit has applied for speech function, the chairman unit can approve the applicant.
* Internal feedback inhibition function , can effectively prevent the noise.
* The Microphone has the voice control function , can intelligent turn on the microphone.
* 5 Section EQ regulating function , different sound effects can be adjusted according to the characteristics of the speaker's voice, to achieve perfect effect.
* The chairman has the priority function, can turn off the Microphone of delegate units during speech.
* 4.3 inch TFT true color touch screen, simple operation, friendly use function.
* With 100M network transmission to realize hand in hand cascade, Sound quality will not have any effect in long distance transmission.
* With functions of IC CARDS signed in can show participants' unique characteristics.
* Support the vote, election, rating function, chairman unit can set vote, check-in. can do data statistics without PC.
* With the function of electronic table stands, with full view large LCD to shows the person's name, can be quickly update the display information through PC.
* Can choose receive 31 + 1 channel language.
* The microphone button design adopts advanced P + R buttons design, to ensure the venue without tapping sound during operation.
Specification
|
Model |
TS-0203 |
TS-0203A |
|
Microphone Types |
Heart-shaped directivity electret |
Heart-shaped directivity electret |
|
Microphone Frequency Response |
100 Hz ~ 16 KHZ |
100 Hz ~ 16 KHZ |
|
Input Impedance |
1KΩ |
1KΩ |
|
Sensitivity |
- 46 dBV/Pa |
- 46 dBV/Pa |
|
SNR |
> 80dB |
> 80dB |
|
THD |
< 0.1% |
< 0.1% |
|
Maximum Power Consumption |
5W |
5W |
|
Headset Load |
32Ω |
32Ω |
|
Headset Volume |
Maximum 40 mW |
Maximum 40 mW |
|
Headphone Output Interface |
3.5 mm mono socket |
3.5 mm mono socket |
|
Connection Way |
Special cable core (6 core) |
Special cable core (6 core) |
|
Following Specification |
IEC 60914 |
IEC 60914 |
