Quick Details
-
Hose Inner Diameter:
-
38 mm
-
Air Consumption:
-
6m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GAODETEC
-
Voltage:
-
220v 380v 440v 660v
-
Power:
-
4kw
-
Dimension(L*W*H):
-
1300x750x1330mm
-
Weight:
-
550 kg
-
output:
-
1-3m3/h
-
type:
-
refractory shotcrete gunning machine
-
color:
-
customized
-
operation air pressure:
-
0.2-0.4Mpa
-
rotor speed:
-
13.2r/min
-
other requirement:
-
customized
-
market:
-
global
-
nozzle:
-
refractory gunning nozzle
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Max. Conveying Distance:
-
100m
-
Max Aggregate Size:
-
10mm
-
Hose Inner Diameter:
-
38 mm
-
Air Consumption:
-
6m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GAODETEC
-
Voltage:
-
220v 380v 440v 660v
-
Power:
-
4kw
-
Dimension(L*W*H):
-
1300x750x1330mm
-
Weight:
-
550 kg
-
output:
-
1-3m3/h
-
type:
-
refractory shotcrete gunning machine
-
color:
-
customized
-
operation air pressure:
-
0.2-0.4Mpa
-
rotor speed:
-
13.2r/min
-
other requirement:
-
customized
-
market:
-
global
-
nozzle:
-
refractory gunning nozzle
Products Description

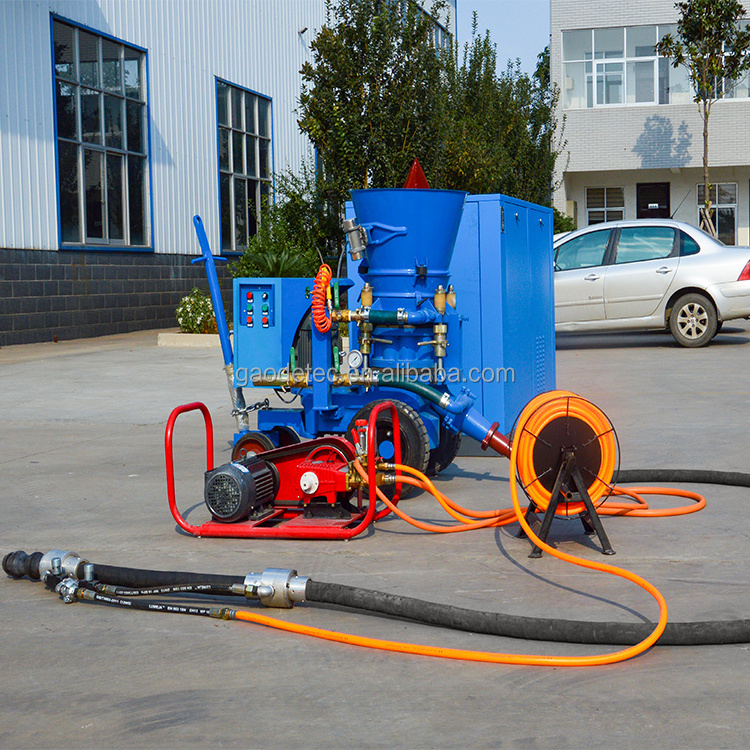

Refractory gunning machine
Different with common dry mix shotcrete machine, our GZ-3ER refractory gunning machine equipped with
ABB frequency converter
and
high pressure water pump
. ABB frequency converter is used for achieving variable output. High pressure water pump provide pressure water for nozzle assy, ensure that materials is mixed even with water.
1. Specifically designed for spraying refractory materials, castable.
2.
1.5m3/h, 3m3/h, 5m3/h, 6m3/h, 7m3/h, 9m3/h
for option.
3. Electric or air motor driven for option.
4. Equipped with ABB frequency converter, and high-pressure water pump.
5. We can also customize it according to your requirements.
|
|
GZ-3ER
|
GZ-3AR
|
GZ-5ER
|
GZ-5AR
|
|||
|
Rated Output
|
1-3m3/h (2-6 tons/h)
|
|
1-5m3/h (2-10 tons/h)
|
1-5m3/h(2-10Ton/h)
|
|||
|
Max. Conveying Distance
|
200m
|
|
200m
|
100m
|
|||
|
Max. Aggregate Size
|
10mm
|
15mm
|
|
|
|||
|
Conveying Hose ID
|
38mm
|
51mm
|
|
|
|||
|
Operating Air Pressure
|
0.2-0.4MPa
|
|
|
|
|||
|
Air Consumption
|
5-6m3/min
|
10-11m3/min
|
8~9m3/min
|
15-16m3/min
|
|||
|
Drive Type
|
Electric
|
Air motor
|
Electric
|
Air motor
|
|||
|
Motor Power
|
4kw
|
/
|
5.5kw
|
/
|
|||
|
Rotor Speed
|
0-13.2r/min
|
|
|
0-13.2r/min
|
|||
Details Images
Application
Refractory gunning machine application
Our refractory gunning machine
is specially designed for spraying refractory materials, castable in refractory repair installing project. Such as
Aluminum Furnace Linings, Industrial Furnace Repair, Heat Treating Furnaces, Reheat Furnaces, Rotary Kiln Linings, Tunnel and Shuttle KiIns, Dryer and Combustion Chambers, Refractory Boiler Settings, Incinerator Rebuilds, Stack and Duct Linings, Ladle and Crucible Linings.
