Quick Details
-
Knitting Method:
-
knitting
-
Computerized:
-
Yes
-
Place of Origin:
-
Zhejiang, China
-
Title:
-
silk stocking socks pantyhose knitting machine factory price
Quick Details
-
Type:
-
Jacquard
-
Production Capacity:
-
300 pairs per day
-
Knitting Style:
-
Flat
-
Knitting Method:
-
knitting
-
Computerized:
-
Yes
-
Place of Origin:
-
Zhejiang, China
-
Title:
-
silk stocking socks pantyhose knitting machine factory price

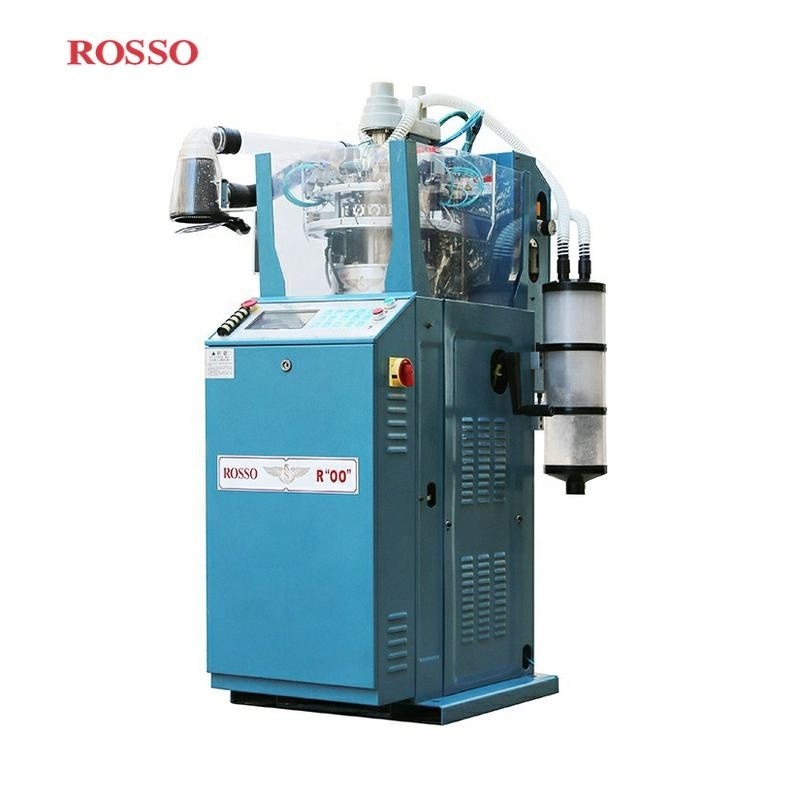

New Jacquard silk stocking socks pantyhose knitting machine factory price
| PANTYHOSE MACHINE SERIES | ||||
| Modle | Cylinder DIA | Needles | Parameters | Application |
| RS-40E7 | 4 inch | 288N-480N |
Max speed for plain :800RPM
Max speed for jacquard 600RPM |
Besides the same production out put as plain
|
|
RS-45E5
RS-45E7 RS-45E9 |
4.5 inch | 288N-512N |
Max speed for plain :700RPM
Max speed for jacquard 500RPM |
|
|
RS-50E5
RS-50E7 RS-50E9 |
5 inch | 320N-560N |
Max speed for plain :550RPM
Max speed for jacquard 450RPM |
|
| Click to get latest price now! | ||||
|
Configurations |
||
| Part and components | Standard | Optional |
| Yarn feeding device | Half of the sites function | Moving shuttles and half of the sites function |
| Stepping Motor | Two sinker motors | |
| Actuator |
Four sixteen-step piezoelectric Ceramic actuator(WAC from Japan) |
Four sixteen-step piezoelectric Ceramic actuator(Siemens from Germany) |
| Solenoid valve | Solenoid valve with big diameter at 15mm | Solenoid valve with small diameter at 10mm |
| Scissors of disc | Serration | Coarse teeth |
| Latch opener | 1 set | 2sets |
| Naked spandex conveyor | 1set | 2sets |
| Yarn Broken Sensor | 9pcs | More than nine |
Main Feature And Function :
1.They can make plain,rib,mesh ,tuck stitch and more,meanwhile cross stripes,vertical stripes and other regular patterns could be weaved by realigning the jacquard needles.
2.They are widely used for producing silk stockings,pantyhose,leggings which is made of nylon yarn,silk,quartz fiber,core-spun yarn,chinlon
yarn,velvet,modal,lycra,thatta,soybean fiber,bamboo fiber,combed cotton and etc..
3.The thickness of fabric is from 8D to 300D,and the gram per square meter is commonly from 15g to 300g.
