Quick Details
-
Input Voltage:
-
176-264Vac (220V)
-
Dimensions:
-
300*70*42.5mm
-
Net Weight:
-
0.59kg
-
LED Brand:
-
Osr&m
-
LEDs Qty:
-
38 pieces
-
Output Power:
-
30W, 40 Watts
-
Luminous Efficiency:
-
130lm/W, 120lm/W
-
Lighting Distribution Curve:
-
90 degree, 60 degree, horizontal or vertical equal brightness
-
IP Grade:
-
IP68 ultra waterproof, explosion-proof
-
Features:
-
Driverless model design, AC input, used for street light etc.
Quick Details
-
Operating Temperature(℃):
-
-40 - 50
-
Storage Temperature(℃):
-
-20 - 40
-
Place of Origin:
-
Zhejiang, China
-
Input Voltage:
-
176-264Vac (220V)
-
Dimensions:
-
300*70*42.5mm
-
Net Weight:
-
0.59kg
-
LED Brand:
-
Osr&m
-
LEDs Qty:
-
38 pieces
-
Output Power:
-
30W, 40 Watts
-
Luminous Efficiency:
-
130lm/W, 120lm/W
-
Lighting Distribution Curve:
-
90 degree, 60 degree, horizontal or vertical equal brightness
-
IP Grade:
-
IP68 ultra waterproof, explosion-proof
-
Features:
-
Driverless model design, AC input, used for street light etc.

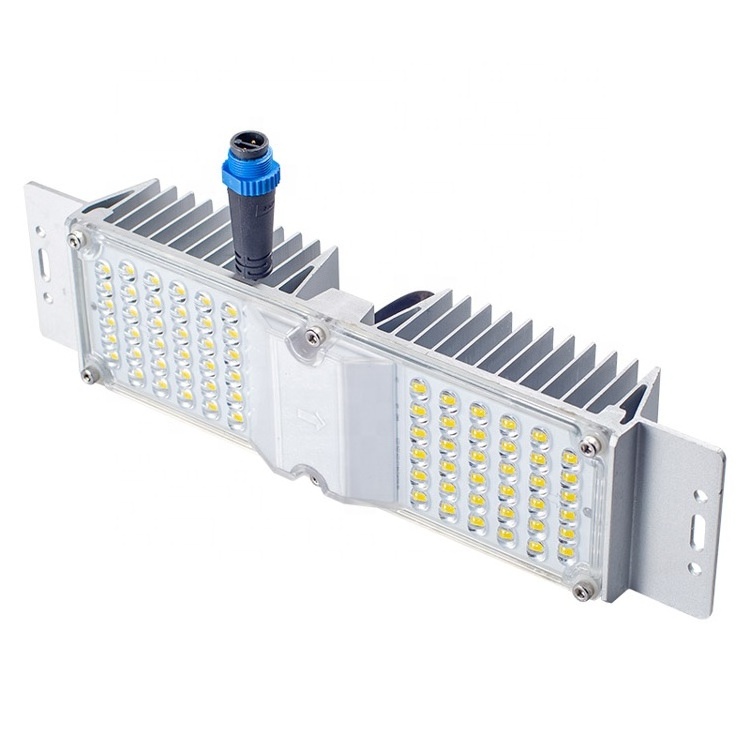

MBT 30W 176-264Vac (220V) AC Input Driverless LED Street Light Module SMD LED Light Engine Industrial & Commercial Lighting
Features:
1) Original Bridgelux LED chips, AC input driverless design;
2) Super-high luminous efficiency as 120-130lm/W, extra energy saving product;
3) 300*70*42.5mm CSA standard size, which can adapt to many light housings;
4) 3 0W, 40W each piece, combination use for full power solutions;
5) Suitable for street lighting, tunnel lighting, gas station light etc.;
6) >50,000hrs lifetime, 3 years warranty.
| LED Light Source | Bridgelux LEDs, 40pcs & 50pcs |
|
| Output Power | 30W, 40W | |
| Luminous Flux | 3900lm, 4800lm | |
|
Luminous Efficiency
|
130lm/W, 120lm/W |
|
| Input Voltage Range | 176-264Vac | |
| Lighting Distributions |
Horizontal & Vertical equal brightness, 90°, 60° |
|
| CCT | 3000K, 4000K, 5000K, 6000K, 6500K | |
| IP Class | IP68 | |
| Product Fixture Size | 300*70*42.5mm, 590g | |
| Warranty |
3 years |
Contact Chela Chen for more details and professional solutions!
