Quick Details
-
Light Diameter:
-
200mm/ 300mm /400mm
-
Rated Power:
-
300mm<10w 400mm<15w
-
Voltage:
-
AC185V-265V 60HZ/50HZ/DC12V/DC24V
-
Light Source:
-
Bright Led Chip
-
Environment Temperature:
-
-40℃~+80℃
-
Light Source Life:
-
≥50000 hours
-
Reliability:
-
MTBF≥10000 hours
-
Maintainability:
-
MTTR≤0.5 hours
-
Material:
-
PC/Aluminum
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DALU
-
Product Name:
-

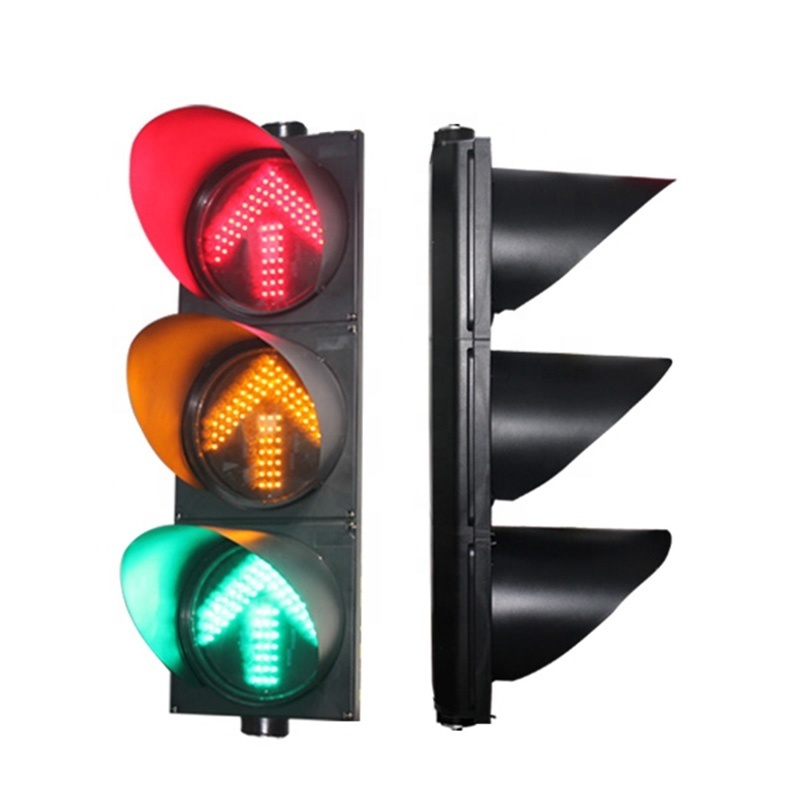

LED directional arrow light
-
Light Diameter:
-
200mm/ 300mm /400mm
-
Rated Power:
-
300mm<10w 400mm<15w
-
Voltage:
-
AC185V-265V 60HZ/50HZ/DC12V/DC24V
-
Light Source:
-
Bright Led Chip
-
Environment Temperature:
-
-40℃~+80℃
-
Light Source Life:
-
≥50000 hours
-
Reliability:
-
MTBF≥10000 hours
-
Maintainability:
-
MTTR≤0.5 hours
-
Material:
-
PC/Aluminum
Product features:
1. Low power consumption
2. New structure and beautiful appearance
3. W ide visual angle
4. Long service life
5. Multiple sealing design and waterproof
6. The lens adopts Fresnel small lens secondary light distribution design, UV protection , high transmittance, increase light spot, can maximize to meet the requirements of light intensity and Angle of view.
7. Long view distance
8. Comply with GB/14887-2011 international standards
Main parameters:
1. Red arrow traffic light : single brightness: 3000~5000, wavelength: 630±5nm, left and right up and down Angle of view: 30°, power: ≤20W.
2. Yellow arrow traffic light: single brightness: 3000~5000, wavelength: 590±5nm, left and right Angle of view: 30°, power: ≤20W
3. Green arrow traffic light : single brightness: 7000~10000, wavelength: 505±5nm, left and right up and down Angle of view: 30°, power: ≤20W.
4. Ambient temperature: -40℃~+80℃
5. Working voltage: AC185V-265V 60HZ/50HZ
6. Light body material: PC or die-cast aluminum
7.IP level: IP55
8. Visual distance :≥500m
