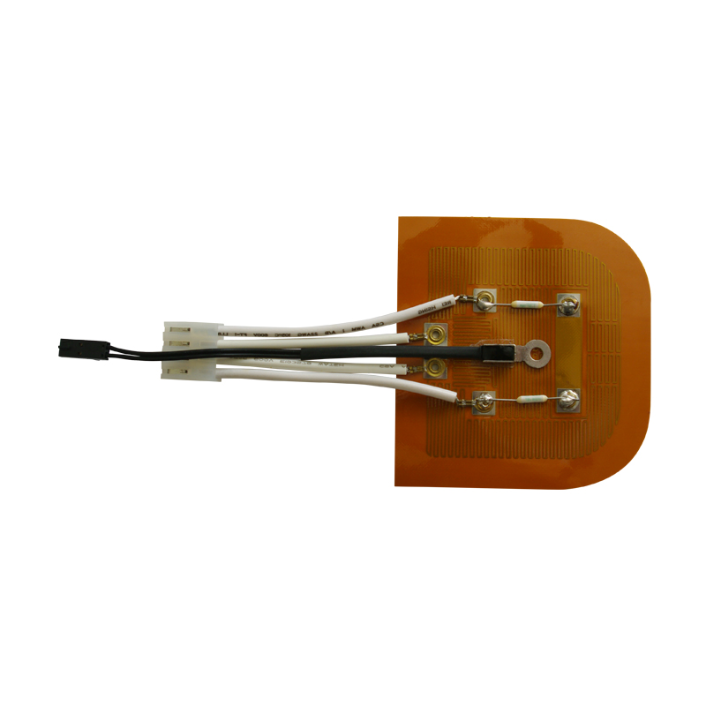

High Quality Electrical Heating Element with Temperature Control for Commercial

High Quality Electrical Heating Element with Temperature Control for Commercial

FOB Reference Price: Get Latest Price

≥1 Pieces

US $15

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power Source:: Electric

Place of Origin:: Taiwan, China

Brand Name:: Heatact Super Conductive Heat-Tech Co., Ltd.

Model Number:: YT-135

Quick Details

After-sales Service Provided:: None

Warranty:: None

Application:: Commercial, Household

Power Source:: Electric

Place of Origin:: Taiwan, China

Brand Name:: Heatact Super Conductive Heat-Tech Co., Ltd.

Model Number:: YT-135

High Quality Electrical Heating Element with Temperature Control for Commercial

Heater properties:	Insulation materials: 0.002 inch Kapton (Polyimide) with 0.001 inch FEP adhesive
Temperature range:	Insulation materials: -100 to 200 ℃ (-212 to 392 ℉ )
Heater flexibility:	Insulation materials: Better 0.03 inches (0.75 mm) minimum bend radius
Maximum watts per square inch in still air at 25 ℃(77 ℉):	Insulation materials: 1inch²/7 w
Maximum thickness over element:	Insulation materials: 0.010 inches (0.25 mm)
Installation methods:	Insulation materials: Shrink bands, PSA, Epoxy film
Application description:	Kapton(Polyimide) is special for its stability in vacuum & solvent resistance Often used in medical & aerospace applications

Comparison

Insulation Materials
Heater Properties	Kapton (Polyimide)	Silicon Rubber	Mica	Polyester	Transparent
Features	0.002 "Kapton requires a 0.001" FEP adhesive	0.002 "Kapton requires a 0.001" FEP adhesive	Thickness of 0.1 mm to 1 mm	0.005 "Polyester with 0.001 " adhesive	0.005 "Polyester with 0.001 " adhesive
Description	A transparent, amber color Polyi-miele film	The red elastomer on glass fiber base	The color is White or green	Transparent flake	Transparent flake
Temperature Range	-240 to 310℃ (-400 to 590℉)	-200 to 300℃ (-328 to 572℉)	-200 to 1000℃ (-328 to 1832℉)	-25 to 120℃ (-13 to 248℉)	-25 to 120℃ (-13 to 248℉)
Dielectric Strength	1000 VRMS	1000 VRMS	1000 VRMS	1000 VRMS	1000 VRMS
Max. watts per square inch	25℃ 60w / inch²	25℃ 60w / inch²	25℃ 100w / inch²	25℃ 35w / inch²	25℃ 15w / inch²
Application Description	KAPTON is special for its stability in vacuum & solvent resistance, often used in medical & aerospace applications.	Silicon rubber, often vulcanized to a metal part and be used in industrial and commercial applications	Mica has many properties of KAPTON. It usually used on cup warmer , iron and any other high temperature product.	POLYESTER has many properties of KAPTON and it’s the cheapest one.	Transparent films that cand be used for a variety of application, including LCD, touch panel, switch glazing and goggles

Our Categories

Our Advantages

We are a professional manufacturer, develop and manufacture specifically heating elements and, as the first supplier producing heating pads in Taiwan, have many valuable years of experiences in product development. On the Specializing in the manufacture of heaters to be wound in 1979, Yung Tien is the only company producing the heating elements to be wound suitable for the use of car rear-view mirror mist-cleaning, bathroom mirror defogging, quilt warming, refrigerator de-frosting, electronic thermo flask, seat cushion warming, etc. for warming and de-fogging products.
