Quick Details
-
Model Number:
-
20KW 30KW 40KW
-
Output Frequency:
-
34A
-
Size:
-
84mm*226mm*39mm
-
Weight:
-
18KG
-

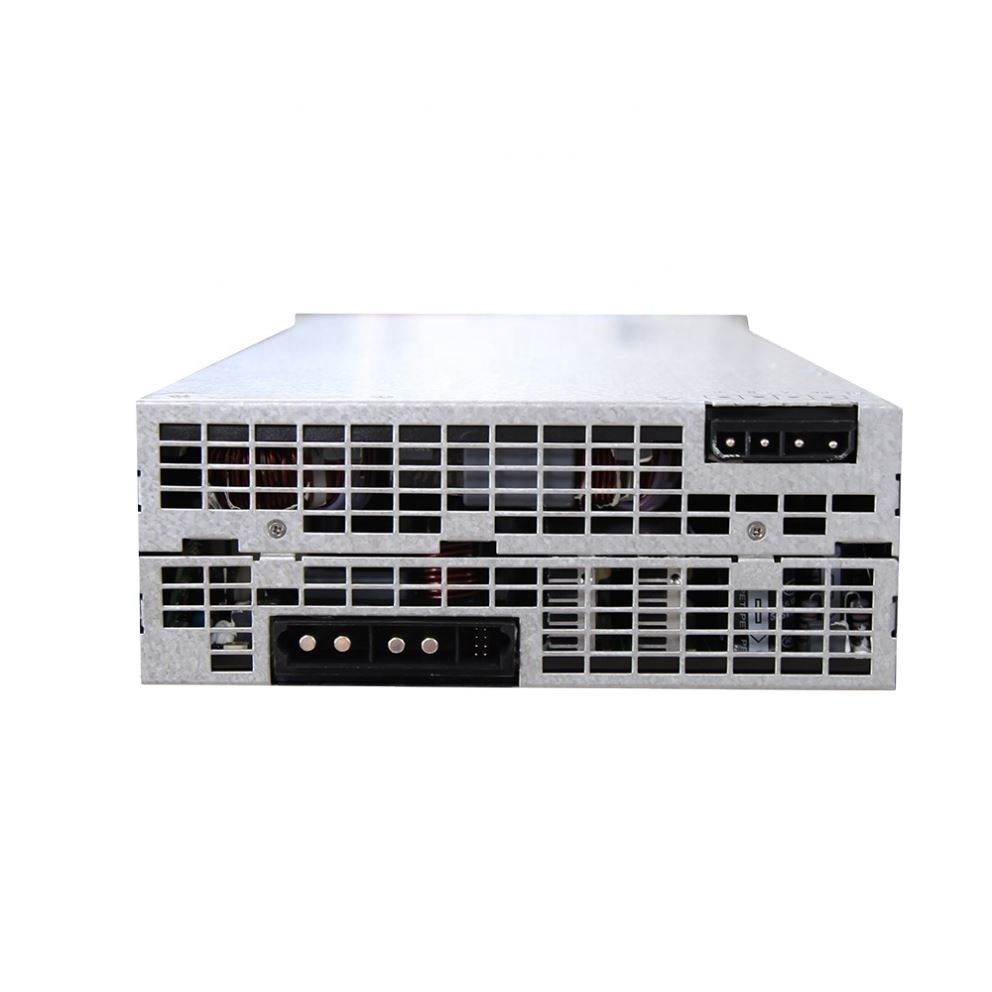

Product name:
-
moudle power
-
Input voltage:
-
Norminal voltage 380VAC; working range 285-475VAC
-
Input power factor:
-
>0.99
-
Input overvoltage protection:
-
495+-5VAC
-
Output rating:
-
20kw
-
Output voltage range:
-
200~1000VDC
-
Output constant power range:
-
Constant output power 20kW with output 250-1000VDC
-
Peak efficiency:
-
>96%
-
Short circuit protection:
-
Self-rewinding protection
Quick Details
-
Output Current:
-
50A
-
Place of Origin:
-
Guangdong, China, China
-
Brand Name:
-
MIDA
-
Model Number:
-
20KW 30KW 40KW
-
Output Frequency:
-
34A
-
Size:
-
84mm*226mm*39mm
-
Weight:
-
18KG
-
Product name:
-
moudle power
-
Input voltage:
-
Norminal voltage 380VAC; working range 285-475VAC
-
Input power factor:
-
>0.99
-
Input overvoltage protection:
-
495+-5VAC
-
Output rating:
-
20kw
-
Output voltage range:
-
200~1000VDC
-
Output constant power range:
-
Constant output power 20kW with output 250-1000VDC
-
Peak efficiency:
-
>96%
-
Short circuit protection:
-
Self-rewinding protection
Product Description
Product Description
Specification
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
Brand Name
|
MIDA
|
|
Product name
|
20kw 30Kw 40Kw 60Kw moudle power
|
|
Current
|
50A DC MAX
|
|
Voltage
|
100~500V DC
|
|
Enclosure Rating
|
IP54
|
|
Operating Temperature:
|
-30°C to +50°C
|
|
Storage Temperature
|
-40°C to +85°C
|
|
Application
|
Automotive
|
|
Warranty
|
12 Months
|
Packing & Delivery
Packing & Delivery
Standrad Export Cartons for 16A 20A 24A 32A Model2 7.2KW type1 IEC62752 MIDA-EVSE-PA32S 5meters Adjustable EV Charger
