Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
5C SENSOR
-
Model:
-
5CFS-SYZ-3
-
Material:
-
SUS304 Stainless steel
-
Product name:
-
water level switch
-
Switching type:
-
NO
-
Installation Method:
-
side mount
-
Medium requirement:
-
water or liquid no damage to the float ball
-
Application:
-
water tank
-
Potting:
-
Epoxy
-
Features:
-
magnetic float sensor
Quick Details
-
Mounting Type:
-
water level switch
-
Description:
-
water level switch, side mounted magnetic float switch level sensor
-
Model Number:
-
5CFS-SYZ-3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
5C SENSOR
-
Model:
-
5CFS-SYZ-3
-
Material:
-
SUS304 Stainless steel
-
Product name:
-
water level switch
-
Switching type:
-
NO
-
Installation Method:
-
side mount
-
Medium requirement:
-
water or liquid no damage to the float ball
-
Application:
-
water tank
-
Potting:
-
Epoxy
-
Features:
-
magnetic float sensor
|

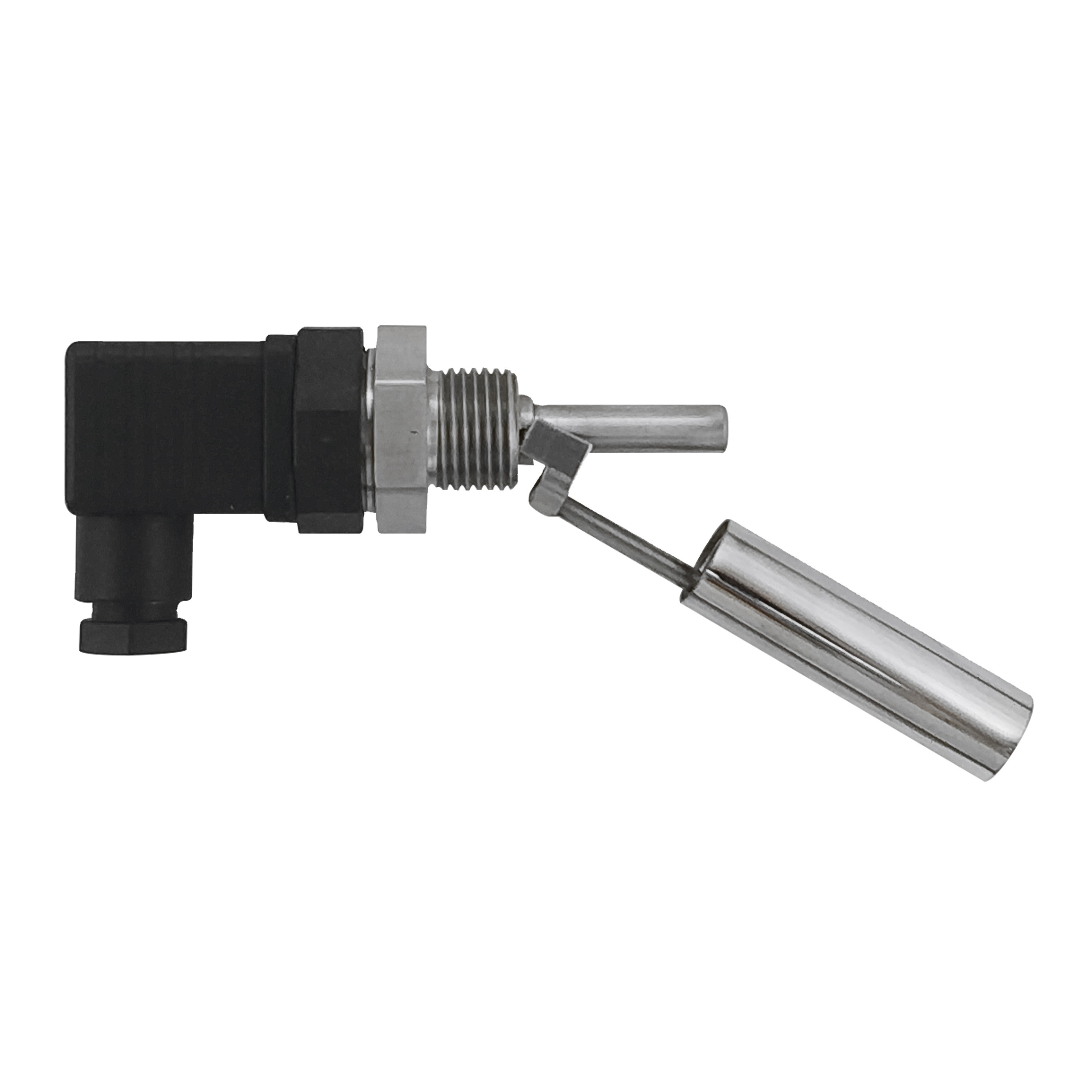

5C SENSOR water level switch float sensor 5CFS-SYZ-3
|
||||
| Model NO. | 5CFS-SYZ-3 | Connetion | Hirschmann connector | |
| Installation | Side | Wire length | NONE | |
| Material | SUS304 steel | Switching Voltage | 110VDC Max. | |
| Switching Type | NO(Normally Open) | Switching Current | 0.5A | |
| Working temperature | -40~120° | Contact rating | 10W | |
|
|
|||
|
1.Float level switch is widely used in tank level auto control system, startup and shutdown the water pump or electric valve on the basis of liquid level. 2.Vertical installation switch can be mounted on the top or bottom of liquid tank; side installation switch can be mounted on the wall of liquid tank. 3.Switching type definition:NO: Normally open,mounted switch on the top of tank, switching ON when float rising . NC: Normally close,mounted switch on the top of tank, switching OFF when float rising. |
||||
|
Mounting&Switching instruction
|
||||
