Quick Details
-
Position:
-
ON-NC
-
Insulation Resistance:
-
100MΩ Min
-
Contact Resistance:
-
50mΩ Max
-
Samples:
-
Free samples
-
Temperature:
-
80℃
-
Certification:
-
ULENEC,INV
-
Service:
-
OEM/ODM
-
MOQ:
-
1000 pieces
-
Lead time:
-
15-20 days
Quick Details
-
Max. Voltage:
-
15A 125VAC / 250VAC
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
iron lever micro switch
-
Position:
-
ON-NC
-
Insulation Resistance:
-
100MΩ Min
-
Contact Resistance:
-
50mΩ Max
-
Samples:
-
Free samples
-
Temperature:
-
80℃
-
Certification:
-
ULENEC,INV
-
Service:
-
OEM/ODM
-
MOQ:
-
1000 pieces
-
Lead time:
-
15-20 days

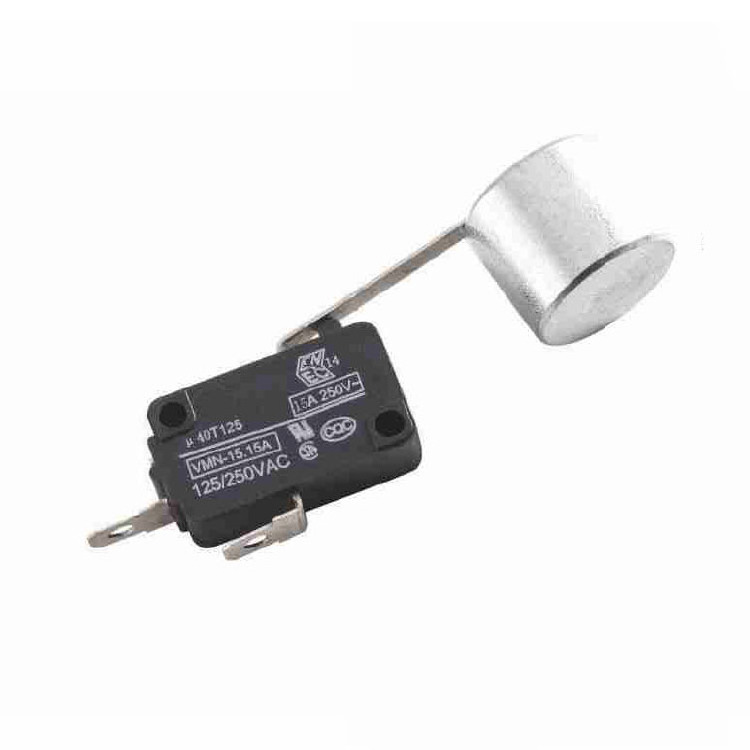

15A 125VAC / 250VAC Tuowei 10000 cycles mechanical life micro switch
Item No.: VMN-15-03-F-39
|
Technical Parameter |
|
|
Electrical Rating |
15 A ~125V.A.C. /250 V.A.C. |
|
HZ |
60/50 |
| Load | Res/ Mot |
| Temp(C) | 125°C |
| Pol/Thr | 1/ M |
| PP/Circuit | A/-- |
| Endur | 10K CYCLES |
| Operation force | 100GF+-30GF |
| Withstand voltage | 1000 V.A.C |
| SPCOA | 24-18AWG UL1015 |
|
Material: |
|
| Housing: PA66 Grade: SABIC | |
| Terminals: Brass Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Contract: Copper | |
| Base: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: SABIC | |
| Apply to: | |
|
Electric Heater, humidifier, Heater, kitchen ventilator and other home appliances
|
|
