Quick Details
-
Imaging mode:
-
B/M
-
Product name:
-
Medical Ultrasound Equipment
-
Application:
-
Ophthamic Optcal
-
Function:
-
Eye Sight Examination
-
Material:
-
Metal Plastic
-
Single prism:
-
5000m
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anjue
-
Model Number:
-
AJ-F52S
-
Imaging mode:
-
B/M
-
Product name:
-
Medical Ultrasound Equipment
-
Application:
-
Ophthamic Optcal
-
Function:
-
Eye Sight Examination
-
Material:
-
Metal Plastic
-
Single prism:
-
5000m

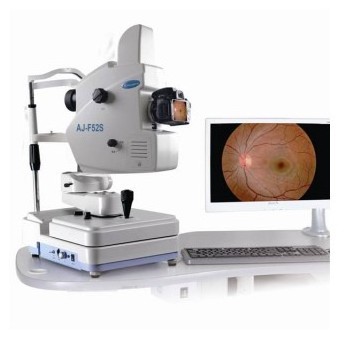

Ophthalmic Automated Digital Eye Fundus Camera Non-mydriatic Faf Ffa Retinal Fundus Imaging
Function:
Non-mydriatic
Auto detected the eye position
Pupil size: 3mm
Illumination source: infrared
Auto /manual focus
Auto adjust flash intensity /illumination intensity according patient pupil size
Five internal fixation lamp/external fixation lamp
Nine internal fixation lamp: option
Image resolution: 10Mega
Fundus fluorescein angiography
Picture FFA image
Video FFA image
Technical Specifications
Working Distance: The distance from cornea is 40mm, Errors: ±2mm
Field of Vision Scope: 45°
Horizontal Angle: ±30 °
Up and down Angle: ±12.5 °
The Size of Outer Ring: φ7.4mm;
The Size of Inner Ring: φ4mm
Filters: Stimulating Filter (red&blue);
Depth of field contraction distance: ≥5mm
Refractive compensation : + 15D
Seat movement scope:
The moving distance between the front and back: 60mm;
The moving distance between right and left: 120mm;
The moving distance between up and down: 30mm.
