Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
aluminium laser welding machine
-
Single Pulse Energy:
-
aluminium laser welding machine
-
Pulse Width:
-
fiber laser welder
-
Wavelength:
-
fiber laser welder welding machine
-
Focal Spot Diameter:
-
fiber laser welder
-
Dimensions:
-
fiber laser welder
-
Weight (KG):
-
200 KG
-
Product name:
-
Laser Welding Machine
-
Function:
-
Metal Part Laser Welding
-
Application:
-
Metal Stainless Steel Laser Welder
-
Laser power:
-
2000W 1500W 3000W (optional)
-
Processing material:
-
Metal Stainless Steel Carbon Steel
-
Feature:
-
Quick Speed High Accuracy
-
Application material:
-
Metal Stainless Steel Aluminum
-
Welding materials:
-
Stainless Steel Carbon Steel Etc( Metal Laser Welding Machine )
-
Model:
-
Automatic Laser Spot Welding Machine
-
Type:
-
6 axis robot arm laser welding machine
Quick Details
-
Max. Output Power:
-
3000w
-
Usage:
-
fiber laser welding machine
-
Laser Source Brand:
-
JPT
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
aluminium laser welding machine
-
Single Pulse Energy:
-
aluminium laser welding machine
-
Pulse Width:
-
fiber laser welder
-
Wavelength:
-
fiber laser welder welding machine
-
Focal Spot Diameter:
-
fiber laser welder
-
Dimensions:
-
fiber laser welder
-
Weight (KG):
-
200 KG
-
Product name:
-
Laser Welding Machine
-
Function:
-
Metal Part Laser Welding
-
Application:
-
Metal Stainless Steel Laser Welder
-
Laser power:
-
2000W 1500W 3000W (optional)
-
Processing material:
-
Metal Stainless Steel Carbon Steel
-
Feature:
-
Quick Speed High Accuracy
-
Application material:
-
Metal Stainless Steel Aluminum
-
Welding materials:
-
Stainless Steel Carbon Steel Etc( Metal Laser Welding Machine )
-
Model:
-
Automatic Laser Spot Welding Machine
-
Type:
-
6 axis robot arm laser welding machine
Product Description
Specification
|
Model
|
iGWL-RW- 1500
|
iGWL-RW- 2000
|
|
iGWL-RW- 3000
|
||||
|
Laser power
|
1500W
|
2000W
|
|
3000W
|
||||
|
Laser wavelength
|
1080±10nm
|
|
|
|
||||
|
Robot
|
Six-axis welding robot
|
|
|
|
||||
|
Maximum load on wrist
|
12KG
|
|
|
|
||||
|
Repositioning accuracy
|
±0.03mm
|
|
|
|
||||
|
Range of motion
|
Lower arm
|
|
J1
|
340º/370º
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
J2
|
235º
|
||||
|
|
|
|
J3
|
455º
|
||||
|
|
Upper arm
|
|
J4
|
380º
|
||||
|
|
|
|
|
|
||||
|
|
|
|
J5
|
380º
|
||||
|
|
|
|
J6
|
900º
|
||||
|
Max speed
|
Lower arm
|
|
J1
|
260º/s
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
J2
|
240º/s
|
||||
|
|
|
|
J3
|
260º/s
|
||||
|
|
Upper arm
|
|
J4
|
430º/s
|
||||
|
|
|
|
|
|
||||
|
|
|
|
J5
|
450º/s
|
||||
|
|
|
|
J6
|
720º/s
|
||||
|
Thickness of welding material
|
≤4mm
|
≤6mm
|
|
≤8mm
|
||||
|
Welding gap requirements
|
≤0.3mm
|
|
|
|
||||
|
Voltage
|
380V±10%
|
|
|
|
||||
|
Total power
|
≤8kw
|
≤10kw
|
|
≤12kw
|
||||
|
Gross weight
|
200KG
|
|
|
|
||||
|
Remarks: Can be customized according to customer requirements
|
|
|
|
|
||||
Details Images

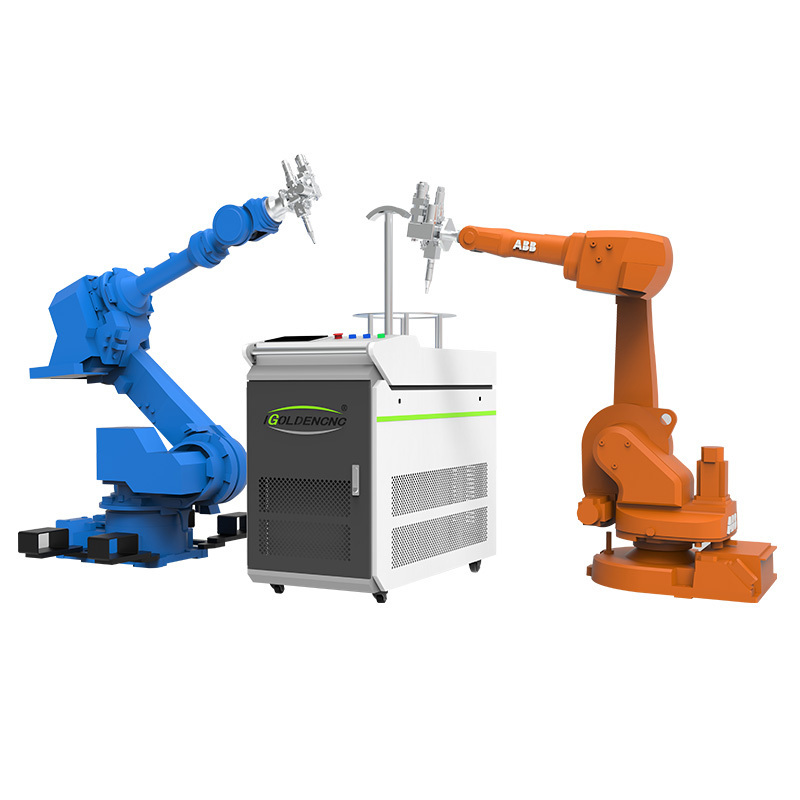

1. The robot has six-axis linkage, high positioning accuracy, large processing range, and easy welding of three-dimensional workpieces.
2. Compared with the traditional argon arc welding, the laser welding speed is increased by 5 to 10 times, and the power consumption and the consumption of consumables are lower, and the welding quality is very stable.
3. The heat affected area of welding is smaller, which can better guarantee the quality of welding products.
4. Robot laser welding has good adaptability to the size and shape of welding materials and welding parts, and can realize automatic control and long-distance welding
2. Compared with the traditional argon arc welding, the laser welding speed is increased by 5 to 10 times, and the power consumption and the consumption of consumables are lower, and the welding quality is very stable.
3. The heat affected area of welding is smaller, which can better guarantee the quality of welding products.
4. Robot laser welding has good adaptability to the size and shape of welding materials and welding parts, and can realize automatic control and long-distance welding
Samples
Suitable for welding of stainless steel, iron sheet, aluminum, copper, alloy, steel, diamond equivalent materials or dissimilar materials, cabinets, kitchens, stair elevators, shelves, ovens, stainless steel doors and windows guardrails, distribution boxes, Stainless steel household and other industries.
