Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
CubeMars
-
Model Number:
-
RI80 V2.0
-
Torque:
-
1.45nm/4.1nm
-

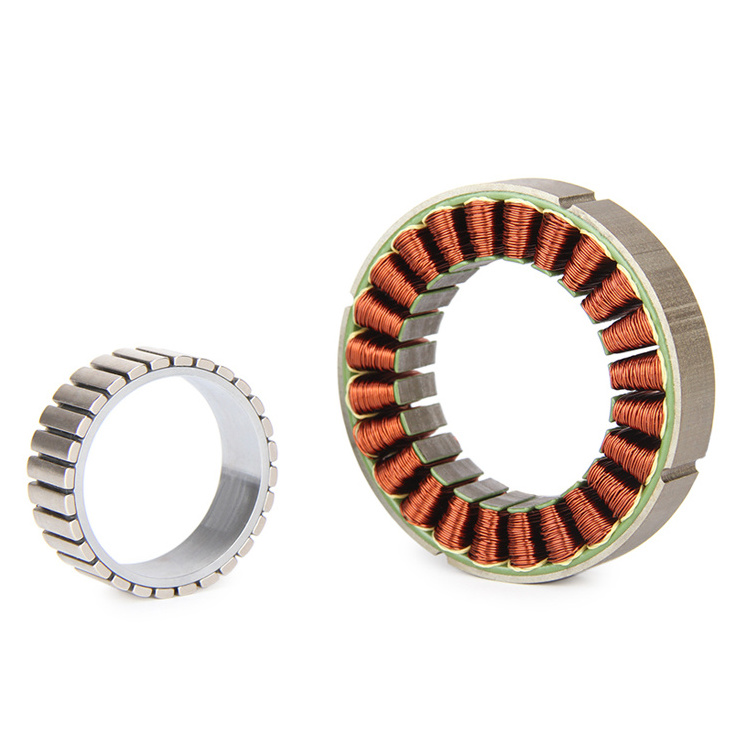

Product name:
-
RI80 V2.0 KV75
-
Peak torque:
-
4.1 Nm
-
Rated torque:
-
1.45Nm
-
Peak current:
-
27.6A
-
Rated current:
-
9.4A
-
Kt:
-
0.155 Nm/A
-
Km:
-
0.2698Nm/W
-
Kv:
-
75 rpm/v
-
Voltage:
-
24V/36V/48v
-
Ke:
-
15.5 V/KRPM
Quick Details
-
Speed(RPM):
-
1480/2220/2960 rpm
-
Continuous Current(A):
-
9.4A/27.6A
-
Efficiency:
-
IE 4
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
CubeMars
-
Model Number:
-
RI80 V2.0
-
Torque:
-
1.45nm/4.1nm
-
Product name:
-
RI80 V2.0 KV75
-
Peak torque:
-
4.1 Nm
-
Rated torque:
-
1.45Nm
-
Peak current:
-
27.6A
-
Rated current:
-
9.4A
-
Kt:
-
0.155 Nm/A
-
Km:
-
0.2698Nm/W
-
Kv:
-
75 rpm/v
-
Voltage:
-
24V/36V/48v
-
Ke:
-
15.5 V/KRPM
|
Model Name
|
RI50
|
RI60
|
RI70
|
RI80
|
RI100
|
|
Motor Type
|
Frameless In-runner motor
|
Frameless In-runner motor
|
Frameless In-runner motor
|
Frameless In-runner motor
|
Frameless In-runner motor
|
|
Weight(g)
|
180.8
|
155.9
|
270.4
|
411.2
|
500
|
|
Voltage(V)
|
24/36/48
|
24/36/48
|
24/36/48
|
24/36/48
|
24/36/48
|
|
Rated Torque(N.m)
|
0.58
|
0.57
|
0.94
|
1.45
|
1.76
|
|
Peak Torque(N.m)
|
1.67
|
1.63
|
2.68
|
4.1
|
4.95
|
|
Max Speed@Rated Torque(Rpm)
|
1365/2240/3020
|
1610/2560/3495
|
1450/2300/3125
|
1280/1980/2805
|
1460/2220/3230
|
|
Rated Current(A)
|
5.3
|
6.7
|
8.4
|
10.4
|
16.9
|
|
Peak Current(A)
|
15.25
|
19.2
|
24
|
29.3
|
47.6
|
|
Kt(N.m/A)
|
0.1095
|
0.085
|
0.1118
|
0.14
|
0.104
|
|
Ke(V/rpm)
|
0.0115
|
0.0089
|
0.0117
|
0.0147
|
0.0109
|
|
Kv(Rpm/v)
|
96
|
124
|
94
|
75
|
101
|
|
Km(Nm/√w)
|
0.0835
|
0.0812
|
0.1571
|
0.2406
|
0.2664
|
|
Pole-paors
|
7
|
14
|
14
|
7
|
14
|
|
Phase to Phase resistance(mΩ)
|
1420
|
900
|
418
|
280
|
126
|
|
Phase to Phase Inductance(uH)
|
1500
|
877.5
|
622.7
|
988.3
|
366.7
|
|
OD(mm)
|
54
|
60
|
76
|
85
|
104
|
|
ID(mm)
|
22
|
30
|
38
|
40.5
|
45
|
|
Max Torque Weight Ratio(N.m/kg)
|
9.24
|
10.46
|
9.91
|
9.97
|
9.9
|
