Quick Details
-
Rated Voltage:
-
110/220 V
-
Rated Current:
-
8.3A
-
Speed:
-
3000/3600rpm
-
Frequency:
-
50/60HZ
-
Engine type:
-
air-cooled,2-stroke, Single cylinder,gasoline engine
-
DC output:
-
DC12V 8.3A
-
Excitation mode:
-
Capacitor
-
Quality control:
-
CE/ISO 9001
-
Starting system:
-
Recoil start
-
Cubic cc.:
-
63CC
-
Max.outpur(3600rpm):
-
1.5HP
-
Color:
-
Green
-
Product name:
-
Portable Gasoline Generator
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
RAISE
-
Model Number:
-
RZ950CX
-
Rated Voltage:
-
110/220 V
-
Rated Current:
-
8.3A
-
Speed:
-
3000/3600rpm
-
Frequency:
-
50/60HZ
-
Engine type:
-
air-cooled,2-stroke, Single cylinder,gasoline engine
-
DC output:
-
DC12V 8.3A
-
Excitation mode:
-
Capacitor
-
Quality control:
-
CE/ISO 9001
-
Starting system:
-
Recoil start
-
Cubic cc.:
-
63CC
-
Max.outpur(3600rpm):
-
1.5HP
-
Color:
-
Green
-
Product name:
-
Portable Gasoline Generator
-
Certification:
-
CE
Specifications:
1.air-cooled gasoline generator set
2.time meter
3. small wheels and 2-Wheel andhandle
4.single phase and 2 stroke
Air-cooled gasoline generator set technical parameters
| Model | RZ950CX | RZ1200CX | ||
| Generator | Nominal power | kW | 0.65 | 0.85 |
| Max power : | kW | 0.7 | 0.9 | |
| Voltage: | V | 100/110/115/120/200/220/230/240 | ||
| Frequency: | Hz | 50/60 | 50/60 | |
| Power factor: | Cosfi | 1 | 1 | |
| Fuel tank capacity/Continuos working time | L/hr. | 4/8 | 4/8 | |
| Voltage system regulation: | Capacitor | Capacitor | ||
| Structure type | portable | |||
| Engine | Model: | RZIE45F | RZIE47F | |
| Engine type | air-cooled , 2-stroke, Single cylinder,gasoline engine | |||
| Cubic cc.: | cc | 63 | 69 | |
| Max.outpur(3600rpm) | HP | 1.5 | 2.0 | |
| Alimentation: | Natural | |||
| Cooling system: | Air cooled | |||
| Starting system: | Recoil start | |||
| Rpm:: | rpm | 3000/3600 | 3000/3600 | |
| Ignition | C . D . I | |||
| Fuel type | 90#automotive unleaded gasoline | |||
| Fuel/oil mixratio | Winter50:1/Summer40:1 | |||
| Optional | DC charger | √ | √ | |
| Volt meter | √ | √ | ||
| Fuel gauge | √ | √ | ||
| Frane | √ | √ | ||
| Dimensions | Packing size ( L×W×H ) | mm | 375×325×330 | 375×325×330 |
| Net/Gross weight | kg | 18/20 | 21/22 | |
| 20FT Qty | 750 | 750 | ||
| 40FT Qty | —— | —— | ||

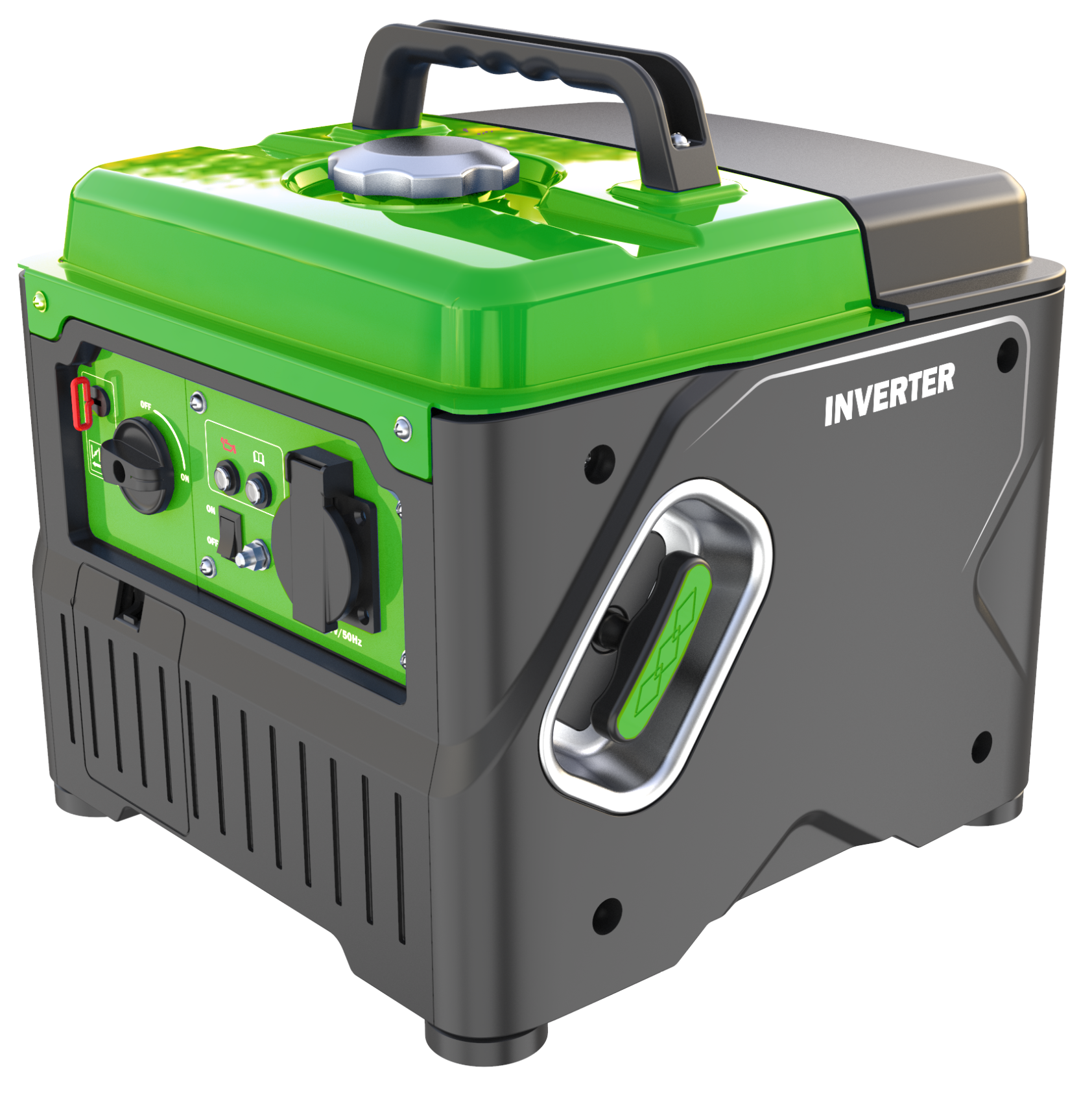

Air cooled gasoline generator pictures
Certificates
About us
Shanghai Raise Power Machinery Co., LTD, one of the top manufacturers specialize in manufacturing General Gasoline, Diesel, Gas Engine and welding Generating Sets, water-cooled generator from 15-2000KW,air-cooled generator from 650W-20KW;self-priming water pump, high-pressure pump, slop water pump.
