Quick Details
-
Dimension(L*W*H):
-
400*325*340mm
-
Weight:
-
360kg
-
Warranty:
-
1 Year
-
Starting system:
-
Electric Start
-
Displacement:
-
2.08-4.37L
-
Ignition System:
-
Compression Ignition
-
Engine type:
-
4-stroke
-
Bore*Stroke:
-
105*125mm
-
Certification:
-
ISO
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
weichai/yangchai
-
Model Number:
-
YZ4105B1
-
Dimension(L*W*H):
-
400*325*340mm
-
Weight:
-
360kg
-
Warranty:
-
1 Year
-
Starting system:
-
Electric Start
-
Displacement:
-
2.08-4.37L
-
Ignition System:
-
Compression Ignition
-
Engine type:
-
4-stroke
-
Bore*Stroke:
-
105*125mm
-
Certification:
-
ISO

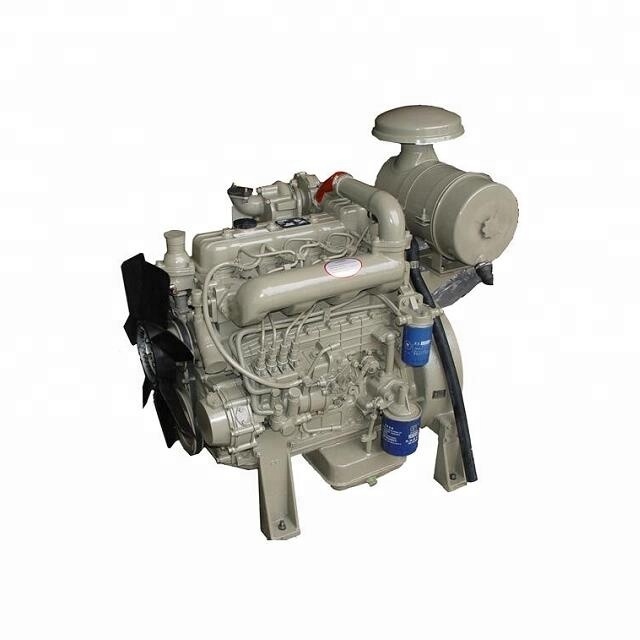

Weichai Water Cooled Small Diesel Engine for Pump Set
Product Platform
Including 4 series engine 85,90,102,105 and 6 engine models.
Application
As power used for 15-75 hp water pump, chemical engineering pump, fire pump, spiral type compressor and so on.
Technical Level
Weichai Power Yangzhou Diesel Engine Co.LTD has more than 40 years experience in designing and mating engines and cooperate with world famous R&D institution such as AVL and ELSBETT. The diesel engine fused the domestic and foreign diesel engine vanguard technology. Using CAD \ Pro-E three dimensional technology and CAE analysis technology, we design great power and high reliable engines .Besides the turbocharged engines and turbocharged and intercooled engines have been improved airway, customized special turbocharger, improved emission, started low-temperature and cooled channels. The engine has more characteristics: the great horse power, the low oil consumption, the superior performance, the nimble configuration, multiple port output and so on. It provides the power platform for the different products.
Great power
The technique data of engine torque and power per liter kept ahead of other similar products.
Reliable and comfortable
Small vibration, low noise, parts life design, locality strengthen and application of high efficiency cooling technology made the engines reliable.
Energy conservation and environmental protection
Adopts P type fuel injector. The emission requirement of naturally aspired engine can reach to Tier-II and the turbocharged can reach to Tier-III.
Considerate service
High generalization of parts, enough parts, and effective after-sales service team made purchasing easily.
|
Model
|
Rated power/ speed
|
Torque/speed
|
No. of cylinders
|
Displacement
|
Aspiration
|
Net weight
|
Application
|
|
YZ485B |
24/3000 |
4 |
85×92 |
2.088 |
Naturally aspirated |
205 |
≤30 horse power pump set |
|
YZ490B |
28/2300 |
4 |
90×100 |
2.54 |
Naturally aspirated |
235 |
≤35horse power pump set |
|
YZ490B1 |
31/2300 |
4 |
90×100 |
2.54 |
Naturally aspirated |
235 |
≤40 horse power pump set |
|
YZ4102B |
45/2400 |
4 |
102×118 |
3.857 |
Naturally aspirated |
370 |
≤60 horse power pump set |
|
YZ4105B |
51.5/2400 |
4 |
105×125 |
4.327 |
Naturally aspirated |
360 |
≤70 horse power pump set |
|
YZ4105B1 |
55.2/2600 |
4 |
105×125 |
4.327 |
Naturally aspirated |
360 |
≤375horse power pump set |
