Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WUCAI
-
Model Number:
-
BV
-
Product Name:
-
wholesale electrical wire roll
-
Core:
-
1 Core
-
Rated Voltage:
-
450/750V
-
Packing:
-
100m/Roll
-
Standard:
-
IEC 60227
-
Certification:
-
ROHS/CCC/VDE/CCC/ISO9001:2008
-
Rated Temperature:
-
70'C
Quick Details
-
Application:
-
construction, heating housing and building
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Solid
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WUCAI
-
Model Number:
-
BV
-
Product Name:
-
wholesale electrical wire roll
-
Core:
-
1 Core
-
Rated Voltage:
-
450/750V
-
Packing:
-
100m/Roll
-
Standard:
-
IEC 60227
-
Certification:
-
ROHS/CCC/VDE/CCC/ISO9001:2008
-
Rated Temperature:
-
70'C
|
Product Name
|
Single-core non-sheathed cable with solid conductor for general purposes
|
|
|
|
|
|
|
||||||
|
Model
|
600227 IEC 01 (BV)
|
|
|
|
|
|
|
||||||
|
Standards
|
IEC 600227,GB/T5023-2008
|
|
|
|
|
|
|
||||||
|
Custom Standard
|
IEC,BS,DIN,ICEA
|
|
|
|
|
|
|
||||||
|
No. of Cores
|
1
|
|
|
|
|
|
|
||||||
|
Conductor Type
|
Solid
|
|
|
|
|
|
|
||||||
|
Applications
|
Building Wire,House wiring
|
|
|
|
|
|
|
||||||
|
Conductor
|
99.95% copper
|
|
|
|
|
|
|
||||||
|
Insulation
|
PVC
|
|
|
|
|
|
|
||||||
|
Certification
|
CE CCC ISO9001
|
|
|
|
|
|
|
||||||
|
Rated Voltage
|
450/750V
|
|
|
|
|
|
|
||||||
|
Nominal cross-sectional area of conductor
|
1.5~400(mm²)
|
|
|
|
|
|
|
||||||

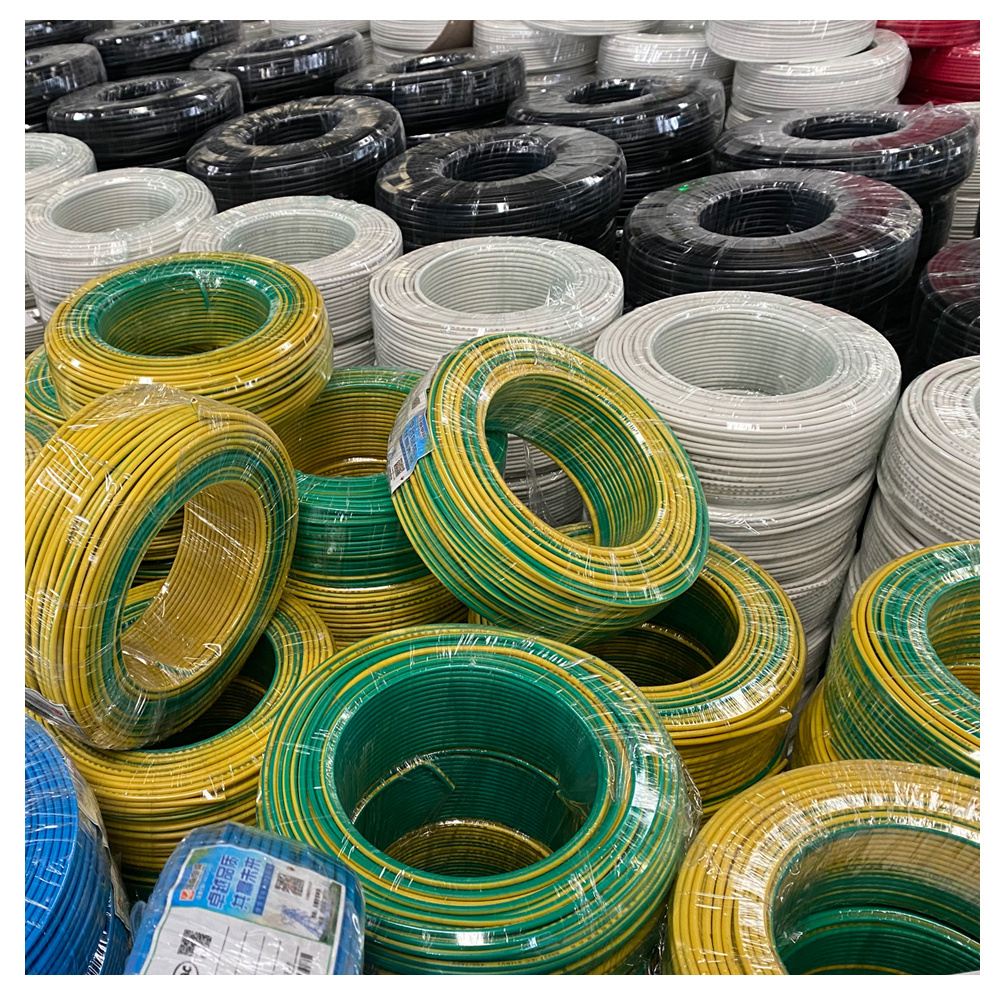

single core cable 16mm2 house construction pvc insulation copper conductor electrical wire cables
1.Reference Standard:
The product is manufactured according to the standards of GB/T5023-2008 and JB/T8734-2016 or I EC, BS, DIN, and I CEA up on repuest.
2.
Applications:
The product is suitable for power intallation, fixed wiring or flexible connection for electrical appliances with rated voltage of 450/750V and below.
3.Operating characteristics :
•Rated voltage Uo/U： 450/750V、 300/500V and 300/300V.
•Max. permissible continuous operating temperature of the conductor.
4.
Main advantages:
Copper core PVC insulated electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or
stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical
appliances,suitable for use in conduit and for fixed,protected installation. The cable can be of flame ratardance,fire resistance and other property.
5. Usages:
a. Use as home appliance wiring cable, building wire
b. Use as electrical and electronic equipment internal connecting wire
c. Use as lighting wire
d. House wiring cable
stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical
appliances,suitable for use in conduit and for fixed,protected installation. The cable can be of flame ratardance,fire resistance and other property.
5. Usages:
a. Use as home appliance wiring cable, building wire
b. Use as electrical and electronic equipment internal connecting wire
c. Use as lighting wire
d. House wiring cable
|
Nominal cross-sectional area of conductor mm2
|
Class of conductor
|
Nominal insulation thickness mm
|
Mean overall diameter Max mm
|
Approx, weight of cable kg/km
|
Max. D. C. resistance of copper conductor (20℃) Ω/km
|
|
Min. insulation resistance (70℃ Ω/km)
|
|
|
|
|
|
|
|
Plain
|
Metal-coated
|
|
|
|
1.5
|
1
|
0.7
|
3.2
|
19
|
12.1
|
12.2
|
0.011
|
|
|
1.5
|
2
|
0.7
|
3.3
|
20
|
12.1
|
12.2
|
0.010
|
|
|
2.5
|
1
|
0.8
|
3.9
|
30
|
7.41
|
7.56
|
0.010
|
|
|
2.5
|
2
|
0.8
|
4.0
|
32
|
7.41
|
7.56
|
0.009
|
|
|
4
|
1
|
0.8
|
4.4
|
45
|
4.61
|
4.70
|
0.0085
|
|
|
4
|
2
|
0.8
|
4.6
|
47
|
4.61
|
4.70
|
0.0077
|
|
|
6
|
1
|
0.8
|
5.0
|
64
|
3.08
|
3.11
|
0.0070
|
|
|
6
|
2
|
0.8
|
5.2
|
66
|
3.08
|
3.11
|
0.0065
|
|
|
10
|
1
|
1.0
|
6.4
|
107
|
L83
|
1.84
|
0.0070
|
|
|
10
|
2
|
1.0
|
6.7
|
113
|
1.83
|
1.84
|
0.0065
|
|
|
16
|
2
|
1.0
|
7.8
|
170
|
1.15
|
1.16
|
0.0050
|
|
|
25
|
2
|
1.2
|
9.7
|
267
|
0.727
|
0.734
|
0.0050
|
|
|
35
|
2
|
1.2
|
10.9
|
361
|
0.524
|
0.529
|
0.0043
|
|
|
50
|
2
|
1.4
|
12.8
|
490
|
0.387
|
0.391
|
0.0043
|
|
|
70
|
2
|
1.4
|
14.6
|
690
|
0.268
|
0.270
|
0.0035
|
|
|
95
|
2
|
1.6
|
17.1
|
936
|
0.193
|
0.195
|
0.0035
|
|
|
120
|
2
|
1.6
|
18.8
|
1190
|
0.153
|
0.154
|
0.0032
|
|
|
150
|
2
|
1.8
|
20.9
|
1464
|
0.124
|
0.126
|
0.0032
|
|
|
185
|
2
|
2.0
|
23.3
|
1835
|
0.0991
|
0.100
|
0.0032
|
|
|
240
|
2
|
2.2
|
26.6
|
2402
|
0.0754
|
0.0762
|
0.0032
|
|
|
300
|
2
|
2.4
|
29.6
|
3005
|
0.0601
|
0.0607
|
0.0030
|
|
|
400
|
2
|
2.6
|
33.2
|
3828
|
0.0470
|
0.0475
|
0.0028
|
|
Wuxi Jiangnan Cable Co., Ltd. (hereinafter referred to as “the Company”)a National Key High and New Tech Enterprise specialized in production, sales and research on cables & wires. It is a national customer satisfaction benchmark enterprise, "Top 500 China's Manufacturing Industry", "Top 500 China's Private Enterprises", "Top 500China's Machinery Industry", and "Top 500 China's Energy Groups", "China's Quality Integrity Enterprise". The "Wu Cai" brand was awarded the title of "Top 500 Asian Brands" and "Internationally Famous Brands Focused on Cultivation and Development in Jiangsu Province".
The company covers an area of more than 650,000 square meters, with a construction area of 400,000 square meters, and total assets of more than 8 billion Yuan. There are more than 2,200 employees, among them, junior and senior technical and managerial personnel account for more than 30% of the total number of employees.
The company is located in the national wire and cable industry base -- Guanlin Town, Yixing City, Jiangsu Province. It has always adhered to the business philosophy of "integrity and pragmatic, customer first" and is willing to supply more high quality products, perfect service, as always with new and old friends at home and abroad for sincere cooperation, mutual benefit and win-win!
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 7-15 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
