Quick Details
-
Spangle Type:
-
Regular Spangle
-
Hardness:
-
Full Hard
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HONGYE
-
Length:
-
2000-12000mm or customized
-
Grade:
-
SGCC/CGCC/DX51D, SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z
-
Product Name:
-

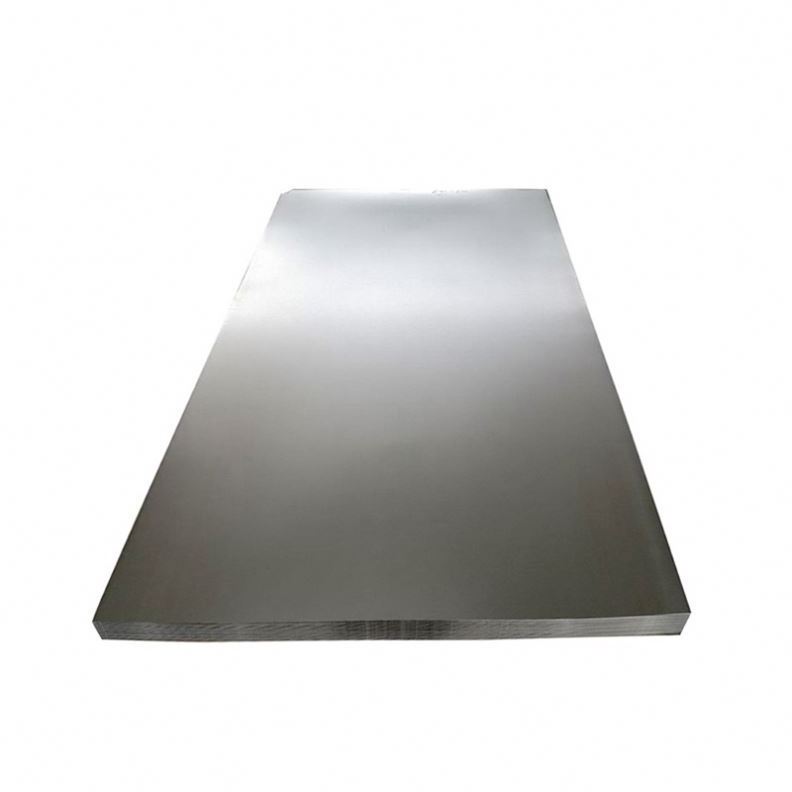

Galvanized Steel Plate
-
MOQ:
-
1 Ton
-
Payment term:
-
30%TT+70% Balance
-
Zinc Coating:
-
30-275g/m2
-
Package:
-
Standard Seaworth Packing
-
Sample:
-
Sample Freely
Quick Details
-
Type:
-
Steel Sheet
-
Thickness:
-
0.12-0.2, 0.12mm-6mm
-
Coating:
-
Z10-Z29
-
Spangle Type:
-
Regular Spangle
-
Hardness:
-
Full Hard
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HONGYE
-
Length:
-
2000-12000mm or customized
-
Grade:
-
SGCC/CGCC/DX51D, SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z
-
Product Name:
-
Galvanized Steel Plate
-
MOQ:
-
1 Ton
-
Payment term:
-
30%TT+70% Balance
-
Zinc Coating:
-
30-275g/m2
-
Package:
-
Standard Seaworth Packing
-
Sample:
-
Sample Freely
One-stop Supply
Category complete Metals & Alloys
Contact me to get cost effective price with details
Products Description
Hot dipped galvanized steel sheet & coil is made of carbon steel coated in zinc utilizing the hot-dip process. The end result of this process is a layer of zinc on each side of the steel sheet or coil that is tightly adhered to the steel through the formation of an iron-zinc alloy bonding layer. This bonding layer is formed by a diffusion process while the heated steel is in contact with molten zinc.
|
Standard
|
astm a526 a528 a444, a653, jis g3302, en10142 en1012, etc
|
|
Grade
|
DX51D+Z, DX52D+Z, DC52D+Z, DC51D+Z, S350GD+Z, G550, SGCC, DD52D+Z etc
|
|
Thickness
|
0.12-3.0mm (customize, above 3.0mm available)
|
|
Width
|
600-2000mm (customize)
|
|
Length
|
as customer requirements
|
|
Coil inner diameter
|
508mm/610mm (customize)
|
|
Zinc coating
|
20-600g/m2
|
|
Raw material
|
cold rolled base. (hot rolled base also available)
|
|
Technique
|
hot dipped. (electro also available)
|
|
Coil weight
|
3-8 tons
|
|
Tolerance
|
thickness +- 0.02 or +- 0.04, width +-5mm
|
|
Spangle type
|
zero spangle, small spangle, regular spangle, big spangle
|
|
Surface treatment
|
chromated/non-chromated, oiled/non-oiled, anti-fingerprints
|
|
Certification
|
CE, ISO9001-2008, SGS
|
|
Monthly output
|
17000 tons
|
|
Packaging
|
3 layers. kraft paper outside + water-proof plastic film in the middle + steel plate covered with strips outside
|
|
Landing port
|
qingdao/shanghai/tianjin port
|
|
Payment terms
|
T/T, L/C, western union paypal etc
|
|
Delivery time
|
it takes about 10 days for stock goods, or it will need 15-25 days if goods need to be customized
|
|
MOQ
|
as customer needs. reminder: more quantity reduce your purchase cost greatly
|
|
Inspection
|
third-party test
|
|
Cooperate brand
|
anshan steel, baotou steel, jiangsu shagang etc
|
|
Usage
|
Grade
|
Yield Strength (MPA)
|
Tensile Strength (MPA)
|
Elongation rate %
|
|
Punching galvanized steel
|
DX51D+Z
|
~
|
270-500
|
>=20
|
|
|
DX52D+Z
|
140-300
|
270-420
|
>=22
|
|
|
DX53D+Z
|
140-260
|
270-380
|
>=26
|
|
|
DX54D+Z
|
140-220
|
270-350
|
>=30
|
|
Structure galvanized steel
|
S220GD+Z
|
>=220
|
>=300
|
>=18
|
|
|
S250GD+Z
|
>=250
|
>=330
|
>=17
|
|
|
S280GD+Z
|
>=280
|
>=360
|
>=16
|
|
|
S320GD+Z
|
>=320
|
>=390
|
>=15
|
|
|
S350GD+Z
|
>=350
|
>=420
|
>=14
|
|
|
S400GD+Z
|
>=400
|
>=470
|
~
|
|
|
S500GD+Z
|
>=500
|
>=530
|
~
|
|
|
S550GD+Z
|
>=550
|
>=560
|
~
|
Product packaging
Application Scenarios
Color aluminum because of its light texture, bright color, easy processing molding, no rust and other advantages, is widely used in aluminum plastic plate, honeycomb plate, insulation board, aluminum curtain wall, shutter, shutter window, aluminum magnesium manganese roof system, aluminum ceiling, household appliances, downspout, aluminum cans and many other fields.
