Quick Details
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
customzied
-
Weight:
-
0.3 KG
-
Working Temperature Range:
-
0 - 600 ℃
-
Core Components:
-
Other
-
Tube material:
-
s.steel & Incoloy alloy
-
cross-section:
-
2.2x4.2/2x4/3.3x3.3/3x3
-
with thermocouple:
-
J or K
-
Voltages available:
-
110-240v
Quick Details
-
Type:
-
Belt heater, J-type (standard) or K-type, Copper & straight
-
Power Source:
-
Electric
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
customzied
-
Weight:
-
0.3 KG
-
Working Temperature Range:
-
0 - 600 ℃
-
Core Components:
-
Other
-
Tube material:
-
s.steel & Incoloy alloy
-
cross-section:
-
2.2x4.2/2x4/3.3x3.3/3x3
-
with thermocouple:
-
J or K
-
Voltages available:
-
110-240v

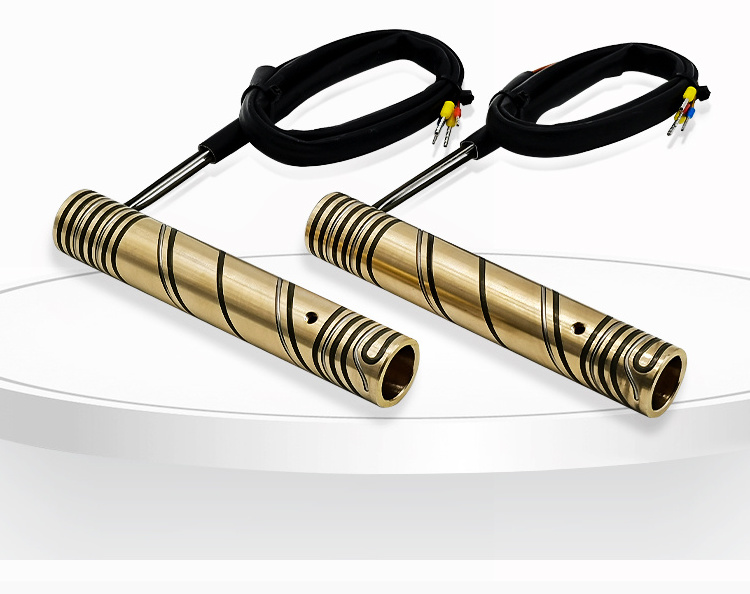

Product name: Hot runner copper sleeve heating ring
1. Special dimensions such as section size 3X3, 3.5X3.5, 4.2X2.2, 4.2X2.5, 4X4, circular center 3.8, center 4.0, center 4.2, center 4.4, and center 4.6.
2. The built-in thermocouple can be selected from models such as K, J, E, etc.
3. The size of the heating ring can be customized according to the requirements of the hot nozzle of the hot runner.
4. The heating wire has undergone high-temperature heat treatment and can be wound into various shapes for heating. It has the characteristics of high working temperature, fast heating, uniform heating, precise temperature control, long service life, flexible installation, and low consumption. The heating temperature on the surface of the coil can reach up to 750 degrees Celsius
5. The product is made of high-quality stainless steel 321 seamless steel pipe on the exterior, 2080 chromium wire inside, and exquisitely selected magnesium oxide filling. The product is widely used in hot runner systems, plastic molds, blow molding machines, extruders, hot nozzles, food, electronics, chemical and other mechanical industries.
6. High quality products, comprehensive services, and a one-year warranty for all products.
