Quick Details
-
Model Number:
-
HM0014
-
Keywords:
-
progressive stamping die
-
For use:
-
Micro USB 2.0 receptacle
-
Precsion:
-
up to 0.001mm
-
Shot:
-
800K -1KK
-
Material:
-
Steel or bronze
-
Mold type:
-
progressive mold
-
Mold design software:
-
UG,Pro-E,Solidworks
-
Equipment 1:
-
Wire EDM /Sodick
-
Equipment 2:
-
Wire EDM /Agie Charmilles
-
Equipment 3:
-
CNC /Sodick
Quick Details
-
Shaping Mode:
-
Punching Mold
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hommar
-
Model Number:
-
HM0014
-
Keywords:
-
progressive stamping die
-
For use:
-
Micro USB 2.0 receptacle
-
Precsion:
-
up to 0.001mm
-
Shot:
-
800K -1KK
-
Material:
-
Steel or bronze
-
Mold type:
-
progressive mold
-
Mold design software:
-
UG,Pro-E,Solidworks
-
Equipment 1:
-
Wire EDM /Sodick
-
Equipment 2:
-
Wire EDM /Agie Charmilles
-
Equipment 3:
-
CNC /Sodick

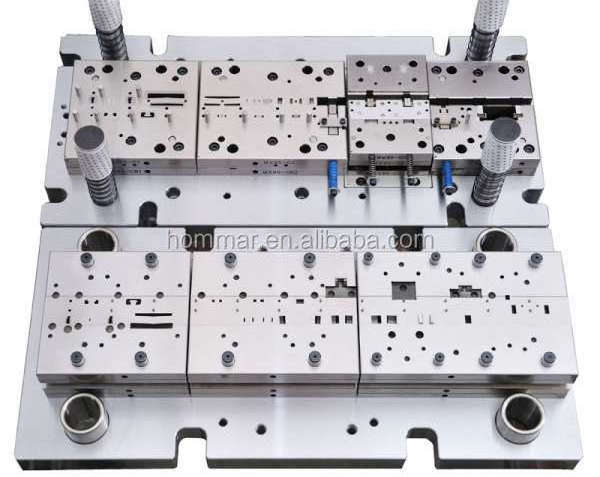

China Dongguan Manufacturer Custom Punching parts Precision Progressive Die Moulds Stamping Die for Micro USB--HM0014
Keywords=pressive die
Keywords= progressive mould
Keywords=Progressive stamping die
Connector mould,progressive mould,stamping mould,progressive die,precison mould,electronic mould,HDMI Mould,USB Mould,Dongguan Mould,China Mould,DVI mould,Micro SD reader Mould,Metal post mould,
Click here for more information
Material List of Micro USB 2.0 Receptacle
| Item | Material | Hardness |
| PUNCH PAD | 45 | / |
| PUNCH SET | 45 | / |
| TBP | 40Cr | 40—45HRC |
| PP | SKD11 | 60—62HRC |
| SBP | 45#(40Cr) | (40-45HRC,if T>1.2) |
| PUNCH PLATE | Cr12MoV/SKD11 | 60---62HRC |
| SP | Cr12MoV/ SKD11/ DC53 | 50---57HRC |
| DP | Cr12MoV/ SKD11/ DC53 | 60—62HRC |
| DBP | 40Cr | 40—45HRC |
| DIE SET | 45# | / |
| Die Foot | 45# or A3 | / |
| Air cushion plate | 45# | / |
Packing:
First Step
Wrapping by PE film to anti-rust.
Second Step
Note:
1.The selected wooden sheet are more than 1cm depth.
2.All wooden boxes are fumigated and disinfected with a Fumigation &Disinfection Certificate .
Shipping:
We accept your any request on shipment.
By air, by sea,and by Express are acceptable.
| By Express | By Air | By Sea | |
| USA &Canada | 2-3 days | 5-6days | 15-28days |
| West Europe | 4-7 days | 7-10 days | 26-35days |
| South Asia | 3-5 days | 6-9 days | 12-25 days |
| Japan&South Korea | 2-3 days | 3-5 days | 10-15 days |
| Russia | -------- | --------- | 35-45 days |
