Quick Details
-
Application:
-
Supermarket
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Wuxi General
-
Model Number:
-
6mm/8mm/10mm/11mm/12mm/13mm/16mm
-
Type:
-
Elevator Wire Rope, 6mm/8mm/10mm/11mm/12mm/13mm/16mm
-
Product name:
-
Elevator Wire Rope
-
Brand:
-
Wuxi General
-
MOQ:
-
1
-
Warranty Time:
-
1 Year
-
Payment:
-
T/T,VISA,Mastercard,e-checking
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Supermarket
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Wuxi General
-
Model Number:
-
6mm/8mm/10mm/11mm/12mm/13mm/16mm
-
Type:
-
Elevator Wire Rope, 6mm/8mm/10mm/11mm/12mm/13mm/16mm
-
Product name:
-
Elevator Wire Rope
-
Brand:
-
Wuxi General
-
MOQ:
-
1
-
Warranty Time:
-
1 Year
-
Payment:
-
T/T,VISA,Mastercard,e-checking

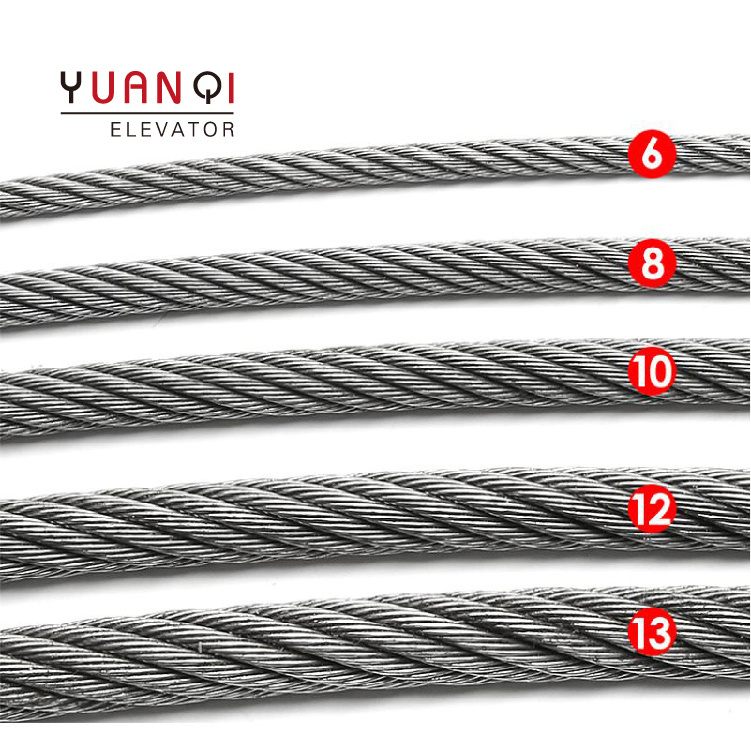

Wuxi General elevator special wire rope 6 8 10 12 13mm traction speed limit rope hemp core
| Recommendation form for model selection | ||||||
| steel wire rope model |
rope
diameter |
strength
grade |
minimum
breaking force |
usage | ||
|
Steel wire rope
with fiber core (natural fiber core) |
8x19S+FC(NFC) | mm | N/mm2 | kN |
elevator
speed |
floor limitation |
| 8 | 1370/1770 | 28.1 | ≤1.75m/s |
less than 25 floors
or 25 floors |
||
| 1570/1770 | 30.8 | |||||
| 10 | 1370/1770 | 44 | ≤2.Om/s |
less than 30 floors
or 30 floors |
||
| 1570/1770 | 48.1 | |||||
| 11 | 1370/1770 | 53.2 | ||||
| 12 | 1370/1770 | 63.3 | ||||
| 13 | 1370/1770 | 74.3 | ||||
| 16 | 1370/1770 | 113 | ≤1.75m/s |
less than 30 floors
or 30 floors |
||
|
Steel wire rope
with compond steel core |
8×19S+
8x7+PP (8x19S+CSc) |
8 | 1570 | 35.8 | ≤2.5m/s |
less than 40 floors
or 40 floors |
| 10 | 1570 | 55.9 | ≤3.5m/s | |||
| 12 | 1570 | 80.5 | ||||
| 13 | 1570 | 94.5 | <4.0m/s |
less than 50 floors
or 50 floors |
||
| 16 | 1570 | 143 | ||||
|
steel wire rope
with ircon wire rope core |
8×19S+
(8×7+1x19S) (8x19S+IWR) |
8 | 1570 | 37.7 | <4.Om/s |
less than 50 floors
or 50 floors |
| 10 | 1570 | 58.9 | ||||
| 13 | 1570 | 98.8 | ||||
| 16 | 1570 | 150 | ||||
|
steel wire rope
for seep governor |
6x19S+SFC(PP) | 6 | 1770 | 21 |
Steel wire rope with compond steel core is recommendedfor
elevators with high speed or high-rise building. |
|
| 6.5 | 1770 | 24.7 | ||||
| 8x19S+SFC(PP) | 8 | 1370/1770 | 28.1 | |||
