Quick Details
-
Warranty:
-
1 year, 12 months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
pengda
-
Model Number:
-
JM/JK
-
Paint:
-
Red, green, blue or other color
-
Export Markets:
-
Global
-
Power source:
-
380V 50Hz 3phase or according to your demand
-
Working duty:
-
M3-M5
-
Certification:
-
ISO9001: 2000, CE
-
drum:
-
smooth face or rope groove
-
Color:
-
Demand
-
Name:
-
Single-drum construction electric winch pulley system
Quick Details
-
Power Source:
-
Electric
-
Application:
-
crane, mine, port
-
Capacity:
-
10 KN ~ 650 KN
-
Warranty:
-
1 year, 12 months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
pengda
-
Model Number:
-
JM/JK
-
Paint:
-
Red, green, blue or other color
-
Export Markets:
-
Global
-
Power source:
-
380V 50Hz 3phase or according to your demand
-
Working duty:
-
M3-M5
-
Certification:
-
ISO9001: 2000, CE
-
drum:
-
smooth face or rope groove
-
Color:
-
Demand
-
Name:
-
Single-drum construction electric winch pulley system

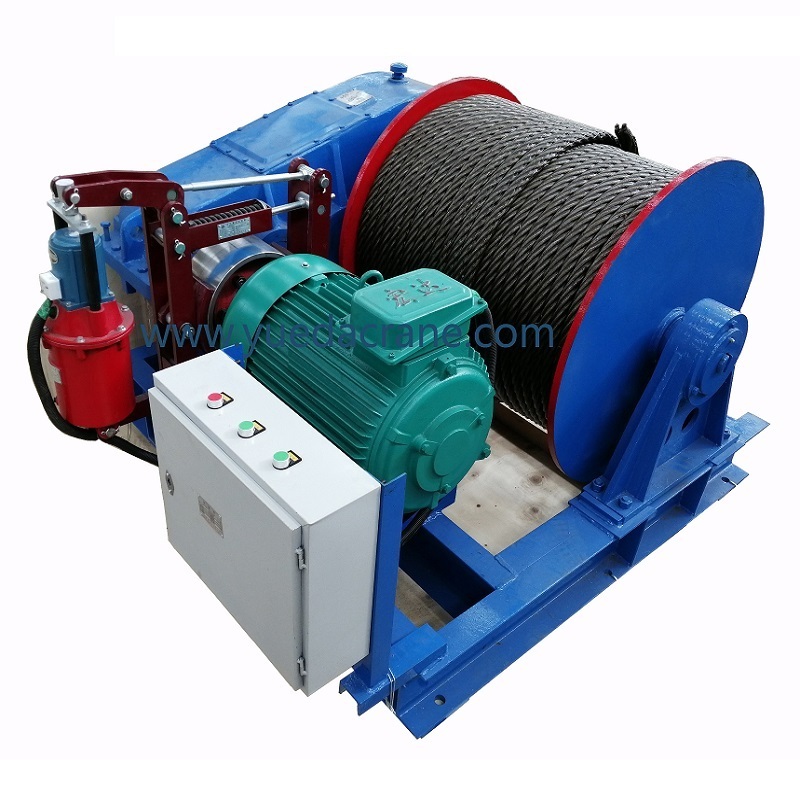

8ton Cable winch puller motor lift winch:
1.Brief Introduction:
8ton Cable winch puller motor lift winch, most of time, follow-operated by people on the ground, also can operate in the room, or operate with wireless type with far way, except exclusive-use, also can match-use with electric trolley and plain trolley, geared trolley, these trolleys with simple structure, light weight, easy to load and unload, can use like this forever, but also can be used temporarily
Be widely used in port, workshop, warehouse, construction and many kinds producing-line, so is necessary equipment for lifting goods, raising labor efficiency, improving working conditions.
JK type high speed winch mainly used for materials lfting and tracton the weight drops duting construction. It also used for crane as main hoist; it is the special winch of derrick and gantry frame and lifting trolley. It is suitable for construction and small equipments installation of constrction mine eare lifting factory.
JM slow electric winch lifting can lift heavy weight in the Construction Site and Port pier; it also can be used as traction power in installing of the factories and mines. It is not only can single use, but also can combined with other large-scale and complex machine.
2. Features
- top quality with competitive price.
- widely used in the double beam bridge crane and gantry crane.
- easy to install and high quality.
- compact structure and reasonable design.
3. Component Parts
4. Safety Features
- the load limiter
- hoisting height limiter
- falling depth stop
- overspeed protection switch
According to customers' requirement, we can design the non-standard equipment
5.JM type electric winch technical parameters:
|
Technical details of JM model electric winch |
|
|
Rated Capacity |
1ton~65ton |
|
Max. rope length |
100m~600m or special design |
|
Pulling speed |
9m/min(Average speed) or special design |
|
Power source |
380V, 50HZ, 3 phases or other standard |
|
Working temperature |
-20 ~ +42℃ |
|
Motor ’ s protection class |
IP54 |
|
Motor ’ s insulation grade |
F |
|
Control model |
Wireless remote control or control box with pushbuttons |
|
Brake type |
Hydraulic brake |
|
Duty class |
M5 |
|
Certificate |
CE |
|
Paint color |
If no special requirements, it is blue color. |
The rope drum of crane used portable electric winch:
The driven motor of winch:
The double brake system of winch:
The speed reducer of winch:
The examination and test of winch :
The packing, transport of winch :
serive:
1) Pre-sale service:
Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sale service:
Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export.
3) After-sale service:
14 months warranty from the date of B/L
One year quick-wear parts for free
Professional technicians provide installation, commissioning services
Technical advisory for any time
