Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Sunway
-
Model Number:
-
AF6K-SL
-
Input Voltage:
-
550V
-
Output Voltage:
-
220 / 230V
-
Output Current:
-
27.3 / 26.1A
-
Output Frequency:
-
50/60HZ
-
Size:
-
370 x 513 x 192mm
-
Certificate:
-
CE
-
Warranty:
-
5years/10years
-
Weight:
-
17kg
-
Product name:
-
High Frequency Solar Inverter
-
Application:
-
Solar Power System Home
-
Display & Communication Interfaces:
-
LCD, LED, RS485, CAN, Wi-Fi, GPRS, 4G
-
Operating Altitude (m):
-
< 4000
-
Enclosure Protect Level:
-
IP65 / NEMA4X
-
Inverter type:
-
Hybrid Power Inverter
-
Keyword:
-
Hybrid Storage Inverter
-
Battery type:
-
Lead Acid \ Lithium
-
Color:
-
White Color
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
97.6%
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Sunway
-
Model Number:
-
AF6K-SL
-
Input Voltage:
-
550V
-
Output Voltage:
-
220 / 230V
-
Output Current:
-
27.3 / 26.1A
-
Output Frequency:
-
50/60HZ
-
Size:
-
370 x 513 x 192mm
-
Certificate:
-
CE
-
Warranty:
-
5years/10years
-
Weight:
-
17kg
-
Product name:
-
High Frequency Solar Inverter
-
Application:
-
Solar Power System Home
-
Display & Communication Interfaces:
-
LCD, LED, RS485, CAN, Wi-Fi, GPRS, 4G
-
Operating Altitude (m):
-
< 4000
-
Enclosure Protect Level:
-
IP65 / NEMA4X
-
Inverter type:
-
Hybrid Power Inverter
-
Keyword:
-
Hybrid Storage Inverter
-
Battery type:
-
Lead Acid \ Lithium
-
Color:
-
White Color

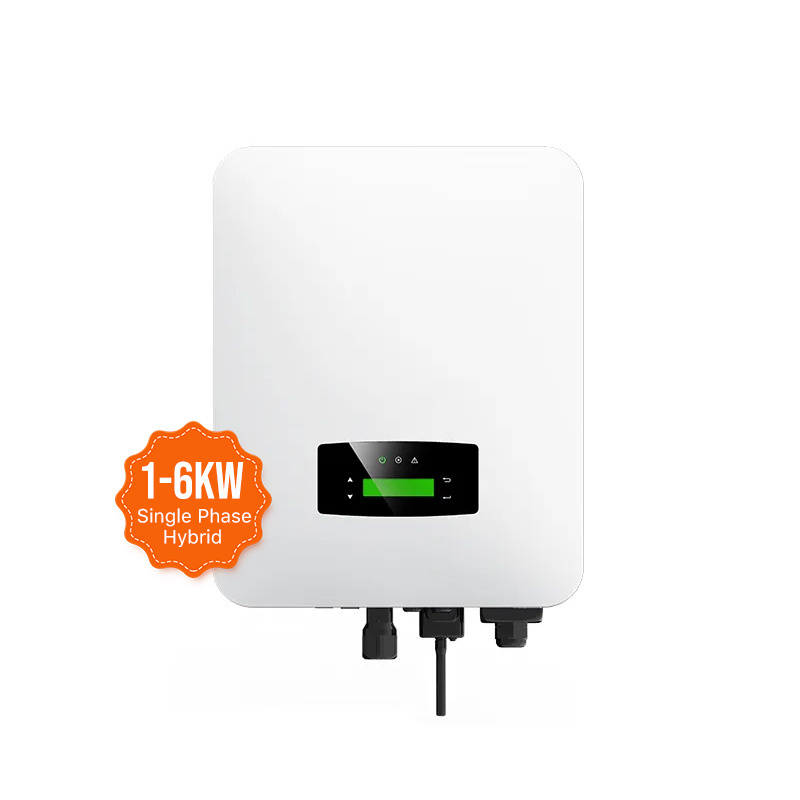

The AF low voltage Series storage Inverters are designed to increase energy independence for homeowners. The power range is from 1kW to 6kW, compatible with low voltage (40-60V) batteries.
Energy management is based on time-of-use and demand charge rate structures, significantly reduce the amount of energy purchased from the public grid.
Thanks for the UPS function (switch time < 10ms), enables the crucial loads power on during outages. Additionally, under the backup operation mode, the inverter provides you up to 150% peak output overloading.
The AF low voltage Series storage inverters integrated with Arc Fault Circuit Interrupter (AFCI) and Rapid Shutdown.
System Architecture
Product Parameter
|
PV Input
|
AF1K-SL-1
|
AF1.5K-SL-1
|
AF2K-SL-1
|
AF2.5K-SL-1
|
AF3K-SL-1
|
AF3.6K-SL-1
|
|||||
|
Max. Input Power(kW)
|
1.5
|
2.3
|
3.0
|
3.8
|
4.5
|
5.4
|
|||||
|
Max. PV Votage (V)
|
550
|
|
|
|
|
|
|||||
|
MPPT Range (V)
|
80-550
|
|
|
|
|
|
|||||
|
Full MPPT Range (V)
|
80 - 500
|
90 - 500
|
120 - 500
|
150 - 500
|
170 - 500
|
210 - 500
|
|||||
|
Normal Voltage (V)
|
360
|
|
|
|
|
|
|||||
|
Startup Voltage (V)
|
100
|
|
|
|
|
|
|||||
|
Max. Input Current (A)
|
18.5 x 1
|
|
|
|
|
|
|||||
|
Max. Short Current (A)
|
26 x 1
|
|
|
|
|
|
|||||
|
Nominal AC Voltage L-N (V)
|
220/230
|
|
|
|
|
|
|||||
|
Nominal AC Frequency (Hz)
|
50/60
|
|
|
|
|
|
|||||
|
Voltage THD (%)
|
< 3
|
|
|
|
|
|
|||||
|
Dimensions (W x H x D, mm)
|
370 x 513 x 192
|
|
|
|
|
|
|||||
|
Weight (kg)
|
17
|
|
|
|
|
|
|||||
|
Topology
|
Transformerless
|
|
|
|
|
|
|||||
|
Noise Emission (dB)
|
<25
|
|
|
|
|
|
|||||
|
Standby Consumption (W)
|
<10
|
|
|
|
|
|
|||||
|
Mounting
|
Wall Bracket
|
|
|
|
|
|
|||||
|
PV Input
|
AF3K-SL
|
AF3.6K-SL
|
AF4K-SL
|
AF4.6K-SL
|
AF5K-SL
|
AF5.5K-SL
|
AF6K-SL
|
||||||
|
Max. Input Power(kW)
|
4.5
|
5.4
|
6.0
|
6.9
|
7.5
|
8.3
|
9.0
|
||||||
|
Max. PV Votage (V)
|
550
|
|
|
|
|
|
|
||||||
|
MPPT Range (V)
|
80-500
|
|
|
|
|
|
|
||||||
|
Full MPPT Range (V)
|
90-500
|
110-500
|
120-500
|
130 - 500
|
150 - 500
|
160 - 500
|
170 - 500
|
||||||
|
Normal Voltage (V)
|
360
|
|
|
|
|
|
|
||||||
|
Startup Voltage (V)
|
100
|
|
|
|
|
|
|
||||||
|
Max. Input Current (A)
|
18.5 x 2
|
|
|
|
|
|
|
||||||
|
Max. Short Current (A)
|
26 x 2
|
|
|
|
|
|
|
||||||
|
Dimensions (W x H x D, mm)
|
370 x 513 x 192
|
|
|
|
|
|
|
||||||
|
Weight (kg)
|
17
|
|
|
|
|
|
|
||||||
|
Topology
|
Transformerless
|
|
|
|
|
|
|
||||||
|
Noise Emission (dB)
|
< 25
|
|
|
|
|
|
|
||||||
|
Standby Consumption (W)
|
< 10
|
|
|
|
|
|
|
||||||
|
Mounting
|
Wall Bracket
|
|
|
|
|
|
|
||||||
