Quick Details
-
Tube Diameter:
-
4-20mm
-
Cutting Length:
-
>50mm
-
Work Speed:
-
0~60m/min, adjustable by Inverter
-
Cutting Tolerance:
-
0.5mm/1m
-
Item:
-
bundy aluminum copper tube cut to length machine with clean cutting
-
Weight:
-
460KG
Quick Details
-
Place of Origin:
-
China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Tube Material:
-
Bundy tube/Copper tube/Aluminum tube
-
Tube Diameter:
-
4-20mm
-
Cutting Length:
-
>50mm
-
Work Speed:
-
0~60m/min, adjustable by Inverter
-
Cutting Tolerance:
-
0.5mm/1m
-
Item:
-
bundy aluminum copper tube cut to length machine with clean cutting
-
Weight:
-
460KG

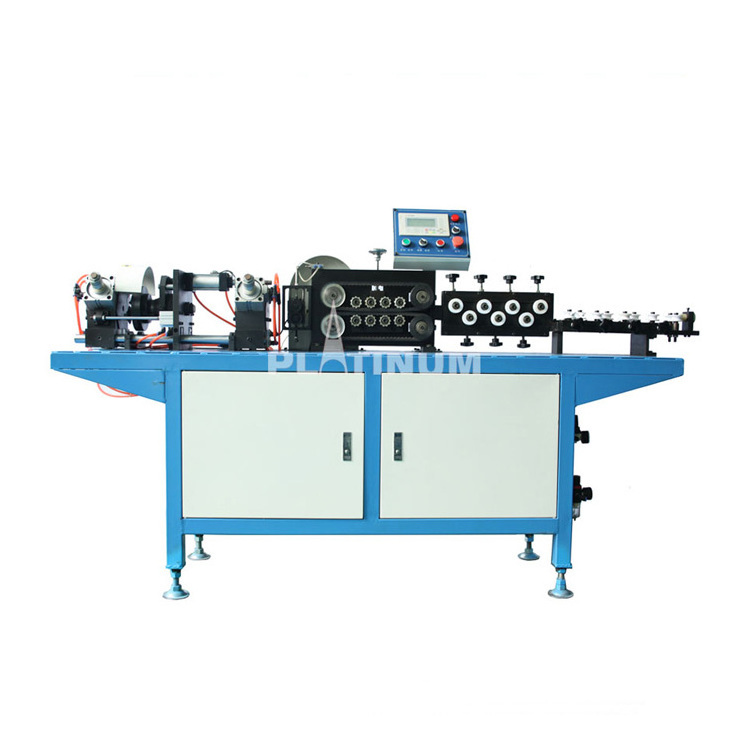

Coil steel bundy aluminum copper tube pipe straightening cut to length machine with chipless clean cutting
Coil steel bundy aluminum copper tube pipe cut to length machine with chipless clean cutting is special designed for tube straightening and cutting process before tube bending or welding process of condenser and evaporator. Compare to normal design with two-half clamping die, we design the clamping die in three parts according to lathe chuck structure, which can minimize the tube distortion during cutting, and the clamping die changing / adjustment will be more easier.
Feature
1) Three-part clamping die to minimize tube distortion, get smooth cutting end surface.
2) High accuracy concentricity ensures to get good welding quality in following process.
3) Chipless cutting with 360° rotary cutting and stretching with two points clamping.
4) Straightening wheel Nylon and "U" shape rubber belt to avoid scratch on tube surface
Coil steel bundy aluminum copper tube pipe cut to length machine with chipless clean cutting
|
|
Item
|
|
Data
|
|
|
1
|
Tube Material
|
|
Copper/Aluminum/Bundy tube
|
|
|
2
|
Tube Diameter
|
|
4-20mm
|
|
|
3
|
Cutting Length
|
|
>50mm
|
|
|
4
|
Work Speed
|
|
0~60m/min, adjustable by Inverter
|
|
|
5
|
Cutting Tolerance
|
|
0.5mm/1m
|
|
|
6
|
Control System
|
|
PLC control / HMI
|
|
|
7
|
Motor Power
|
|
1.12KW
|
|
|
8
|
Electric System
|
|
380V, 50Hz, 3Phae (Customized)
|
|
|
9
|
Power AC
|
|
380V±10%V50HZ
|
|
|
10
|
Dimensions
|
|
2300x650x1300mm
|
|
|
11
|
Weight
|
|
460KG
|
|
|
Packaging
|
|
|
|
Size
|
2300x650x1300mm
|
|
|
Weight
|
460KG
|
|
|
Packaging Details |
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
|
|
|
|
|
|
|
