Quick Details
-
Supply Voltage:
-
AC 100~240V or AC/DC 12~24V
-
Range:
-
0-99999
-
Panel cutout:
-
33*68.5mm
-
Weight:
-
130g
Quick Details
-
Brand Name:
-
BIGM
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
DHC9J-J
-
Supply Voltage:
-
AC 100~240V or AC/DC 12~24V
-
Range:
-
0-99999
-
Panel cutout:
-
33*68.5mm
-
Weight:
-
130g

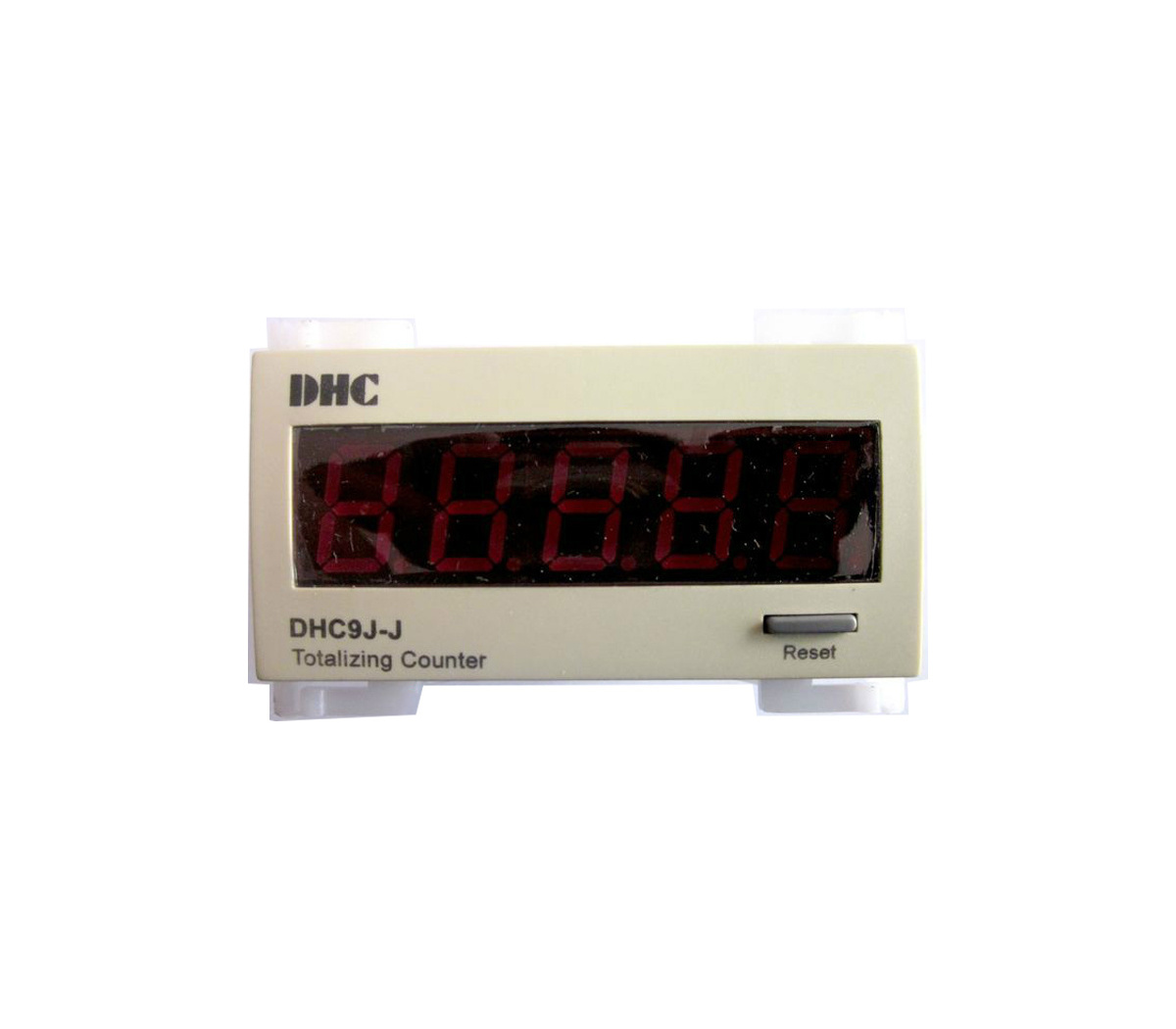

DHC9J-J Digital LED Totalizing Reversible Counter Manual Reset
Features
·DIN-sized 36×72mm, 0.56 inches high bright LED displays.
·Reversible counters have 3 choices of random reversible counting modes
·Inputs connected nod signal or electricity signal. Counting is accuracy and reliable.
·Memory backup.
·Sensor power supply 12V DC.
·The maximum counting speed:1000 counts per second.
Specification
· Supply voltage: AC 100~240V / DC 12~24V
· Range: 0-99999
· Counting speed: 16.7mS (30 cps) K3 ON
0.5mS (1000 cps) K3 OFF
· Temperature: -10 °C ~40 °C
· Weight: Approx130g
· External power supply: DC12V 30mA(max)
· Input signals voltage: L=0~2V
H=4~30V
· Reset: Manual reset
Power reset: 2s
· Panel cutout: 33×68.5mm
Dimension
Connection
