Quick Details
-
Dimension(L*W*H):
-
1000x650x1290mm
-
Weight (KG):
-
193
-
After-sales Service Provided:
-
No overseas service provided
-
Color:
-
White and green
-
Control:
-
Easy operate
-
Grinding Wheel Diameter(mm):
-
125x32mm
-
Lilting Range of the Working Table:
-
0-90°
-
Max. Grinding Length:
-
700mm
-
Max. Grinding Diameter:
-
180mm
-
Power:
-
1500w
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Longhe
-
Voltage:
-
3phase,220v/380v,50/60Hz
-
Dimension(L*W*H):
-
1000x650x1290mm
-
Weight (KG):
-
193
-
After-sales Service Provided:
-
No overseas service provided
-
Color:
-
White and green
-
Control:
-
Easy operate
-
Grinding Wheel Diameter(mm):
-
125x32mm
-
Lilting Range of the Working Table:
-
0-90°
-
Max. Grinding Length:
-
700mm
-
Max. Grinding Diameter:
-
180mm
-
Power:
-
1500w
FOCUS ON MANUFACTURING
1988
FOUNDED IN 1988
35000m²
FACTORY FLOOR AREA
36+
YEARS EXPERIENCE
MORE THAN 15 YEARS OF SENIOR
TECHNICAL TEAM
Longhe enterprises focus on supporting advanced equipment and pay more attention to talent training, with an average time in Longhe more than 15 years of professional technical service team
Professional technology focus
on research and development
Factory environment · Live shooting
OVER 150000+ CUSTOMERS
IN 36+ YEARS CHOOSE Longhe
Product Description

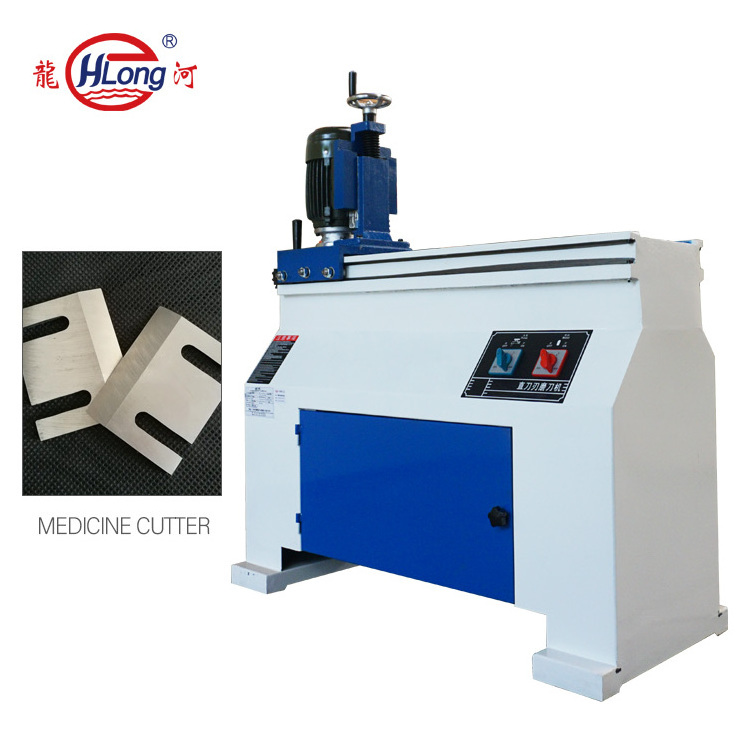

Crusher blade dedicated
MANUAL SHARPENER
light and convenient | smooth and wear-resistant
Product Paramenters
Consult customer service for more enhanced high-power models
|
[product name]
MF-700A manual sharpening machine
|
|
|
|
[Workbench length]
1-700mm
|
[motor power]
1.5KW
|
|
|
[Grinding wheel size]
32x50x150mm
|
|
|
|
[Grinding wheel maximum stroke]
720mm
|
|
|
|
[Grinding blade adjustable angle]
0-90°
|
|
|
|
[Water pump power]
40W
|
[Dimension size]
1050x400x1250mm
|
|
ARE YOU STILL WORRYING
ABOUT THESE PROBLEMS?
Waste of time and effort to finish sharpening knives
Application Range
ONE MACHINE IS
MULTI-PURPOSE, WIDELY USED
The knife sharpener is designed according to the damage or wear of the plastic crusher blade, which can improve the working efficiency of the crusher. At the same time, it is also suitable for grinding straight blades of rotary cutters, paper cutters, shears, flakers and other cutting machines.
4 ADVANTAGES OF SHARPENING MACHINES
Longhe refuses to use shoddy products and strictly control the standards
|
Sharpening Machine Manufacturing Details
|
|
1. Large-capacity water tank, recycling use
|
|
2. Accurate scale, flexible adjustment
|
|
3. Thickened and extended spacers, flexiblearrangement of blades of different sizes
|
|
4. Protective cover wraps the work area, safe and efficient
|
Product advantages
DESIGN OF STRAIGHT PULLEY GUIDE
The manual sharpening machine adopts straight pulley guides, with high precision, flexible and light operation, and smooth wear resistance.
DOUBLE TILT 0-90°FREE ADJUSTMENT
Precision scale, precision grinding to ensure the same blade angle
LIQUID CIRCULATION PUMP
Large storage tank, circulating water mill, sufficient water flow
BRAND PURAND PURE COPPER MOTOR
Machine detail
Adjust the distance between the sharpening stone and the knife edge
Direct rotation, easy to operate
and easy to use
water tank
External water tank, easy to clean and change water
Cold cut water rust inhibitor nozzle
Locator
For transport fastening
Machine maintenance
|
component
|
Maintenance method
|
|
Orbit
|
Clean, need a little lubricating oil
|
|
Tool rest
|
Clean, need a little lubricating oil
|
|
Steel slider
|
Clean, need a little lubricating oil
|
|
Grinding wheel
|
The hexagon screw of the splint is locked, and it is replaced in time when it is worn.
|
|
Motor
|
Frequently check that the motor temperature must not exceed 60°
|
|
Bearing
|
Regularly add lubricating oil, and often check that the motor temperature should not exceed 60°
|
|
Outlet pipe
|
Check regularly for blockages
|
|
Water tank
|
Clean and change water regularly
|
