- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
FLT
-
Fork Length:
-
1070mm
-
Fork Width:
-
100mm
-
Overall Dimensions:
-
2390*1160*2030
-
Weight (KG):
-
3150 kg
-
Product Name:
-

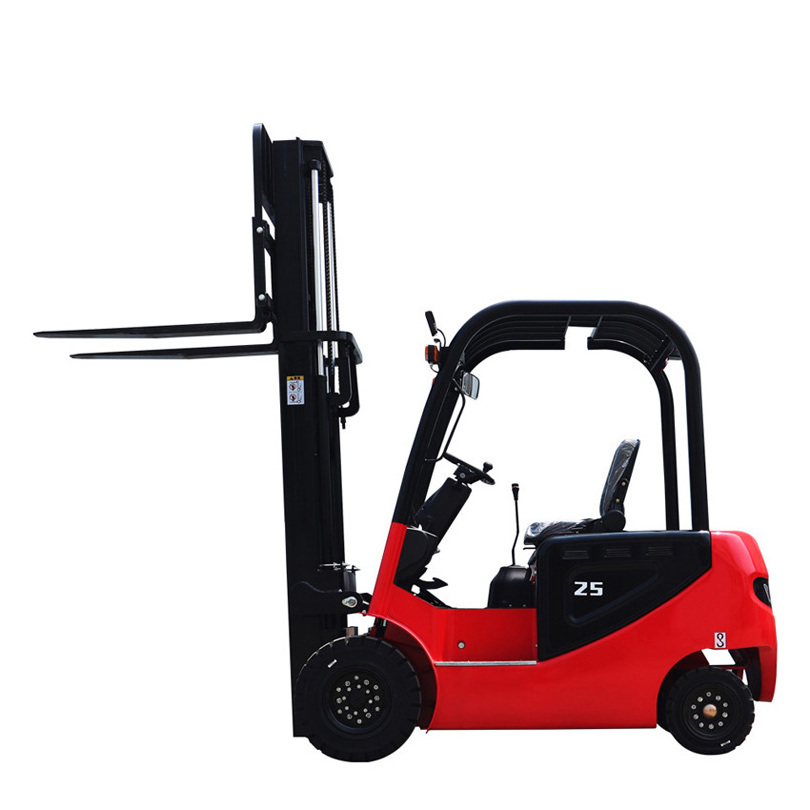

Electric Forklift Truck
-
Loading Capacity:
-
1000-5000 (kg)
-
Battery Type:
-
Lead Aicd Battery
-
Battery:
-
72V/260Ah
-
Standard Lift height:
-
3000mm
-
Body length:
-
2390mm
-
Body width:
-
1160mm
-
Overall Height:
-
2030mm
-
wheelbase:
-
1600mm
-
Color:
-
Customer's Request
Quick Details
-
Min. Lifting Height:
-
3000mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FLT
-
Fork Length:
-
1070mm
-
Fork Width:
-
100mm
-
Overall Dimensions:
-
2390*1160*2030
-
Weight (KG):
-
3150 kg
-
Product Name:
-
Electric Forklift Truck
-
Loading Capacity:
-
1000-5000 (kg)
-
Battery Type:
-
Lead Aicd Battery
-
Battery:
-
72V/260Ah
-
Standard Lift height:
-
3000mm
-
Body length:
-
2390mm
-
Body width:
-
1160mm
-
Overall Height:
-
2030mm
-
wheelbase:
-
1600mm
-
Color:
-
Customer's Request
Lifts 1ton to 5ton electric forklift for sale
Products Description
|
Model
|
10E
|
15E
|
20E
|
|||
|
Rated capacity(kg)
|
1000
|
1500
|
2000
|
|||
|
Rated lifting height(mm)
|
3000
|
3000
|
3000
|
|||
|
Battery
|
60V/120Ah
|
60V/140Ah
|
60V/210Ah
|
|||
|
Battery weight(kg)
|
150
|
165
|
300
|
|||
|
Total weight(with battery)(kg)
|
1530
|
2150
|
2500
|
|||
|
Load center distance(mm)
|
500
|
500
|
500
|
|||
|
Performance
|
|
|
|
|||
|
Lifting speed,laden/unladen(mm/s)
|
220/230
|
200/220
|
180/200
|
|||
|
Lowering speed,laden/unladen(mm/s)
|
550
|
550
|
550
|
|||
|
Drive motor(kw)
|
5
|
5
|
5
|
|||
|
Lift motor(kw)
|
4.5
|
4.5
|
4.5
|
|||
|
Tilt of the mast,F/R(°)
|
5/10
|
5/10
|
5/10
|
|||
|
Service brake/parking brake
|
Hydraulic/Mechanial
|
Hydraulic/Mechanial
|
Hydraulic/Mechanial
|
|||
|
Size
|
|
|
|
|||
|
Wheelbase(mm)
|
1330
|
1550
|
1550
|
|||
|
Body size(L*W*H mm)
|
1980*1020*2017
|
2230*1096*2030
|
2230*1096*2030
|
|||
|
Fork size(T*W*L mm)
|
32*100*1070
|
35*100*1070
|
40*100*1070
|
|||
|
Turning radius(mm)
|
2050
|
2200
|
2280
|
|||
|
Groubd clearance under mast(mm)
|
77
|
88
|
88
|
|||
|
Model
|
25E
|
30E
|
50E
|
|||
|
Rated capacity(kg)
|
2500
|
3000
|
5000
|
|||
|
Rated lifting height(mm)
|
3000
|
3000
|
3000
|
|||
|
Battery
|
72V/210Ah
|
72V/260Ah
|
80V/500Ah
|
|||
|
Battery weight(kg)
|
360
|
430
|
1100
|
|||
|
Total weight(with battery)(kg)
|
3150
|
4150
|
7100
|
|||
|
Load center distance(mm)
|
500
|
500
|
500
|
|||
|
Performance
|
|
|
|
|||
|
Lifting speed,laden/unladen(mm/s)
|
210/250
|
200/300
|
250/280
|
|||
|
Lowering speed,laden/unladen(mm/s)
|
450
|
450
|
450
|
|||
|
Drive motor(kw)
|
9
|
9
|
18
|
|||
|
Lift motor(kw)
|
7.5
|
9
|
25
|
|||
|
Tilt of the mast,F/R(°)
|
5/10
|
5/10
|
6/12
|
|||
|
Service brake/parking brake
|
Hydraulic/Mechanial
|
Hydraulic/Mechanial
|
Hydraulic/Mechanial
|
|||
|
Size
|
|
|
|
|||
|
Wheelbase(mm)
|
1600
|
1850
|
2040
|
|||
|
Body size(L*W*H mm)
|
2390*1160*2030
|
2700*1225*2057
|
2990*1585*2340
|
|||
|
Fork size(T*W*L mm)
|
40*100*1070
|
45*122*1070
|
55*150*1070
|
|||
|
Turning radius(mm)
|
2370
|
2680
|
2700
|
|||
|
Groubd clearance under mast(mm)
|
88
|
82
|
160
|
|||
Features
1.Mechanical joystick, easy to operate.
2.Thickened mast, strong bearing capacity.
3.Hydraulic power steering wheel, easy to drive.
4.LED light, high brightness, energy saving.
5.Engineering rubber tires, suitable for various road surfaces.
6.Electrophoretic spray paint, smooth and not easy to rust
6.Electrophoretic spray paint, smooth and not easy to rust
