Quick Details
-
Range of Spindle Speed(r.p.m):
-
30 - 85 r.p.m
-
Width of bed (mm):
-
1
-
Max. Turned Length (mm):
-
170 mm
-
Spindle Motor Power(kW):
-
1.1
-
Year:
-
2020
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DIJIN
-
Model Number:
-
T8445
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
690x890x880mm
-
Weight (KG):
-
320 KG
-
Automatic Grade:
-
Semi-automatic
-
Processing diameter Brake Disc:
-
180-450mm
-
working travel:
-
170mm
-
Motor power:
-
1.1kw
-
warranty:
-
a year
-
Function:
-
truck brake drum disc lathe
-
Power (kW):
-
1.1
-
Max. Swing Diameter (mm):
-
410
-
Certification:
-
CE
Quick Details
-
Max. Length of Workpiece (mm):
-
0
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
20
-
Range of Spindle Speed(r.p.m):
-
30 - 85 r.p.m
-
Width of bed (mm):
-
1
-
Max. Turned Length (mm):
-
170 mm
-
Spindle Motor Power(kW):
-
1.1
-
Year:
-
2020
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DIJIN
-
Model Number:
-
T8445
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
690x890x880mm
-
Weight (KG):
-
320 KG
-
Automatic Grade:
-
Semi-automatic
-
Processing diameter Brake Disc:
-
180-450mm
-
working travel:
-
170mm
-
Motor power:
-
1.1kw
-
warranty:
-
a year
-
Function:
-
truck brake drum disc lathe
-
Power (kW):
-
1.1
-
Max. Swing Diameter (mm):
-
410
-
Certification:
-
CE

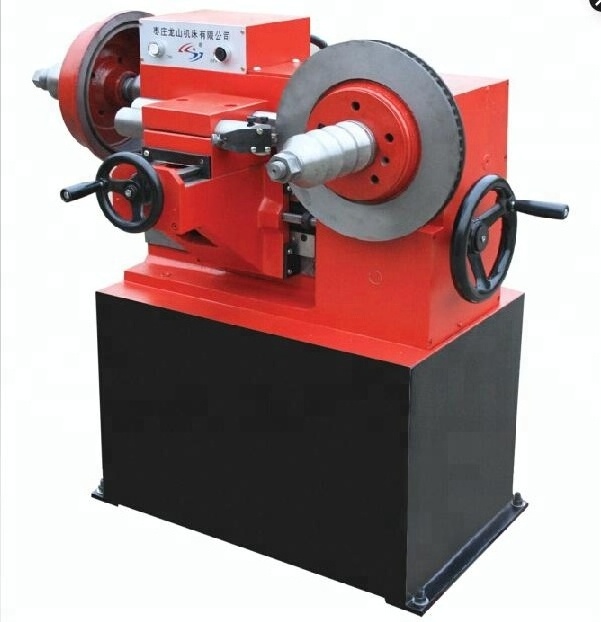

Brake drum lathe T8445
Brake disc repair lathe of small bus and car T8445 is widely used to repair brake disk and brake drum of cars, buses and trucks, its maximum processing diameter is 450mm. Brake disc repair lathe of small bus and car T8445 is high efficiency, easy operation and energy saving. Brake drum lathe machine is the effective machine tool for the car repair shop.
1. The brake drum lathe machine has strong rigidity. The transmission system and the base are made ad a whole to increase the rigidity of the machine tool.
2. Wide processing range. The effective stroke basically covers all sizes of the car’s brake disc or brake drum, especially suitable for larger brake discs.
3. It can realize the rapid lifting and the walking knife move forward and backward, improves the working efficiency.
4. Very practical. Comparing the high cost of change new brake disk and brake drum for famous car, repairing is much better choice for car owners.
|
Item |
T8435 |
T8445 |
T8465 |
|
|
Brake drum diameter |
mm |
180-350 |
180-450 |
180-650 |
|
Brake disc diameter |
mm |
≤350 |
≤400 |
≤500 |
|
Working travel |
mm |
150 |
170 |
250 |
|
Spindle rotation speed |
rpm |
80 / 120 |
30 / 52 / 85 |
30 / 52 / 85 |
|
Feeding capacity |
mm/r |
0.16 |
0.16 |
0.16 |
|
Main motor |
Kw/rpm |
0.55 |
1.1 |
1.1 |
|
Net weight |
Kg |
240 |
320 |
580 |
