Other parameters
Wavelength: 380nm ultraviolet light
Power: 220mW (customizable for other powers)
Working voltage: DC 2.8-5.2V
Working current: ≤ 400mA
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
0.5 KG
-
Band range:
-
visible light
-
Operation mode:
-
continuous
-
Incentive method:
-
Electric excitation type
-
Working material:
-
semiconductor
-
Light path:
-
internal light path
-
Transmission signal:
-
single power supply type
-
Speed:
-
High speed
-
Channel:
-
Single channel
-
Output wavelength:
-
380 (nm)
Quick Details
-
Place of Origin:
-
Jilin, China
-
Spare Parts Type:
-
Laser, Laser
-
Brand Name:
-
Realpoo
-
Weight (KG):
-
0.5 KG
-
Band range:
-
visible light
-
Operation mode:
-
continuous
-
Incentive method:
-
Electric excitation type
-
Working material:
-
semiconductor
-
Light path:
-
internal light path
-
Transmission signal:
-
single power supply type
-
Speed:
-
High speed
-
Channel:
-
Single channel
-
Output wavelength:
-
380 (nm)
Product Description
Specification
|
item
|
value
|
|
Spare Parts Type
|
Laser
|
|
Video outgoing-inspection
|
Not Available
|
|
Machinery Test Report
|
Not Available
|
|
Marketing Type
|
New Product 2020
|
|
Brand Name
|
Realpoo
|
|
Key Selling Points
|
Long Service Life
|
|
Showroom Location
|
None
|
|
Weight (KG)
|
0.5KG
|
|
Band range
|
visible light
|
|
|
|

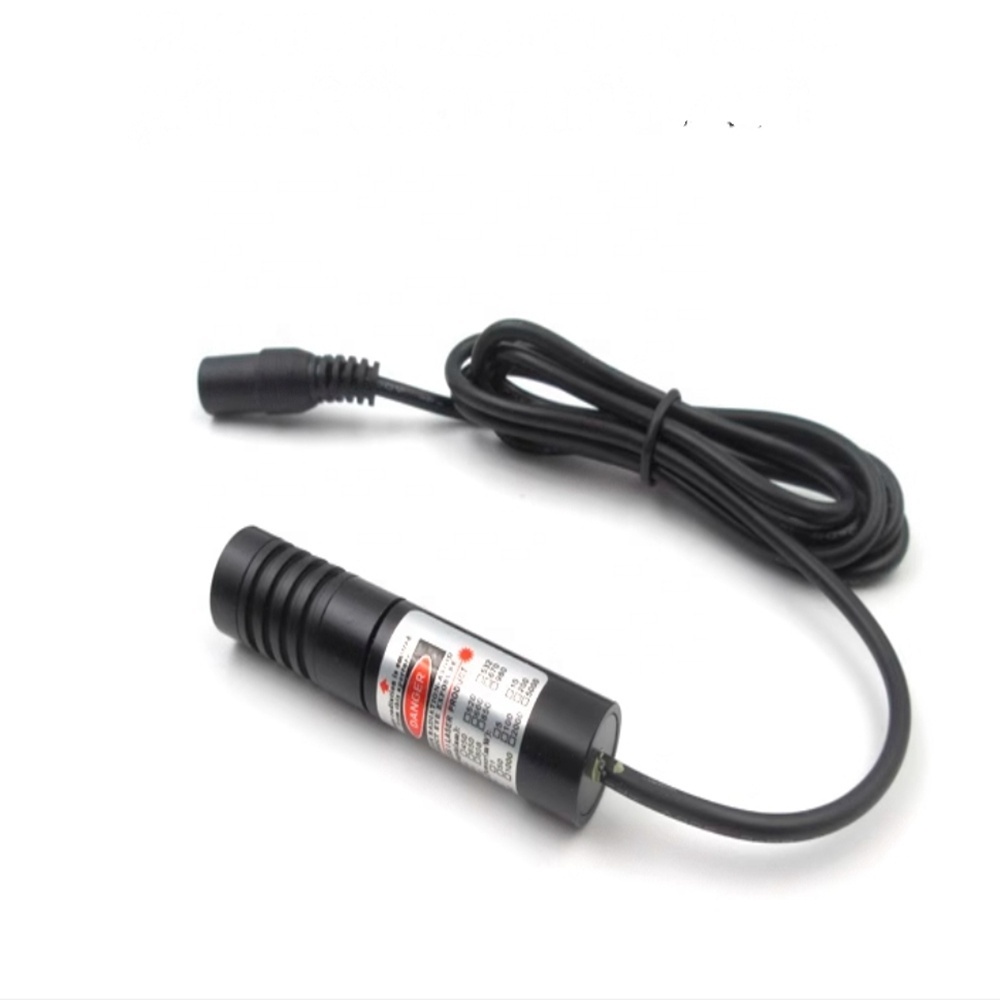

380nm 220mW externally modulated ultraviolet straight
ZLM220AX380-16GD
point pattern produced:
During the day, the indoor distance is 0-200 meters
During the day, the outdoor distance is 0-80 meters
Playing 0-500 meters in a dark environment
380nm 220mW externally modulated ultraviolet crosshair laser
ZLM220AL380-16GD
Straight line produced: Up to 5 meters in indoor environment The installation height of the straight line can be used from 0 meters to 3 meters
380nm 220mW externally modulated ultraviolet spot laser
ZLM220AL380-16GD
Crosshair line produced
Up to 3 meters in indoor working environment
The installation height of the crosshair can be used from 0 meters to 3 meters
The external debugging design can adjust the size of the light point/the thickness of the line width. After adjustment, the light head can be locked with a locking knob to prevent shock and fall. Spot products: The size of the circular spot can be adjusted,and the spot size can be adjusted from 0.8 millimeters to a few centimeters. Linear product: The width of the thin line can be adjusted from 0.8 millimeters to a few centimeters. When adjusting the line width, the position of the line remains unchanged,ensuring accuracy and reliability.
