- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
1100
-
Brand Name:
-
Ruixin
-
Place of Origin:
-
Zhejiang, China
-
Die Size(mm):
-
30 - 70 mm
-
Model Number:
-
400 Model
-
Year:
-
2024
-
Voltage:
-
380V /220/440/415V
-
Dimension(L*W*H):
-
2100mm x 1700mm x2400mm
-
Key words:
-
Film Blow Machine
-
After-sales Service Provided:
-
One Year
-
SCREW MATERIAL:
-
Bi-matellic(38CrMoAlA)
-
Take-up Speed:
-
10-65m/min
-
Consumption:
-
10-15Kw/H
-
Die head Material:
-
40Cr
-
Die head Plating Chrome:
-
80micro
-
Usage:
-
Plastic bag /pack film
-
Gear box Brand:
-
Shuguang Brand
-
Suitable material:
-
HDPE.LDPE. LLDPE
Quick Details
-
Output (kg/h):
-
10 - 30
-
Number of Layers:
-
Single-layer
-
Screw diameter (mm):
-
35
-
Weight (KG):
-
1100
-
Brand Name:
-
Ruixin
-
Place of Origin:
-
Zhejiang, China
-
Die Size(mm):
-
30 - 70 mm
-
Model Number:
-
400 Model
-
Year:
-
2024
-
Voltage:
-
380V /220/440/415V
-
Dimension(L*W*H):
-
2100mm x 1700mm x2400mm
-
Key words:
-
Film Blow Machine
-
After-sales Service Provided:
-
One Year
-
SCREW MATERIAL:
-
Bi-matellic(38CrMoAlA)
-
Take-up Speed:
-
10-65m/min
-
Consumption:
-
10-15Kw/H
-
Die head Material:
-
40Cr
-
Die head Plating Chrome:
-
80micro
-
Usage:
-
Plastic bag /pack film
-
Gear box Brand:
-
Shuguang Brand
-
Suitable material:
-
HDPE.LDPE. LLDPE
Product Description

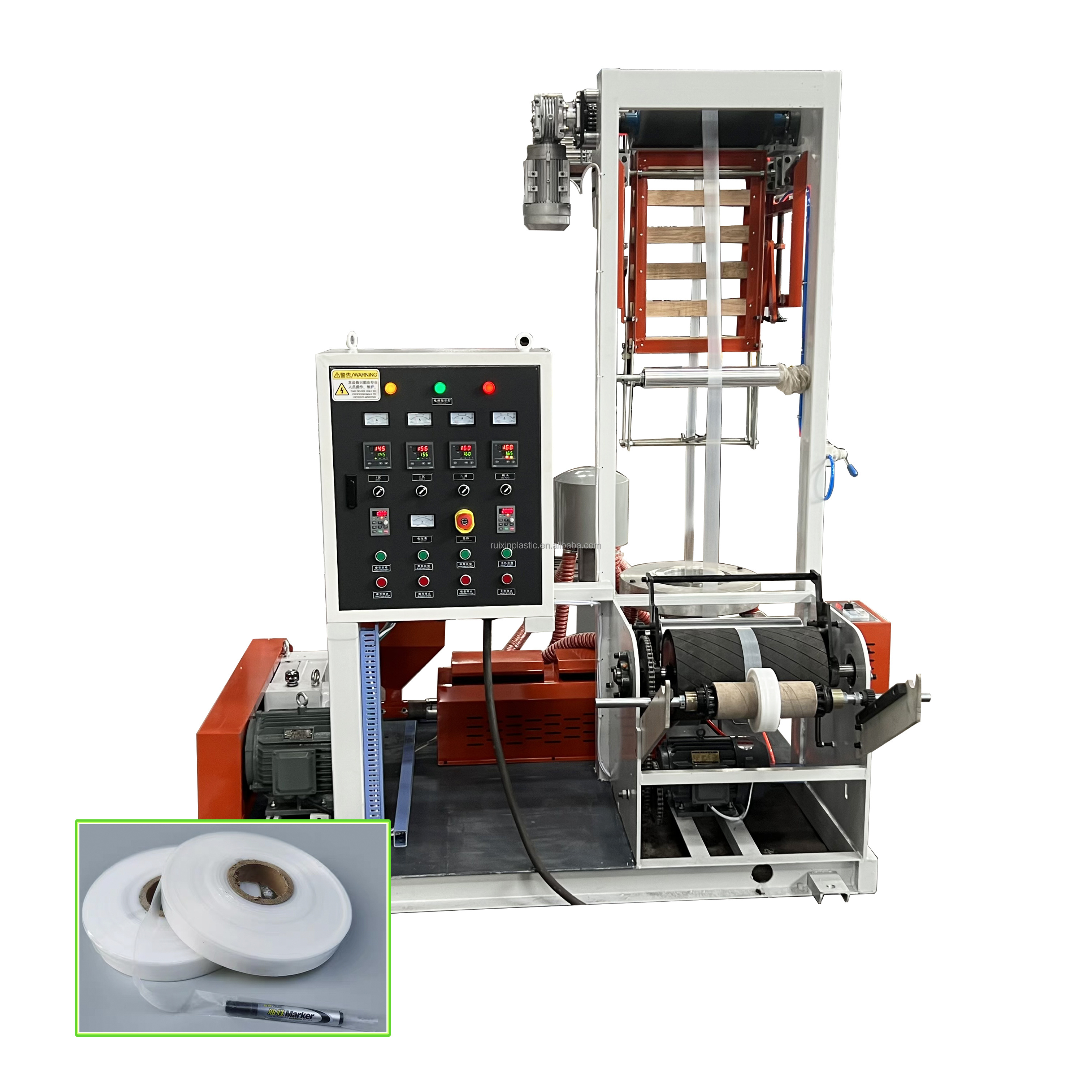

The mini film blow machine is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film,agricultural covering film, bag or film for textile and clothing and other packing material.
The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.
The screw and material barrel adopt 38 CrMoAl, which has been nitrogen treated and the traction frame adopt
thick iron plate with more stable and good quality
The die head adopt 40cr steel with plating chrome ,with advantage -abrasive resistance ,high hardness and perfect plasticizing !
The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.
The screw and material barrel adopt 38 CrMoAl, which has been nitrogen treated and the traction frame adopt
thick iron plate with more stable and good quality
The die head adopt 40cr steel with plating chrome ,with advantage -abrasive resistance ,high hardness and perfect plasticizing !
The Die head
The Film bowing Machine is blowing film effect ,stable and with good film
Die head inside
Die head inside plating thick chrome,it will have good plastify with high quality film
The Winder
adopt friction winder ,keep film good flatness
Screw Surface
Screw material adopt 38CrmoAl with bimetallic ,long life,good resistance,good corrosion
Pack
Roll film
Flat bag
Specification
|
Mode
|
Mini RSJ-400 Model
|
|
Film Width
|
3cm to 30cm
|
|
Film Thickness
|
0.008mm-0.1mm
|
|
Output
|
10-20KG/H (depending film size)
|
|
Screw Dia
|
35mm
|
|
Screw L/D
|
28:1, Screw bimetallic Quality
|
|
Screw length
|
1050mm
|
|
Screw Speed
|
10-100r/min
|
|
Air ring
|
Adopt single lips
|
|
Raw material
|
HDPE /LDPE /LLDPE /Recycling
|
|
Die Head dia
|
25-50mm
|
|
Main motor Capacity
|
5.5Kw with inverter control
|
|
Gear Box model
|
112# Shuguang Brand
|
|
Total Capacity
|
Approx 10kw
|
|
Overall Dimensions (LxWxH)
|
2.2m x 1.7m x 2.4m
|
|
Weight
|
1070KG
|
