Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YF
-
Model Number:
-
7T3402RC
-
Condition:
-
New
-
Weight:
-
10
-
Max Jaw Opening:
-
/
-
Height:
-
/
-
Width:
-
/
-
Part number:
-
7T3402RC
-
Material:
-
Alloy Steel
-
Application:
-
CAT E325 excavator
-
Hardness:
-
48-52HRC
-
Impact:
-
More than 20J
-
Certification:
-
ISO9001:2015
-
Color:
-
Yellow or as customer's request
-
Packing:
-
Wooden Package
-
Delivery:
-
15-30 days
Quick Details
-
Suitable Excavator(ton):
-
1.2ton, 20ton, 70ton, 1ton, 4ton, 9ton, 2ton
-
Bucket capacity:
-
1.15m³
-
Bucket type:
-
Other
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YF
-
Model Number:
-
7T3402RC
-
Condition:
-
New
-
Weight:
-
10
-
Max Jaw Opening:
-
/
-
Height:
-
/
-
Width:
-
/
-
Part number:
-
7T3402RC
-
Material:
-
Alloy Steel
-
Application:
-
CAT E325 excavator
-
Hardness:
-
48-52HRC
-
Impact:
-
More than 20J
-
Certification:
-
ISO9001:2015
-
Color:
-
Yellow or as customer's request
-
Packing:
-
Wooden Package
-
Delivery:
-
15-30 days
Products Description
|
Product Name
|
|

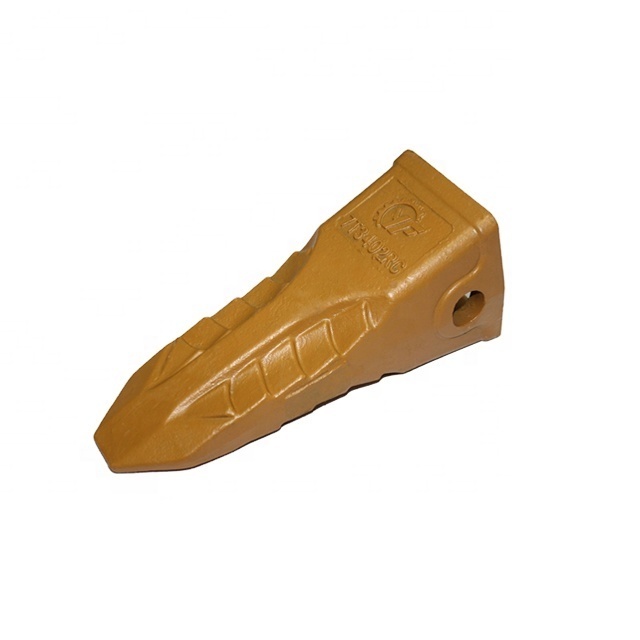

Excavator fish scale bucket teeth 7T3402RC for sale
|
|
|
|||
|
Part Number
|
|
7T3402RC
|
|
|
|||
|
Model
|
|
CAT 325
|
|
|
|||
|
Family
|
|
J400
|
|
|
|||
|
Shape
|
|
Rock Tip
|
|
|
|||
|
Hardness
|
|
48-52HRC
|
|
|
|||
|
Impact Value
|
|
>20J
|
|
|
|||
Match parts information
|
Adapter
|
|
6I6404 / 125-8404 / 125-8405 / 125-8406
|
|
|
|||
|
Pin
|
|
7T3408 / 1167408
|
|
|
|||
|
Retainer
|
|
8E8409
|
|
|
|||
|
Application
|
|
General excavation and loading
Low to moderate impact and abrasion |
|
|
|||
Detailed Images
Other related products
Caterpillar J Series families
|
Family
|
Part Numbers
|
Description
|
Weight(kg)
|
Pin
|
Retainers
|
|
J200
|
1U3202
|
Standard long
|
1.3/1.5
|
9W7112
|
8E6209
|
|
|
1U3202RC
|
Rock chisel
|
1.3/1.4
|
|
|
|
|
1U3202TL
|
Tiger
|
1.2
|
|
|
|
|
1U3202TVC
|
Twin tiger
|
1.5
|
|
|
|
|
4T2203
|
Heavy duty abrasion
|
1.41
|
|
|
|
|
4T1204
|
Flush mount corner side-pin adapter
|
2.1
|
|
|
|
|
8J7525
|
Bottom strap adapter
|
1.5
|
|
|
|
|
8E2184/9W6207
|
Two strap center adapter bolt on
|
3.3
|
|
|
|
|
119-3205
|
Two strap center adapter
|
1.5
|
|
|
|
|
119-3204
|
Two strap center adapter
|
1.5
|
|
|
|
J225
|
6Y3222
|
Standard long
|
2
|
6Y3228
|
8E6259/ 3G9609
|
|
|
EX70(HL)
|
Standard long
|
2/2.2
|
|
|
|
|
EX70RC
|
Rock chisel
|
2.1/2.5
|
|
|
|
|
208-5235
|
Penetration
|
1.5
|
|
|
|
|
6Y3224
|
Two Strap Adapter Center
|
2.8
|
|
|
|
J250
|
1U3252
|
Standard
|
2.6/2.8
|
8E6258/ 9J2258
|
8E6259/ 3G9609
|
|
|
1U3252TL
|
Tiger
|
2.8
|
|
|
|
|
1U3252RC
|
Rock chisel
|
3/3.1/3.4
|
|
|
|
|
1U3252PT
|
Penetration
|
5.6
|
|
|
|
|
1U3252SYL
|
Flat Penetrator
|
3.1
|
|
|
|
|
1U3252TVC
|
Twin tiger
|
2.9
|
|
|
|
|
9N4252
|
Heavy duty long
|
4
|
|
|
|
|
9N4253
|
Heavy duty abrasion
|
4.4
|
|
|
|
|
4T2253
|
Heavy duty abrasion
|
5.2
|
|
|
|
|
1U1254
|
Flush Mount Side-pin Adapter Center
|
5.3
|
|
|
|
|
6Y3254
|
Two Strap Adapter weld on
|
3.7
|
|
|
|
|
3G0169
|
Flush Mount Side-pin Adapter Center Bolt-on
|
4.6
|
|
|
|
J300
|
1U3302
|
Standard long
|
4
|
9J2308/ 8E6308
|
8E6259/ 3G9609
|
|
|
1U3302RC
|
Rock chisel
|
4.8/5.1
|
|
|
|
|
1U3302TL
|
Tiger
|
4
|
|
|
|
|
1U3302PT
|
Penetration
|
6.7
|
|
|
|
|
1U3302SYL
|
Flat Penetrator
|
4.1
|
|
|
|
|
1U3302WT
|
Twin Tiger
|
4.2
|
|
|
|
|
9N4302
|
Standard long
|
5.5
|
|
|
|
|
9N4303
|
Heavy duty abrasion
|
7.7
|
|
|
|
|
4T2303RP
|
Rock Penetration
|
7.1
|
|
|
|
|
9W1304
|
Two Strap Adapter Center ( 30/32mm ,bevel)
|
6.1
|
|
|
|
|
3G5307
|
Two Strap Adapter Center Bolt-on
|
13.2
|
|
|
|
|
1U0307
|
Two Strap Adapter Center Bolt-on
|
10.3/10.5
|
|
|
|
|
3G6304
|
Two Strap Adapter weld on
|
7/7.2
|
|
|
|
|
3G6305
|
Two Strap Adapter Right Hand
|
6.9
|
|
|
|
|
3G6306
|
Two Strap Adapter Left Hand
|
6.9
|
|
|
|
|
3G4308
|
Two Strap Adapter Corner Left Hand Bolt-on
|
14.8
|
|
|
|
|
3G4309
|
Two Strap Adapter Corner Right Hand Bolt-on
|
14.8
|
|
|
|
J350
|
1U3301
|
Standard Short
|
3.6
|
9J2358/8E6358
|
8E6359/3G9549
|
|
|
1U3351
|
Standard Short
|
4.4
|
|
|
|
|
1U3352
|
Standard long
|
5.2/5.4/5.7
|
|
|
|
|
1U3352RC
|
Rock chisel
|
7/7.2/7.7
|
|
|
|
|
1U3352RC-LD
|
Rock chisel LD
|
6.7
|
|
|
|
|
1U3352RC-HD
|
Rock chisel HD
|
8.0
|
|
|
|
|
1U3352TL
|
Tiger
|
5.1/6.3
|
|
|
|
|
1U3352WTL
|
Twin Tiger
|
6.9
|
|
|
|
|
1U3352SYL
|
Flat Penetrator
|
6.8
|
|
|
|
|
1U3352PT
|
Penetration
|
10.2
|
|
|
|
|
9W8352
|
Standard
|
5.4
|
|
|
|
|
4T2353
|
Abrasion
|
10.3
|
|
|
|
|
9J4359
|
Penetration
|
6.5
|
|
|
|
|
9N4353
|
Heavy Duty Abrasion
|
10.8/10.9
|
|
|
|
|
144-1358
|
Heavy Duty Penetration
|
10.85
|
|
|
|
|
3G8354
|
Two Strap Adapter Center Bolt-on
|
9.4/9.7
|
|
|
|
|
3G8355
|
Right-hand Side-pin Adapter
|
9.6
|
|
|
|
|
3G8356
|
Left-hand Side-pin Adapter
|
9.6
|
|
|
|
|
3G3357
|
Two Strap Adapter Center Bolt-on
|
16.7
|
|
|
|
|
3G5358
|
Two Strap Adapter Corner Left Hand Bolt-on
|
23.8
|
|
|
|
|
3G5359
|
Two Strap Adapter Corner Right Hand Bolt-on
|
23.9
|
|
|
|
|
6I6354
|
Two Strap Adapter Center
|
9.4/10.3
|
|
|
|
|
6I6355
|
Corner Adapter Right Hand Bolt On
|
9.6
|
|
|
|
|
6I6356
|
Corner Adapter Left Hand Bolt-on
|
9.6
|
|
|
|
|
1U1354
|
Flush Mount Side-pin Adapter Center
|
15
|
|
|
|
|
1U1357
|
Two Strap Adapter Center Bolt-on
|
19
|
|
|
|
|
9U9694
|
Adapter
|
18.5
|
|
|
|
J400
|
6Y7409
|
Penetration
|
9.4
|
7T3408
|
8E8409/7T3409
|
|
|
7T3402
|
Standard long
|
8.5
|
|
|
|
|
7T3402T
|
Tiger
|
9.5
|
|
|
|
|
7T3402C
|
Flat Penetrator
|
10.6
|
|
|
|
|
7T3402RC
|
Rock chisel
|
9.4/10/10.2
|
|
|
|
|
7T3402RE
|
Rock chisel Fish
|
9.9
|
|
|
|
|
7T3402TL
|
Tiger
|
8.8/9.4/10
|
|
|
|
|
8E4402
|
Heavy Duty Long
|
10.5
|
|
|
|
|
1359400
|
Heavy Duty Penetration
|
17.6
|
|
|
|
|
6I6404
|
Two Strap Adapter Center
|
12.5/13/13.5
|
|
|
|
|
6I6406
|
Corner Adapter Left Hand Bolt-on ( 50mm, bevel gap)
|
12.6
|
|
|
|
J450
|
1U3451
|
Standard
|
10.6
|
1U1458/6Y2527
|
8E6359/3G9549
|
|
|
1U3452
|
Standard
|
11.5
|
|
|
|
|
1U3452RC
|
Rock chisel
|
12/13/13.7/14.8
|
|
|
|
|
1U3452C
|
Flat Penetrator
|
13.9
|
|
|
|
|
1U3452TL
|
Tiger
|
11.3/11.7
|
|
|
|
|
1U3452WT
|
Twin Tiger
|
15
|
|
|
|
|
1U3452PT
|
Penetration
|
18.5
|
|
|
|
|
9W8451
|
Standard short
|
11.2
|
|
|
|
|
9W8452
|
Standard long
|
11.2
|
|
|
|
|
9W8452TL
|
Tiger
|
11.7/12.2
|
|
|
|
|
9W8452PT
|
Penetration
|
18.9
|
|
|
|
|
7T8459
|
Penetration
|
10.9
|
|
|
|
|
8E0464
|
Flush Mount Center Adapter
|
20.8
|
|
|
|
|
6I6464
|
Adapter
|
19.5/20/20.5
|
|
|
|
J460
|
9N4452
|
Heavy Duty Long
|
16
|
8E0468
|
8E8469/8E0469
|
|
|
9N4452RC
|
Rock chisel
|
11.4
|
|
|
|
|
9N4453
|
Heavy Duty Abrasion
|
22
|
|
|
|
|
9W8459
|
Penetration
|
10.5
|
|
|
|
|
9W8452RC
|
Rock chisel
|
11.8
|
|
|
|
|
6Y2553
|
Heavy Duty Abrasion
|
30.8
|
|
|
|
|
8E6464
|
Two Strap Adapter Center Adapter
|
19.5/19.8/20/20.5
|
|
|
|
J550
|
1U3552TL
|
Tiger
|
16.3/17.2
|
1U1558/6Y8558
|
8E5559/3G9559
|
|
|
1U3552RC
|
Rock chisel
|
22
|
|
|
|
|
1U3552RC-HD
|
Rock chisel
|
27.3
|
|
|
|
|
9W8552
|
Standard long
|
19.2
|
|
|
|
|
9W8552TL
|
Tiger
|
14.8
|
|
|
|
|
9W8552PT
|
Penetration
|
28.7
|
|
|
|
|
9W8552RC
|
Rock chisel
|
16.9/17.6
|
|
|
|
|
9W8552PTU
|
Penetration
|
29.5
|
|
|
|
|
9N4552
|
Heavy Duty Long
|
24.6
|
|
|
|
|
7T6559/9W8559
|
Penetration
|
17/15.7
|
|
|
|
|
3G9494
|
Two Strap Adapter Center
|
30
|
|
|
|
|
6I6554
|
Two Strap Adapter Center
|
31.5/33.3/34
|
|
|
|
|
6I6556
|
Corner Adapter Left Hand Bolt-on
|
29
|
|
|
|
J600
|
6I6602
|
Standard long
|
32.00
|
6I6608
|
6I6609
|
|
|
6I6602RC
|
Rock chisel
|
32.50
|
|
|
|
|
6I6602TL
|
Tiger
|
35/30.9
|
|
|
|
|
6I6603PT
|
Penetration
|
47.8
|
|
|
|
|
7Y0602
|
Heavy Duty Long
|
43
|
|
|
|
|
6I6604
|
Two Strap Adapter Center( 75mm, bevel)
|
52.5/62
|
|
|
|
J700
|
8Y003
|
Flat Penetrator
|
50
|
4T4708/1134708
|
4T4707/1134709
|
|
|
4T4702
|
Standard long
|
38.5kg
|
|
|
|
|
4T4702RC
|
Rock chisel
|
46.5
|
|
|
|
|
4T4703PT
|
Penetration
|
60
|
|
|
|
|
133-0704-100
|
Two Strap Adapter Center( 100mm, bevel)
|
92.5
|
|
|
|
J800
|
KT394SYL
|
Flat Penetrator
|
74
|
1341808/1020101
|
1341809/1012874
|
|
|
KT394TL
|
Tiger
|
66
|
|
|
|
|
LC800RC
|
Rock chisel
|
68
|
|
|
|
|
4T4704
|
Adapter (105mm)
|
85
|
|
|
Production workshop
Quality Control
YF Quality Reports
We are partners
Customer Review
See what our customers saying about us
YF Markets
Application
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer of GET parts.
Q: How long is your delivery time?
A: It depends on order quantity. Generally, if stocks available, delivery time will be within a week, if there is no stocks, new production will be around 15-30days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer free sample but freight collect.
Q: What is your terms of payment ?
A: T/T, L/C at sight. Others, welcome to contact us for negotiation.
