Quick Details
-
Voltage:
-
220v/380v
-
Power:
-
3-175kw
-
Dimension(L*W*H):
-
Varied
-
Weight (KG):
-
30000
-
Product name:
-
New Technology Red Vinasse Mud Dryer Machine Price
-
input tempreture(C):
-
≤800
-
rotation speed:
-
1.5-6r/min
-
After-sale service:
-
The whole using life
-
Installation:
-
Under our engineer's guide
-
Foundation drawing:
-
Provided
-
Delivery time:
-
30 days
-
maintenance:
-
easy and convenient
-
Heating source:
-
Gas coal oil electric
-
Price:
-
Negotation
Quick Details
-
Type:
-
Rotary Drying Equipment
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hongji
-
Voltage:
-
220v/380v
-
Power:
-
3-175kw
-
Dimension(L*W*H):
-
Varied
-
Weight (KG):
-
30000
-
Product name:
-
New Technology Red Vinasse Mud Dryer Machine Price
-
input tempreture(C):
-
≤800
-
rotation speed:
-
1.5-6r/min
-
After-sale service:
-
The whole using life
-
Installation:
-
Under our engineer's guide
-
Foundation drawing:
-
Provided
-
Delivery time:
-
30 days
-
maintenance:
-
easy and convenient
-
Heating source:
-
Gas coal oil electric
-
Price:
-
Negotation
Products Description

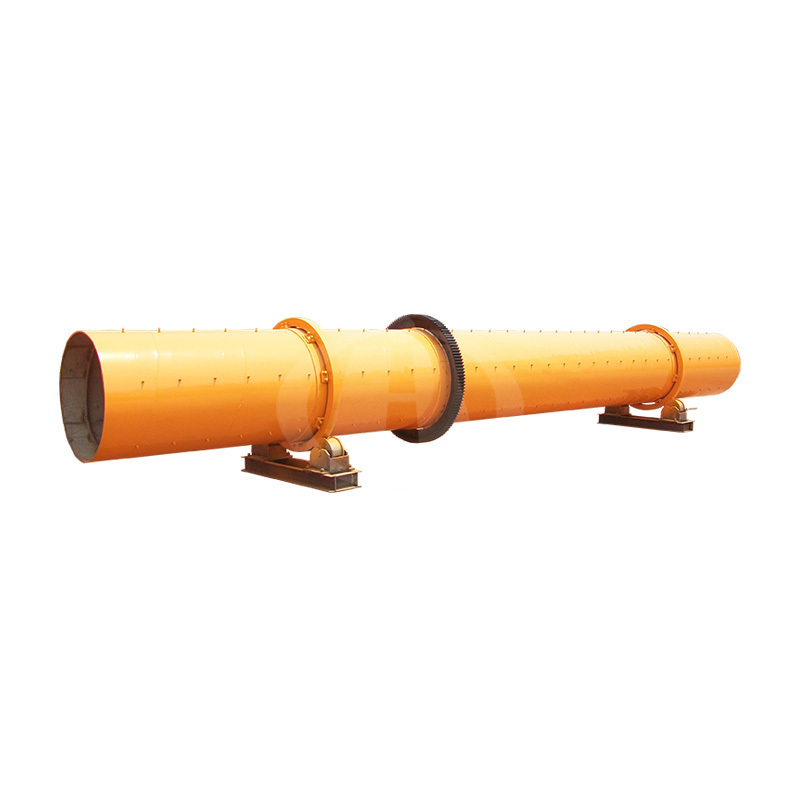

INTRUDUCTION FOR ROTARY DRYER
|
|
Rotary dryer is widely used to dry materials in industries like cement, mine, construction, chemical, food, compound fertilizer, etc. Thermocouples are installed in feeding and discharging units to control temperature. Temperature change of the dryer also can be indicated by the thermometer, which is convenient for temperature control inside the dryer ( it is usually 250-350℃).
|
|
|
Powder & particle:
Sands, limestone, stones, clay, mineral filter cake, coal, iron sulphate, filter cakes, fly ash, gypsum etc.
Damp and sticky material: Coal slime, sewage sludge, bentonite, Kaolin etc. Corrosive material: Distillers ‘grains, Fertilizer, animal dung, slag etc. Biomass material: Sawdust, wood chips etc. |
|
|
1.International standard with ISO, CE certificate.
|
|
|
2.Simple system, safe and easy operation.
|
|
|
3.Flexibility in fuels used (NG, Oil, Coal ect.).
|
|
|
4.Year of experience with all types of dryers.
|
|
|
5.Capable of installation anywhere in world.
|
|
|
6.In house engineering for custom fit applications.
|
|
|
7.Proven design.
|
Details Images
Point 1-Steel Plate Selection
Chemical analysis was carried out on the material inspection, according to the requirements of GB700-2006, dryer drum thickness <= 20 mm we use Q245 - A, > 20 mm we use Q245 - B; According to the GB/T 2970-2004 class ii, the range of 60 mm weld edge every board before cutting for ultrasonic flaw detection.
Point 2-Dryer Drum Welding
The dryer cylinder section for toroidal welding, longitudinal along the entire circumference of not more than two weld article number, and shell welds shall be full, the minimum is not lower than the parent metal surface, the top should not be higher than 3mm, feed plate weld should be smooth.Weld edge bite depth should not be greater than 0.5 mm, continuous length should not be greater than 100 mm, should not exceed the total length of each weld bite edge which 10% of the weld length.
Point 3-nspection
Examination all the parts according to the drawing after processing completion. praying primer, rust preventing paint, and heat resistance paint.
Product Paramenters
