Quick Details
-
Max. Spindle Speed (r.p.m):
-
2000 r.p.m
-
Width of bed (mm):
-
300 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
880
-
Travel (X Axis)(mm):
-
390 mm
-
Travel (Z Axis)(mm):
-
880 mm
-
Positioning Accuracy (mm):
-
0.006
-
Place of Origin:
-
Shandong,China
-
Dimension(L*W*H):
-
2150*1390*1750
-
Brand Name:
-
Matsumoto
-
Model Number:
-
CLK6166
-
Voltage:
-
380v 50HZ
-
Weight (KG):
-
2200
-
Max. swing over bed (mm)(inch):
-
770(30')
-
Max. Diameter of wheel(mm) (inch):
-
710(28')
-
Max. Stroke of the X-axis(mm):
-
390
-
Max. Stroke of the Z-axis (mm):
-
880
-
Width of the rail (mm):
-
300
-
Length of the rail (mm):
-
1320
-
Size of the three-jaw chuck (inch):
-
13'
-
Range of spindle speed (RPM):
-
50~2000
-
Spindle speed control:
-
Automatic
-
Spindle bore (mm):
-
60
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
880
-
Year:
-
new date
-
Max. Spindle Speed (r.p.m):
-
2000 r.p.m
-
Width of bed (mm):
-
300 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
880
-
Travel (X Axis)(mm):
-
390 mm
-
Travel (Z Axis)(mm):
-
880 mm
-
Positioning Accuracy (mm):
-
0.006
-
Place of Origin:
-
Shandong,China
-
Dimension(L*W*H):
-
2150*1390*1750
-
Brand Name:
-
Matsumoto
-
Model Number:
-
CLK6166
-
Voltage:
-
380v 50HZ
-
Weight (KG):
-
2200
-
Max. swing over bed (mm)(inch):
-
770(30')
-
Max. Diameter of wheel(mm) (inch):
-
710(28')
-
Max. Stroke of the X-axis(mm):
-
390
-
Max. Stroke of the Z-axis (mm):
-
880
-
Width of the rail (mm):
-
300
-
Length of the rail (mm):
-
1320
-
Size of the three-jaw chuck (inch):
-
13'
-
Range of spindle speed (RPM):
-
50~2000
-
Spindle speed control:
-
Automatic
-
Spindle bore (mm):
-
60

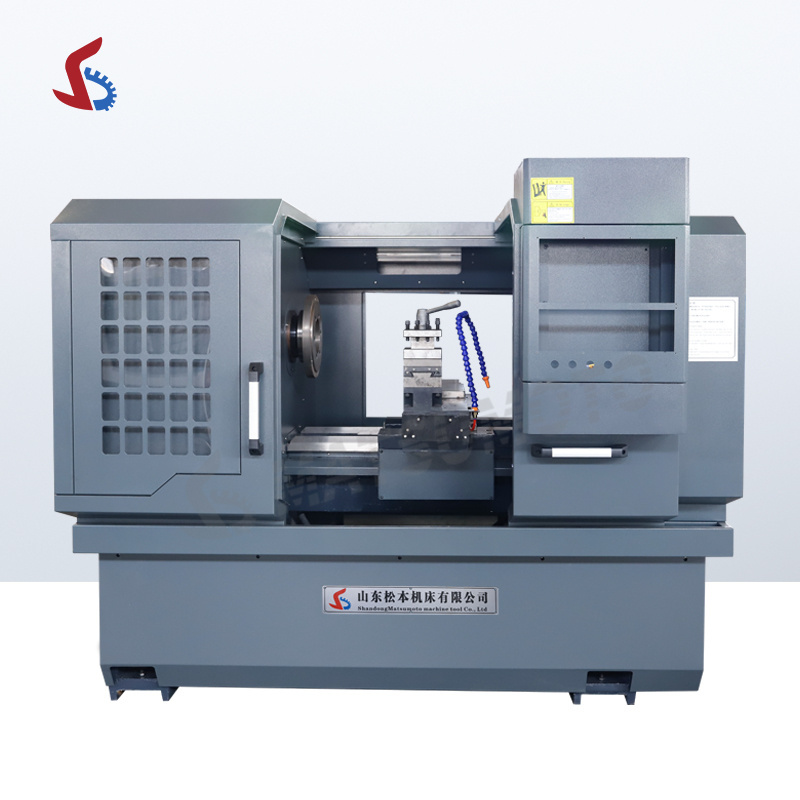

Product Description
Specification
|
ITEMS
|
|
CLK6160/6170
|
|
|
Max. swing over bed (mm)(inch)
|
|
Φ770(30’)
|
|
|
Max. Diameter of wheel(mm) (inch)
|
|
Φ710(28’)
|
|
|
Max. Stroke of the X-axis(mm)
|
|
390
|
|
|
Max. Stroke of the Z-axis (mm)
|
|
880
|
|
|
Width of the rail (mm)
|
|
300
|
|
|
Length of the rail (mm)
|
|
1320
|
|
|
Size of the three-jaw chuck (inch)
|
|
13’
|
|
|
Range of spindle speed (RPM)
|
|
50~2000
|
|
|
Spindle speed control
|
|
Automatic
|
|
|
Spindle bore (mm)
|
|
Φ60
|
|
|
Taper of spindle bore
|
|
1:20(Φ90)
|
|
|
Taper of spindle nose
|
|
A2-10
|
|
|
Adjustable stroke of carrier in X direction
|
|
100mm
|
|
|
Max. size of tool post
|
|
25*25mm
|
|
|
Stations of tool carrier
|
|
4 position
|
|
|
Min. setting unit of motor
|
|
(Z) long 0.001mm,
(X) cross 0.001mm |
|
|
Moving speed of post
|
|
(Z) long 8m/min,
(X) cross 6m/min |
|
|
Motor power
|
|
7.5kw
|
|
|
Weight
|
|
2200KGS
|
|
Company Profile
SHANDONG MATSUMOTO MACHINE TOOL CO., LTD is a professional m
anufacturer
.Except domestic market,our cnc machines exported to Europe, the United States, Southeast Asia and other countries and regions. In order to provide customers the best service, what your requests, including the spare parts posting requests, quality modifying , price inquiry, delivery time checking, we will try our best to feed back within 24 hours.
The history of company development,in 1993, the company and Japan Akimoto Co., Ltd. technical cooperation,set up Matsumoto Machinery Factory, the production of automatic and semi-automatic machine tools.In 1994, the company cooperated with Japan Akimoto Co., Ltd. to produce high precision and high speed spindle.In September 2004, due to government demolition, the company moved to Tengzhou Industrial Park, Shandong Province, established Matsumoto Machine Tool Factory, specializing in the manufacture of precision machine tools. In 2020, due to the change of equity, the company was renamed as Shandong Matsumoto Machine Tool Co., Ltd.
Companies adhere to the "customer first, forge ahead" business philosophy and adhere to the "continuous innovation, customer satisfaction" quality policy,to provide our customers with quality services.
SHANDONG MATSUMOTO MACHINE TOOL CO., LTD looks forward to long-term cooperation with you for common development and achieving a win-win situation!
