Quick Details
-
Mobility:
-
Move by crawler
-
Product name:
-
Water Wells Drilling Rigs
-
Model:
-
FY300
-
Engine:
-
YUCHAI
-
Max Drilling Depth:
-
300Meter
-
Drill rod length:
-
1.5m/2m/3m
-
Drill pipe diameter:
-
76mm 89mm 102mm
-
Power:
-
85 KW
-
Working pressure:
-
1.7-3.0Mpa
-
Rotational torque(Max):
-
5700-7500N.m
-
Brand:
-
ABT
Quick Details
-
Place of Origin:
-
Shandong
-
Dimension(L*W*H):
-
4100*1950*2600 (mm)
-
Weight:
-
7000 KG
-
Mobility:
-
Move by crawler
-
Product name:
-
Water Wells Drilling Rigs
-
Model:
-
FY300
-
Engine:
-
YUCHAI
-
Max Drilling Depth:
-
300Meter
-
Drill rod length:
-
1.5m/2m/3m
-
Drill pipe diameter:
-
76mm 89mm 102mm
-
Power:
-
85 KW
-
Working pressure:
-
1.7-3.0Mpa
-
Rotational torque(Max):
-
5700-7500N.m
-
Brand:
-
ABT
Products Description

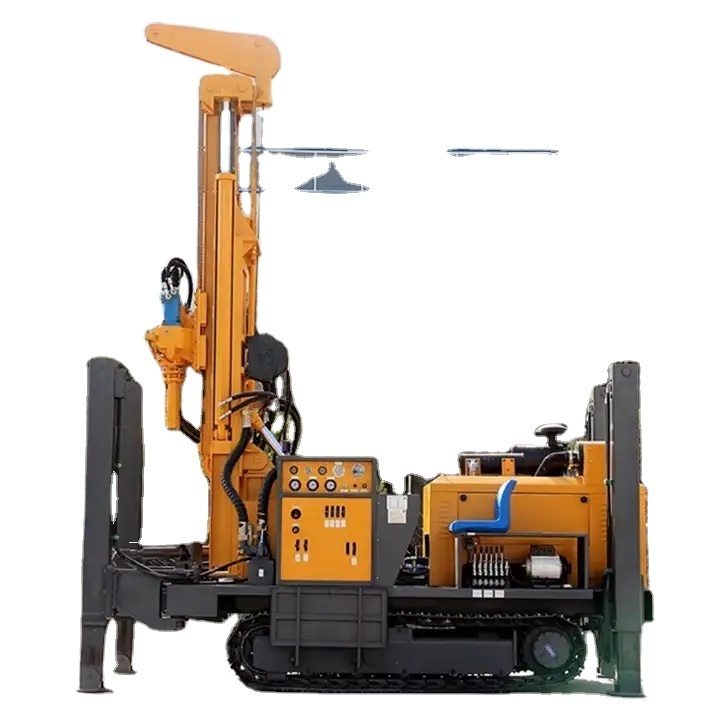

FY300 Crawler water well drilling rig
FY series products have standardized configuration, compact and reasonable structure, fast drilling speed, economy and durability, and low failure rate. It is a lightweight, efficient and multifunctional drilling equipment. It is mainly suitable for drilling water wells, agricultural irrigation wells and other wells. It is especially suitable for water intake projects in mountainous areas and rock formations.
Details Images
Specification
|
Overall machine weight (T)
|
|
|
7
|
|
|||
|
Drilling diameter (mm)
|
|
|
140-325
|
|
|||
|
Drilling depth (m)
|
|
|
300
|
|
|||
|
Disposable recommended length (m)
|
|
|
3.4
|
|
|||
|
Walking speed (Km/h)
|
|
|
2.5
|
|
|||
|
Stand-alone climbing ability (Max.)
|
|
|
30
|
|
|||
|
Host power (Kw)
|
|
|
75.8
|
|
|||
|
Working air pressure (Mpa)
|
|
|
1.7-3.0
|
|
|||
|
Air consumption (m³/min)
|
|
|
17-35
|
|
|||
|
Drill pipe diameter (mm)
|
|
|
Φ76 Φ89 Φ102
|
|
|||
|
Drill pipe length (m)
|
|
|
1.5 2.0 3.0
|
|
|||
|
Lifting force (T)
|
|
|
18
|
|
|||
|
Rotation speed (rpm)
|
|
|
40-70
|
|
|||
|
Rotary torque (N.m)
|
|
|
5700-7500
|
|
|||
|
Overall dimensions (mm)
|
|
|
4100*1950*2600
|
|
|||
