Quick Details
-
Weight:
-
7 KG
-
Drilling Depth:
-
customized
-
Hydraulic Hammer flow:
-
50-110
-
Drill diameter:
-
75/85/100(optional)
-
Hydraulic Hammer Model:
-
AR75/85/100(optional)
-
Single track:
-
42section
-
track width:
-
350MM
-
Color:
-
Customer's Requirement
-
Model:
-
YHL--400
-
Total displacement of walking motor:
-
53ml/r
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yahe heavy industry
-
Dimension(L*W*H):
-
4420*1920*4900-7900
-
Weight:
-
7 KG
-
Drilling Depth:
-
customized
-
Hydraulic Hammer flow:
-
50-110
-
Drill diameter:
-
75/85/100(optional)
-
Hydraulic Hammer Model:
-
AR75/85/100(optional)
-
Single track:
-
42section
-
track width:
-
350MM
-
Color:
-
Customer's Requirement
-
Model:
-
YHL--400
-
Total displacement of walking motor:
-
53ml/r

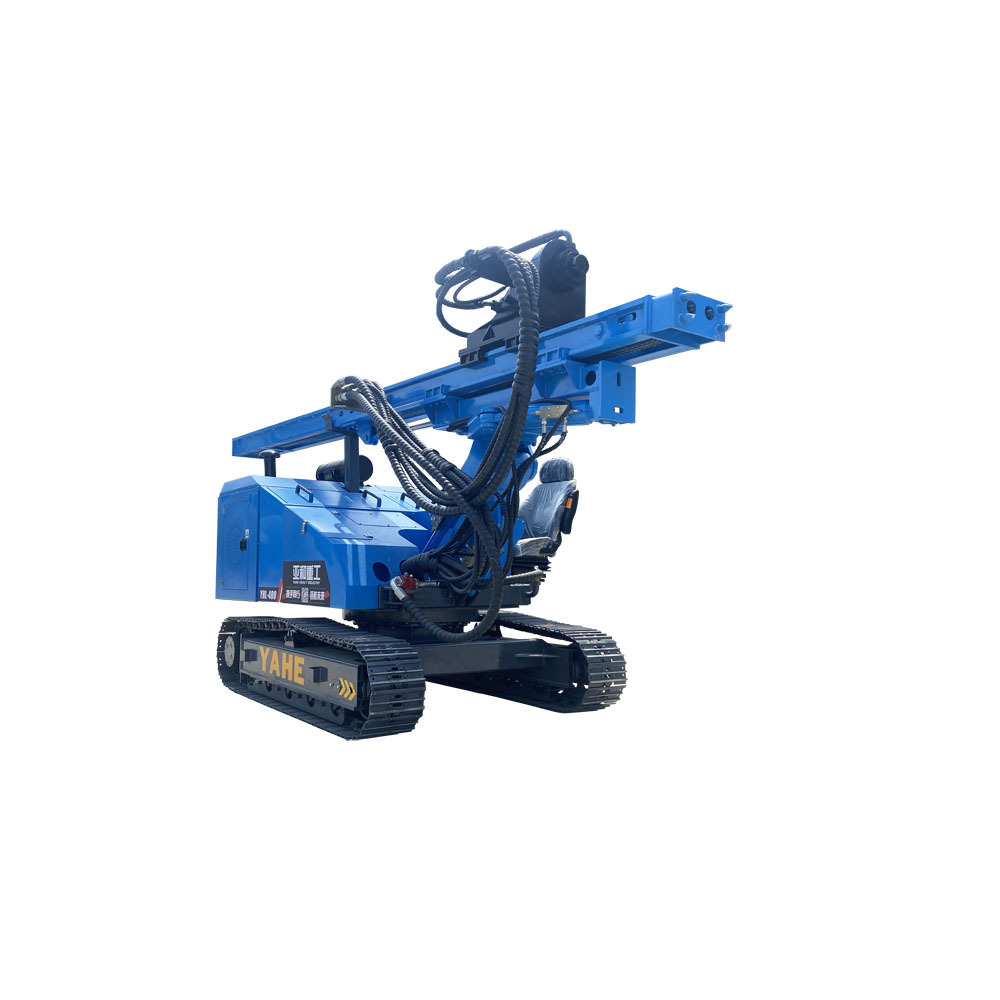

Product Display
Product Paramenters
|
项目project
|
单位unit
|
数值value
|
|
外形尺寸（mm 长*宽*高）
Size |
mm
|
4420*1920*4900-7900(working）
|
|
|
|
4500-7500*1920*2800（transport）
|
|
液压锤型号Hydraulic Hammer Model
|
mm
|
AR75/85/100（optional）
|
|
液压锤流量Hydraulic Hammer flow
|
L/min
|
50-110
|
|
冲击频率Impact frequency
|
bmp
|
350-800
|
|
钎杆直径drill rod diameter
|
mm
|
75/85/100（optional）
|
|
行走马达最大扭矩
Maximum torque of walking motor |
N·m
|
11500
|
|
桩最大高度Maximum height of pile
|
mm
|
依据滑道According to the slide
|
|
滑动导轨架倾角
Sliding guide rail bracket inclination angle |
º
|
Left 5° right 5°
|
|
车架回转角度Frame rotation angle
|
º
|
360
|
|
液压系统压力Hydraulic system pressure
|
Mpa
|
22
|
|
齿轮泵排量Gear pump displacement
|
ml/r
|
40+40+25
|
|
行进速度Travel speed
|
KM/h
|
3
|
|
整车重量Vehicle weight
|
t
|
7.3
|
|
发动机功率Engine power
|
kw
|
85
|
|
发动机额定转速Rated engine speed
|
（r/min）
|
2600
|
|
履带板宽Track shoe width
|
mm
|
350
|
|
履带单条Single track
|
section
|
42
|
|
行走马达总排量Total displacement of walking motor
|
ml/r
|
53
|
|
行走马达额定压力Rated pressure of walking motor
|
Mpa
|
30
|
|
行走马达减速比Travel motor reduction ratio
|
|
1:54.4
|
