Quick Details
-
Model Number:
-
LZ-8108
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-5℃ to +65℃
-
Max. Current:
-
5A
-
Name:
-
Limit Switch
-
Humidity:
-
<95% RH
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TNHA
-
Model Number:
-
LZ-8108
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-5℃ to +65℃
-
Max. Current:
-
5A
-
Name:
-
Limit Switch
-
Humidity:
-
<95% RH

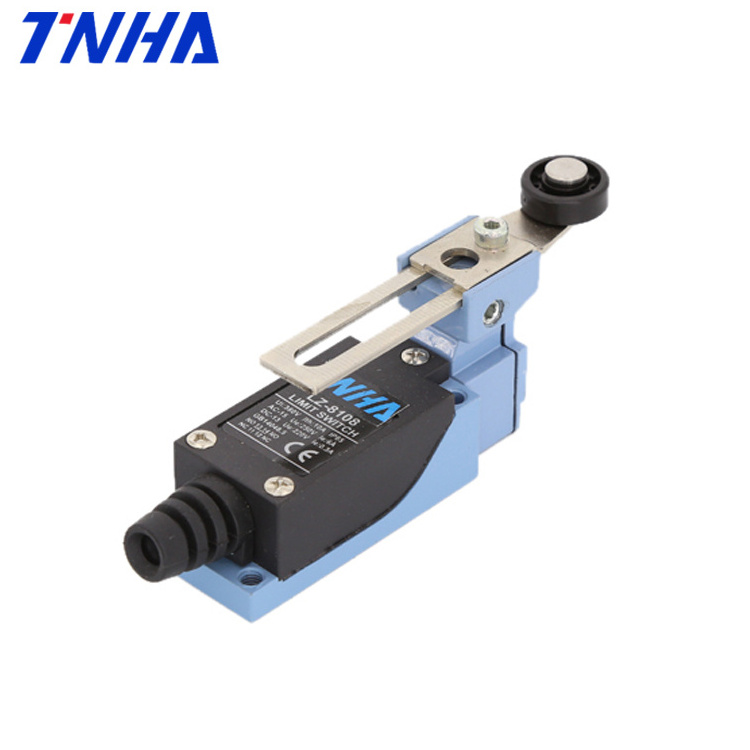

Product Pictures
Product Description
| Model No. | LZ-8108 |
| Name | Limit switch |
| Operation speed | 0. 5mm-50cm/sec |
| Operating frequency | Mechanical:120 operations/minute Electical; 30 operations/minute |
| Contact resistance | 25mΩmax.(initial value) |
| Insulation resistance | 100mΩmin. (below 500VDC) |
| Dielectric strength | 1000VAC,50/60Hz for 1 minute between terminals of the same polarity |
| 1500VAC,50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC. 50/60Hz for 1 minute between each terminal and ground | |
| Vibration | 10-55HZ, 1. 5mm double amplitude |
| Shock | Mechanical durable:1,000m/Sec²(about 100G'S) |
| Malfunction:m/Sec²(about 30G'S) | |
| Life | Mechanical: 10,000,000 operations above |
| Electrical:5,000,000 operations above | |
| Weight | About 130 to 190g |
| Degree of protection | IP65 |
