- Product Details
- {{item.text}}
Quick Details
-
Blade Length (mm):
-
2500 mm
-
Backgauge Travel (mm):
-
180 - 750 mm
-
Throat Depth (mm):
-
300 mm
-
Brand Name:
-
WILAMAC
-
Power (kW):
-
11 kW
-
Weight (KG):
-
11000 KG
-
Place of Origin:
-
ANH
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
4100x2200x2300
-
Year:
-
new
-
Marketing Type:
-
Hot Product 2023, Hot Product 2024
-
Brand:
-
WILAMAC
Quick Details
-
Max. Cutting Width (mm):
-
3000 mm
-
Max. Cutting Thickness (mm):
-
12 mm
-
Shearing Angle:
-
1-3°
-
Blade Length (mm):
-
2500 mm
-
Backgauge Travel (mm):
-
180 - 750 mm
-
Throat Depth (mm):
-
300 mm
-
Brand Name:
-
WILAMAC
-
Power (kW):
-
11 kW
-
Weight (KG):
-
11000 KG
-
Place of Origin:
-
ANH
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
4100x2200x2300
-
Year:
-
new
-
Marketing Type:
-
Hot Product 2023, Hot Product 2024
-
Brand:
-
WILAMAC

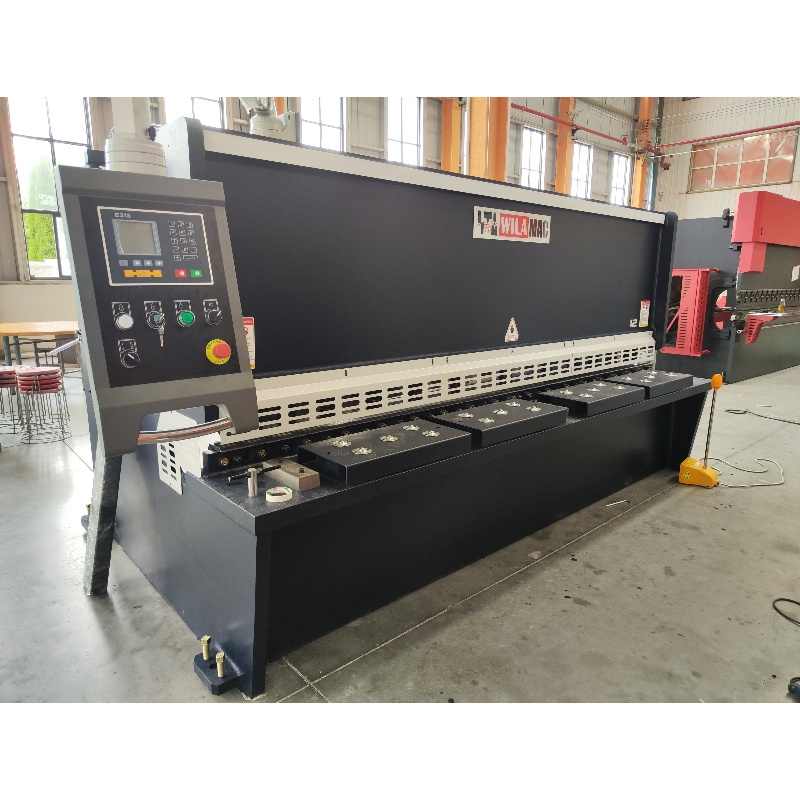

WILACNC Hydraulic Shearing Machine Features include:
•Solid strong steel structure, complete processing to control the precision
•An reliable and imported hydraulic system
•Blade carrier beam: Thrust cylinders on the cutting axis with blade carrying beam
•Blade pressure cylinders, with auto-regulating pressure, based on cutting force
•Blade carrying beam guide over the whole cutting length
•Rear regulator with recirculating ball screws
•Running wheels’ table and frontal support
•Twin-edged blades
•Cutting line with LED illumination
•Estun E21s numerical control
•Frontal support frame complete with retractable adjustable guides, millimetre rule and running wheels
•HIWIN Ball screws & Polished rod with 0,05 mm accuracy.
|
Control
|
Estun E21S
|
|
Hydraulic
|
Germany Bosch-Rexroth Hydraulic
|
|
Protection
|
Hydraulic and Electrical overload protection
|
|
Standard
|
Side guard is standard meeting CE regulations
|
|
Blades
|
Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
|
|
Ball screw
|
TAIWAN HIWIN
|
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visa invitation and View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
