Quick Details
-
Brand Name:
-
CTANG
-
Model Number:
-
CT501535
-
Battery Size:
-
5*15*37mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
5g, 5g
-
The charging ratio:
-
0.2C
-
The discharge rate:
-
0.2C
-
Electric Energy:
-
0.74 Wh
-
Nominal Voltage:
-
3.7v
-
Nominal Capacity:
-
200mah
-
Discharge Current:
-
0.2C
-
Max discharge voltage:
-
4.2v
-
Discharge cut-off voltage:
-
2.75v
-
Size:
-
5*15*37mm
-
Operating Temperature Range:
-
Charging:0 ~ 45℃/Discharging:-20 ~ 60℃
-
Certificate:
-
KC
-
OEM/ODM:
-
Welcome! Available!
Quick Details
-
Storage Type:
-
Normal Storage
-
Anode Material:
-
NCM
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics
-
Brand Name:
-
CTANG
-
Model Number:
-
CT501535
-
Battery Size:
-
5*15*37mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
5g, 5g
-
The charging ratio:
-
0.2C
-
The discharge rate:
-
0.2C
-
Electric Energy:
-
0.74 Wh
-
Nominal Voltage:
-
3.7v
-
Nominal Capacity:
-
200mah
-
Discharge Current:
-
0.2C
-
Max discharge voltage:
-
4.2v
-
Discharge cut-off voltage:
-
2.75v
-
Size:
-
5*15*37mm
-
Operating Temperature Range:
-
Charging:0 ~ 45℃/Discharging:-20 ~ 60℃
-
Certificate:
-
KC
-
OEM/ODM:
-
Welcome! Available!

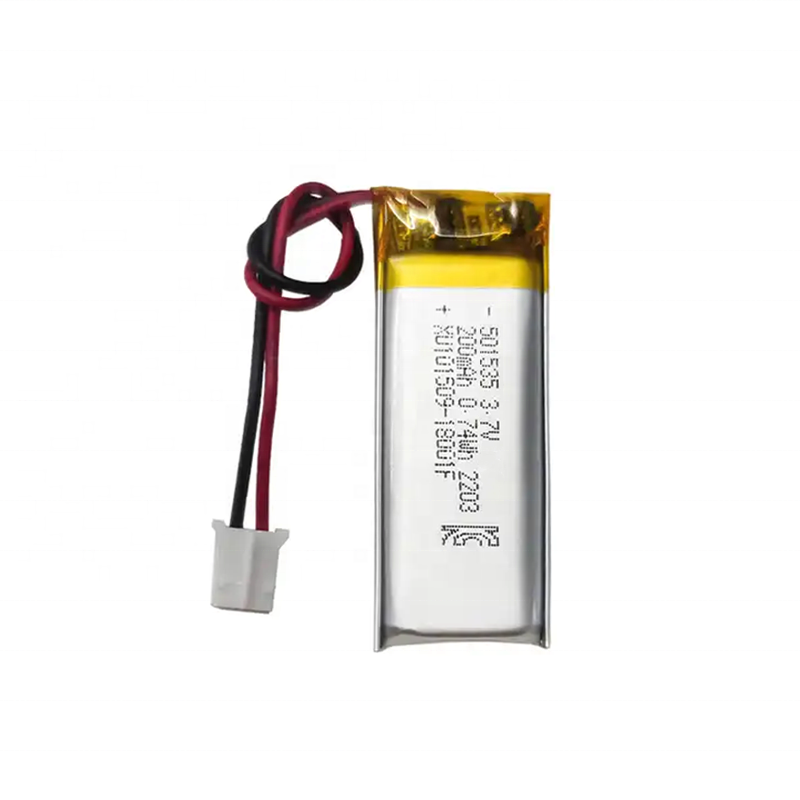

501535 Lipo Battery 3.7v 200mah Rechargeable Lithium ion Batteries For Scanner pen
Application
Telecommunications: Cellular phone, interphone, blue tooth earphone
Video Devices: MP3/MP4/MP5, digital camera, portable DVD, portable television
Portable Devices: GPS, PDA, E-book, PSP, portable medical device etc
Illuminate Devices: Miner lamp, search light
Product Specification
|
Model |
CT501535 |
|
Product size |
5mm*15 mm*37 mm (Thickness*Width*Length) |
|
Nominal Voltage |
3.7v |
|
Rated Capacity |
200mAh |
|
Charge Voltage |
4.2V |
|
Discharge Voltage |
2.75V |
|
Operating Environment |
Charging:0°C~45 °C Discharging::-20°C~60°C |
|
Cycle Life |
300 times >80% |
|
Storage Environment |
-20°C~45°C;65±20RH Storage for a long time(>3 months)and the storage condition shall be:<35 °C;65±20RH |
|
Protective function |
anti-overcharge,anti-short circuit,anti-overcurrent,anti- overload,thermal no explosion, no fire |
|
Weight |
5g |
|
Certificate |
KC |
|
Application |
Consumer Electronics
|
Packaging
Shipping
1.Shipping by express like DHL FEDEX UPS TNT is available
2. Shipping by air or by sea is OK.
We have been cooperating with worldwide first class shipping agents for over years, they offer us good price and good service all the time.
1.Brand new
2.OEM/ODM available
3.Quality 100% assured,
4.Fast Shipping
5.Customizing and drawings are acceptable
6.With 24 hours reply
