Quick Details
-
Voltage:
-
380V 50/60 HZ
-
Power:
-
4.5KW, AC 380V 50/60 HZ
-
Applicable Industries:
-
card making
-
Application:
-
Plastic sheet
-
Rated Power:
-
/
-
No-Load Rotational Speed:
-
0
-
Saw Blade Diameter:
-
mm
-
Max. Cutting Depth:
-
1.5 mm
-
Dimensions:
-
1350mm*600mm*1300mm
-
After-sales Service Provided:
-
No after-sales service
-
Product name:
-
SC-2A PLC Control PVC Card Punching Machine
-
Production capacity:
-
5000 cards/hour
-
Suitable for:
-
0.3~1.0mm PVC and other plastic materials
-
Punch layout:
-
2*5, A4 Size or customize
-
The number of punches:
-
2
-
Max punch strength:
-
0~5000 kgs adjustable
-
Control method:
-
PLC control
-
Cylinder stroke:
-
18mm
Quick Details
-
Place of Origin:
-
China
-
Weight (KG):
-
850
-
Brand Name:
-
Sinocard
-
Voltage:
-
380V 50/60 HZ
-
Power:
-
4.5KW, AC 380V 50/60 HZ
-
Applicable Industries:
-
card making
-
Application:
-
Plastic sheet
-
Rated Power:
-
/
-
No-Load Rotational Speed:
-
0
-
Saw Blade Diameter:
-
mm
-
Max. Cutting Depth:
-
1.5 mm
-
Dimensions:
-
1350mm*600mm*1300mm
-
After-sales Service Provided:
-
No after-sales service
-
Product name:
-
SC-2A PLC Control PVC Card Punching Machine
-
Production capacity:
-
5000 cards/hour
-
Suitable for:
-
0.3~1.0mm PVC and other plastic materials
-
Punch layout:
-
2*5, A4 Size or customize
-
The number of punches:
-
2
-
Max punch strength:
-
0~5000 kgs adjustable
-
Control method:
-
PLC control
-
Cylinder stroke:
-
18mm
Mechanical Power Press / Cards Punching and Press Machine / Troqueladora Para Tarjetas PVC

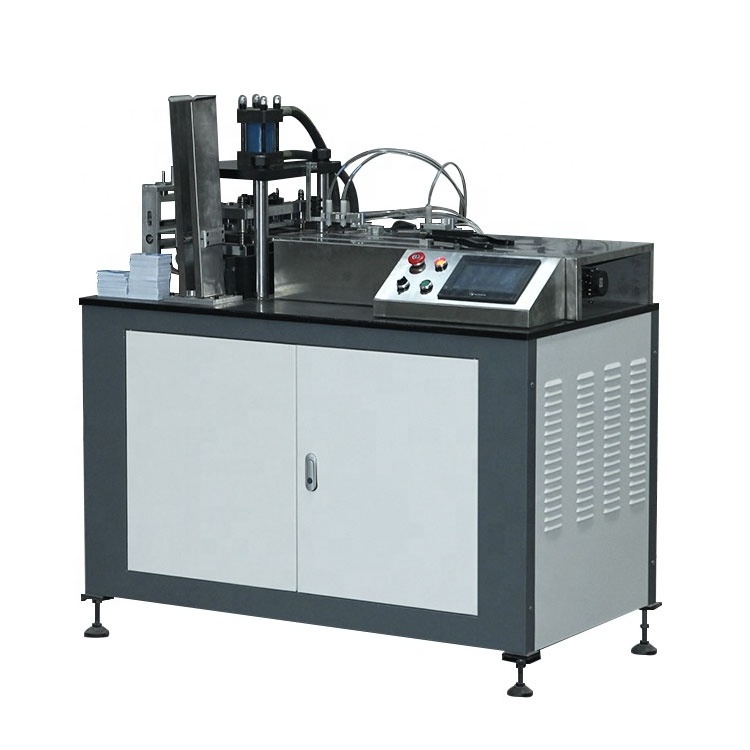

High Speed A4 Format PLC Control PVC Card Punch Press Machine / Automatic Standard ID Card Punching Machine
Function and Application Introduction
SC-2A PLC high speed automatic PLC punch machine,it adopts PLC control system. Feeding system is controlled by Omron servomotor and imported high precision ball screw as well as linear guide, balanced move and precision moving distance(positioning accuracy is less than 0.10mm). It adopts professional ultrasensitive opto-electrical recognizer to read the register marks to make the position reliable and precise, also low noise,large flow made in Taiwan hydraulic pump. The die of hydraulic cylinder is dieing smoothly and steady, also low noise. The mould is made by imported die steel. The software function is strong and insure punch precision even in the situation of material distortion or mechanism worn. The punch capacity is 30% higher than the similar products. It adopts two moulds to punch, so it is suitable for the medium range card making factories.
|
Technical parameter: |
|
| Model | 2A PLC Punching Machine |
| Power | AC 380V 50/60 HZ 4.5KW |
|
Hydraulic oil tank volume |
120liter |
|
Air consumption |
100 L/min |
|
Punch layout |
2×5,A4 Size |
|
Max punch strength |
0~5000 kgs adjustable |
|
Cylinder stroke |
18mm |
|
Air source |
0.6 MPa |
| Operator | 1 person |
|
Production capacity |
5000 cards/hour |
| Overall dimension | 1350mm(L) * 600mm(W) * 1300mm(H) |
High Speed A4 Format PLC Control PVC Card Punching Machine / Automatic VIP ID Card Punch Press Machine in standard export wooden box
