Quick Details
-
Brand Name:
-
LIANG JINGJING
-
Model Number:
-
TY
-
Name:
-
11mm 19mm 8mm metal sphere iron brass bearing slingshot steel ball
-
Grade:
-
G100 G200 G1000
-
Size:
-
11mm 19mm 8mm
-
Package:
-
Plastic Bag + Cardboard Box + Wooden
-
MOQ:
-
500 Kg
-
Hardness:
-
HRC 60-66
-
Standard:
-
GB/T308-2002
-
Finish:
-
Polish Steel Ball
-
Service:
-
Customized Service
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
-
Material:
-
carbon steel
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LIANG JINGJING
-
Model Number:
-
TY
-
Name:
-
11mm 19mm 8mm metal sphere iron brass bearing slingshot steel ball
-
Grade:
-
G100 G200 G1000
-
Size:
-
11mm 19mm 8mm
-
Package:
-
Plastic Bag + Cardboard Box + Wooden
-
MOQ:
-
500 Kg
-
Hardness:
-
HRC 60-66
-
Standard:
-
GB/T308-2002
-
Finish:
-
Polish Steel Ball
-
Service:
-
Customized Service

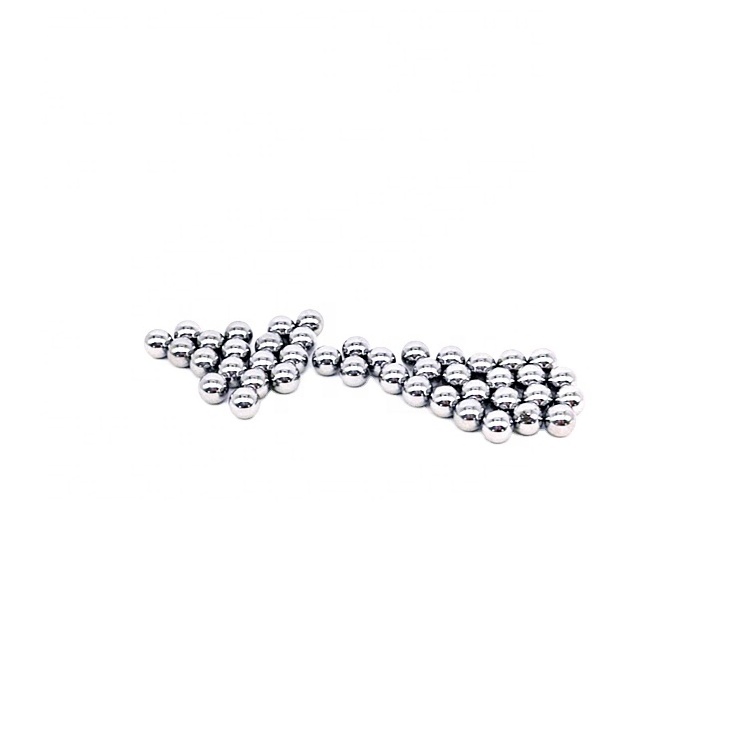

11mm 19mm 8mm metal sphere iron brass bearing slingshot steel ball
Carbon Steel Ball
Carbon steel balls are made from a combination of steel and carbon , they have excellent surface quality ,high hardness and high load bearing capacity as a result of through hardening.According to the different materials can be divided into Low carbon steel ball , Medium carbon steel ball and High carbon steel ball . Carbon steel balls are the lowest value-added steel balls, that is, the cheapest, generally low-grade, widely used.
According to different hardness, it can be divided into soft ball and hard ball. That is to say, it can be judged by whether heat treatment is needed: hardness increases after heat treatment, about HRC60-66, commonly known as hard ball in the industry; hardness without heat treatment is relatively low, about HRC40-50, commonly known as soft ball in the industry. Carbon steel ball is a very common kind of steel ball. It has the characteristics of low price and high hardness. It is widely used.
|
Chemical Composition |
|
||
|
|
1010 |
1015 |
1085 |
|
%C |
0.08 - 0.13 |
0.12 - 0.18 |
0.83-0.88 |
|
%Si |
0.10 - 0.35 |
0.10 - 0.35 |
0.1-0.3 |
|
%Mn |
0.30 - 0.60 |
0.30 - 0.60 |
0.50-0.80 |
|
%P |
0.040 Max |
0.040 Max |
0.035 Max |
|
%S |
0.050 Max |
0.050 Max |
0.035 Max |
|
Mechanical Properties |
||
|
|
Soft |
Hardened |
|
Density |
7.82 g/m3 |
7.82 g/m3 |
|
Hardness |
60 - 90 HRB |
55 - 60 HRC |
|
Tensile Strength |
29 - 43 PSI×103 |
43 - 58 PSI×103 |
|
Young's Modulus |
200 GPA |
200 GPA |
Carbon steel balls show good wear,abrasion resistance and good weld-ability ,which are used in automotive, semi-precision bearings, castors, Furniture rails and rollers,locks and drawer slides, bicycles, conveyors and bearings, overhead trolleys and many others.
