Quick Details
-
Weight (KG):
-
25000 KG
-
Raw material:
-
Waste tyre plastic rubber
-
Heating fuel:
-
Coal Wood Pyrolysis Oil
-
Machine Type:
-
Batch Working
-
Reactor Thickness:
-
16mm/18mm
-
Cooling method:
-
circle water cooling
-
Work Pressure:
-
Normal Pressure
-
End product:
-
Fuel oil ,carbon black , steel wire
-
Material of Reactor:
-
Q245R /Q345R
-
Structural form:
-
Horizontal Form
-
Application:
-
Tyre Plastic Rubber Pyrolysis Plant
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huayin
-
Equipment Capacity:
-
5TPD
-
Weight (KG):
-
25000 KG
-
Raw material:
-
Waste tyre plastic rubber
-
Heating fuel:
-
Coal Wood Pyrolysis Oil
-
Machine Type:
-
Batch Working
-
Reactor Thickness:
-
16mm/18mm
-
Cooling method:
-
circle water cooling
-
Work Pressure:
-
Normal Pressure
-
End product:
-
Fuel oil ,carbon black , steel wire
-
Material of Reactor:
-
Q245R /Q345R
-
Structural form:
-
Horizontal Form
-
Application:
-
Tyre Plastic Rubber Pyrolysis Plant
Products Description
Tire pyrolysis provides an effective solution for recycling and reusing used tires that would end up in landfills or be subjected to environmentally harmful disposal methods. Pyrolysis of tires allows for the recovery of valuable resources from the waste material. The process produces pyrolysis oil, carbon black, and combustible gas, which can be utilized as energy sources or raw materials in various industries.
|
Input raw material
|
Waste car tyres , bicycle tires, OTR tyres, rubber etc.
|
|
|
|
Output product
|
Percentage
|
Application
|
|
|
FUEL OIL
|
45%
|
Used as industrial fuel for cement plant, steel plant, metallurgical plant, glass plant, power plant etc.
Refined to diesel by our distillation plant.
|
|
|
CARBON BLACK
|
30%
|
Used as raw materials for rubber and plastic industries after further processing. Or used as heating fuel.
|
|
|
STEEL WIRE
|
15%
|
Sold to scrap metal dealers.
|
|
|
SYNGAS
|
10%
|
Routed to gas burners of heating system as fuel supply.
|
|
Specification
|
Model
|
HY-05
|
HY-10
|
HY-15
|
HY-30
|
|
Capacity
|
5 t/d
|
10 t/d
|
15 t/d
|
30-50 t/d
|
|
Working Type
|
Batch
|
Batch
|
Batch
|
Continuous
|
|
Reactor size(m)
|
D2.2*L5.5
|
D2.8*L6.6
|
D2.8*L8.1
|
D1.2*L24
|
|
Reactor material
|
Q245R/Q345R
|
Q245R/Q345R
|
Q245R/Q345R
|
310S stainless steel
|
|
Power
|
29.4KW
|
32KW
|
34KW
|
100KW
|
|
Landing Area
|
200m2
|
300m2
|
350m2
|
700m2
|
|
Burners
|
3*300,000 kcal
|
3*300,000 kcal
|
4*300,000 kcal
|
12*30000kcal
|
|
Number of Containers
|
1*40FR+1*40HQ
|
1*40FR+2*40HQ
|
1*40FR+2*40HQ
|
bulk cargo
|
|
Working pressure
|
Normal
|
Cooling Mode
|
Circle Water
|
|
Our Advantages
1. The pyrolysis plant can process both waste tires and plastic (including PP ,PE , PS , ABS etc.)
2. Low operating cost. No need the catalyst during the whole pyrolysis process.
3. No pollution. The smoke produced will be purified by our dedusting device ,finally reached emission standard.
4. 100% Safety. The pyrolysis reactor is made of Q245R/Q345R boilerplate, which is high pressure and high-temperature resistance that ensure its longer service life. Adding perfect hot seal technology to ensure operation safely.
5. No waste left after the pyrolysis process, the syngas(combustible gas) is recycled into the furnace to heat reactor instead of heating material.
6. It is easier to obtain economic value by recycling waste tires and plastics by pyrolysis process.
7. For 10ton waste tires or plastic , it will take about 24 hours to finish one batch.
8. Provide batch and continuous type pyrolysis plant , we can also customize products according to customers' processing capacity and requirements.
2. Low operating cost. No need the catalyst during the whole pyrolysis process.
3. No pollution. The smoke produced will be purified by our dedusting device ,finally reached emission standard.
4. 100% Safety. The pyrolysis reactor is made of Q245R/Q345R boilerplate, which is high pressure and high-temperature resistance that ensure its longer service life. Adding perfect hot seal technology to ensure operation safely.
5. No waste left after the pyrolysis process, the syngas(combustible gas) is recycled into the furnace to heat reactor instead of heating material.
6. It is easier to obtain economic value by recycling waste tires and plastics by pyrolysis process.
7. For 10ton waste tires or plastic , it will take about 24 hours to finish one batch.
8. Provide batch and continuous type pyrolysis plant , we can also customize products according to customers' processing capacity and requirements.
Structure of
Huayin
pyrolysis plant

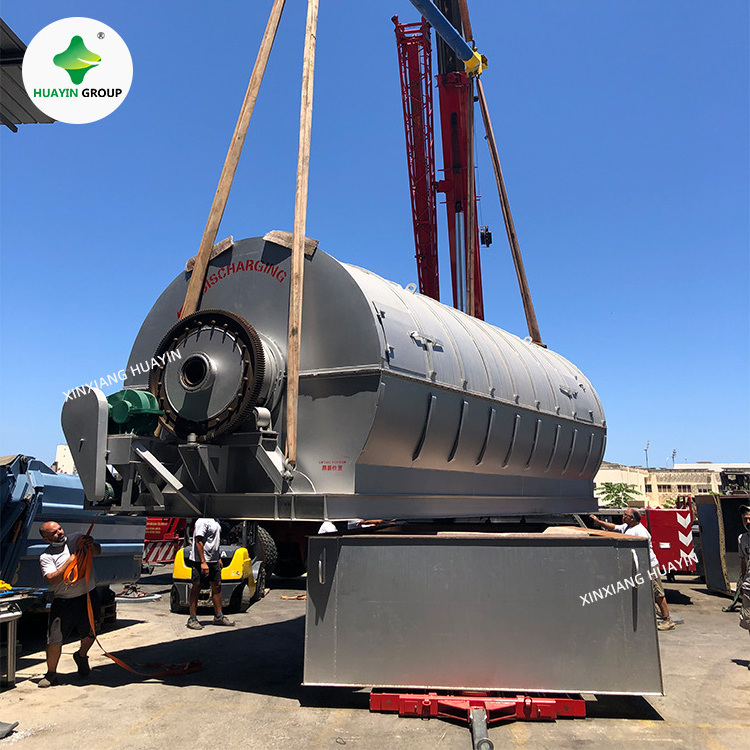

Installation cases
Delivery
Delivery time : 15 working days after received the deposit.
