without compressor painting paint air spray gun

without compressor painting paint air spray gun

FOB Reference Price: Get Latest Price

≥10 Pieces

US $63

≥50 Pieces

US $57

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: without compressor painting paint air spray gun

keyword 1:: s770 s-770 reviews reservoir pressure air cap spray gun

keyword 2:: Taiwan made brands bed liner basics spray gun

keyword 3:: cfm car paint spray gun

standard nozzle:: 1.4 mm

Fluid Inlet:: M16x1.5P

Work Pressure:: 30~45 psi

Type:: gravity/suction/pressure feed

model no:: K-818M

Application:: Automotive

Quick Details

No-Load Speed:: 30~45 psi

Model Number:: K-818M

Place of Origin:: Taiwan, China

Product name:: without compressor painting paint air spray gun

keyword 1:: s770 s-770 reviews reservoir pressure air cap spray gun

keyword 2:: Taiwan made brands bed liner basics spray gun

keyword 3:: cfm car paint spray gun

standard nozzle:: 1.4 mm

Fluid Inlet:: M16x1.5P

Work Pressure:: 30~45 psi

Type:: gravity/suction/pressure feed

model no:: K-818M

Application:: Automotive

Products Description

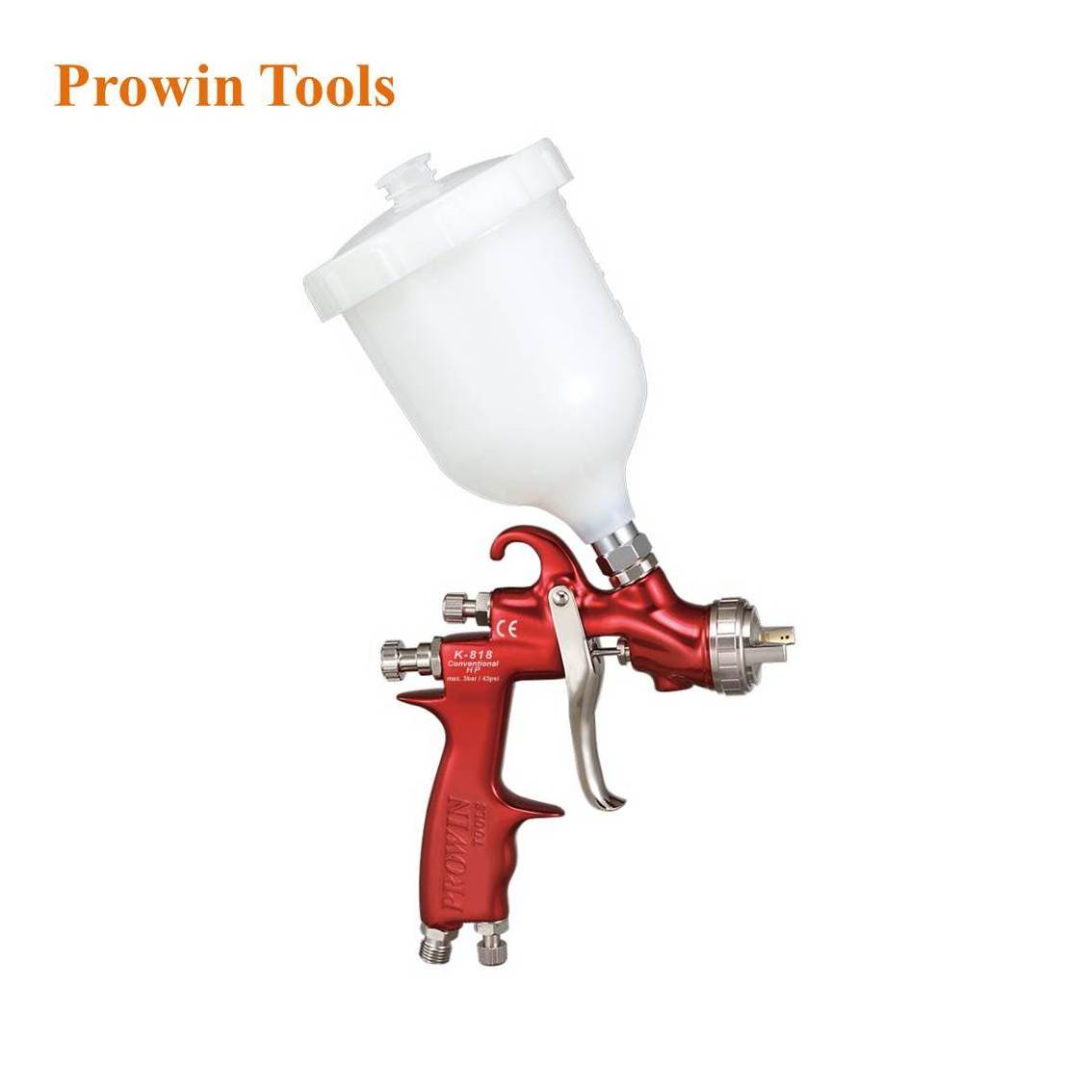

Without compressor painting paint air spray gun

Conventional gravity feed spray gun, suitable for household, industrial, and car refinishing painting. Equipped with a 600c.c. gravity cup, a spanner, a cleaning brush and a paint filter.

Why choose our Conventional spray gun?
1. One-piece aluminum forged body, finest atomization
2. No sand-hole, consistent painting performance
3. Fast paint output, good transfer efficiency>45%, up to 60-65% ^*1
4. Aesthetic Anodized surface, great rust-resistance & service life ^*2
5. Ergonomic design, comfort for long-time operating
6. 100% made in Taiwan, 100% quality inspection
7. P.O.M cup, well rigidity, long time use without color-attached

Details Images

Product Description

Front view
Aesthetic anodized surface with ergonomic design

Pressure Feed

Gravity Feed

Suction Feed

Back view
Suitable for both left/right-handed

Pressure Feed

Gravity Feed

Suction Feed

Side view

Pressure Feed

Gravity Feed

Suction Feed

Nozzle view
Precision CNC machining and consistent

Specification

Gravity Feed

Specification							Turn - up Kit
Model No	Nozzle Size	Fluid Output	Pattern Width	Air Consumption	Model No	Nozzle Size
K-818M-10	1.0 mm	130 ml	290 mm	190 l/min	SG008-818-10	1.0 mm
K-818M-12	1.2 mm	170 ml	300 mm	210 l/min	SG008-818-12	1.2 mm
K-818M-13	1.3 mm	210 ml	305 mm	210 l/min	SG008-818-13	1.3 mm
K-818M-14	1.4 mm	220 ml	310 mm	210 l/min	SG008-818-14	1.4 mm
K-818M-15	1.5 mm	240 ml	315 mm	210 l/min	SG008-818-15	1.5 mm
K-818M-16	1.6 mm	260 ml	320 mm	220 l/min	SG008-818-16	1.6 mm
K-818M-18	1.8 mm	300 ml	330 mm	220 l/min	SG008-818-18	1.8 mm
K-818M-20	2.0 mm	340 ml	340 mm	220 l/min	SG008-818-20	2.0 mm
K-818M-25	2.5 mm	380 ml	350 mm	220 l/min	SG008-818-25	2.5 mm
• Type : Gravity • Cup Capacity : 600 c.c. • Fluid Inlet : M16×1.5P • Air Inlet : 1/4"					• Working Pressure : 30~45 psi • Standard Nozzle : 1.4 mm • Gun Weight : 514 gs

Pressure Feed

Specification							Turn - up Kit
Model No	Nozzle Size	Fluid Output	Pattern Width	Air Consumption	Model No	Nozzle Size
K-818P-10	1.0 mm	130 ml	290 mm	190 l/min	SG008-818-10	1.0 mm
K-818P-12	1.2 mm	170 ml	300 mm	210 l/min	SG008-818-12	1.2 mm
K-818P-13	1.3 mm	210 ml	305 mm	210 l/min	SG008-818-13	1.3 mm
K-818P-14	1.4 mm	220 ml	310 mm	210 l/min	SG008-818-14	1.4 mm
K-818P-15	1.5 mm	240 ml	315 mm	210 l/min	SG008-818-15	1.5 mm
K-818P-16	1.6 mm	260 ml	320 mm	220 l/min	SG008-818-16	1.6 mm
K-818P-18	1.8 mm	300 ml	330 mm	220 l/min	SG008-818-18	1.8 mm
K-818P-20	2.0 mm	340 ml	340 mm	220 l/min	SG008-818-20	2.0 mm
K-818P-25	2.5 mm	380 ml	350 mm	220 l/min	SG008-818-25	2.5 mm
• Type : Gravity • Cup Capacity : 600 c.c. • Fluid Inlet : M16×1.5P • Air Inlet : 1/4"					• Working Pressure : 30~45 psi • Standard Nozzle : 1.4 mm • Gun Weight : 514 gs

Suction Feed

Specification							Turn - up Kit
Model No	Nozzle Size	Fluid Output	Pattern Width	Air Consumption	Model No	Nozzle Size
K-818S-10	1.0 mm	120 ml	310 mm	210 l/min	SG008-818-10	1.0 mm
K-818S-12	1.2 mm	170 ml	300 mm	210 l/min	SG008-818-12	1.2 mm
K-818S-13	1.3 mm	200 ml	305 mm	210 l/min	SG008-818-13	1.3 mm
K-818S-14	1.4 mm	220 ml	310 mm	210 l/min	SG008-818-14	1.4 mm
K-818S-15	1.5 mm	240 ml	315 mm	210 l/min	SG008-818-15	1.5 mm
K-818S-16	1.6 mm	260 ml	320 mm	220 l/min	SG008-818-16	1.6 mm
K-818S-18	1.8 mm	300 ml	330 mm	220 l/min	SG008-818-18	1.8 mm
K-818S-20	2.0 mm	340 ml	340 mm	220 l/min	SG008-818-20	2.0 mm
K-818S-25	2.5 mm	380 ml	350 mm	220 l/min	SG008-818-25	2.5 mm
• Type : Suction • Cup Capacity : 1000 c.c. • Fluid Inlet : 3/8"					• Air Inlet : 1/4" • Working Pressure : 30~45 psi • Gun Weight : 514 gs

Application

1. Auto refinishing, high finishing to restore the shine
2. Craftsmanship
3. Architectural coating
4. Wood working industry, creating color-rich glossy surfaces.
5. Marine domain, non-corrosive layer coating

Reasons for choosing Conventional guns?

1. Fast painting speed, speedy finishes
2. Lower air consumption (190-220 L/min) coupled with a superb finish
3. Easy to operate: professionals or DIY enthusiasts can easily get perfect refinishing outcome.
