IP54 Waterproof Infrared Laser 20Hz Dynamic Detection Obstacle Avoidance Module 100m Laser Long Range Distance Measuring Sensor

IP54 Waterproof Infrared Laser 20Hz Dynamic Detection Obstacle Avoidance Module 100m Laser Long Range Distance Measuring Sensor

Note:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm± 50PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board
3. Operating temperature -10 ℃~50 ℃ can be customized

4. 150m needs to be customized

JRT high-speed laser distance sensor uses 20Hz to measure, fast frequency, millimeter-level accuracy, range up to 100 meters, can monitor data changes in real time, can measure moving objects, fast and accurate measurement.

Using the principle of phase optical laser, the laser is single-emitting and single-receiving, and the red laser point can be seen, which can accurately aim at the object to be measured.

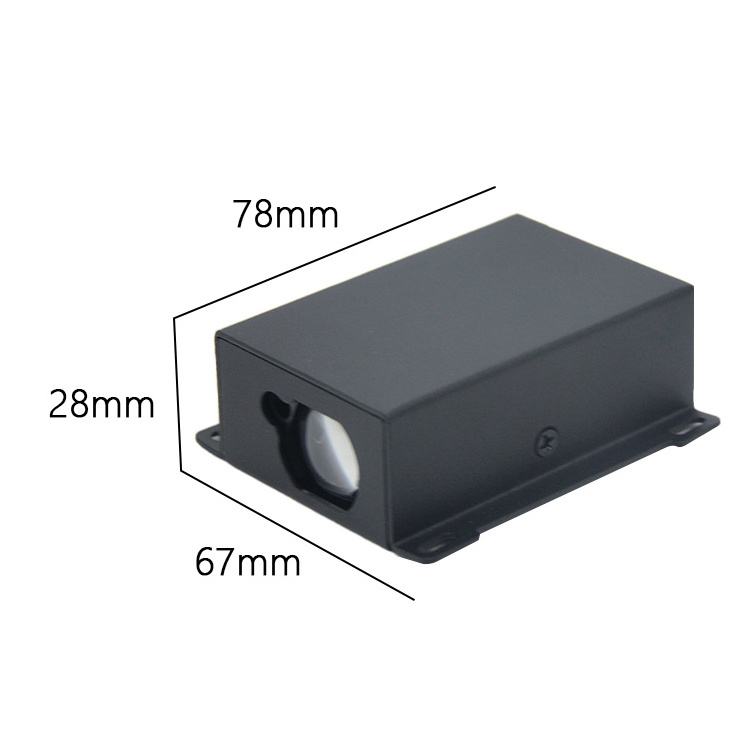

IP54 Laser Distance Measuring Sensor with a protective case and small size, it is easy to install and apply, and it also enhances the function of the protection module.

We can provide supporting test software to facilitate users to detect whether the laser distance module is working normally.
Please contact us for download JRT easy testing the serial port test software.
After the cables and USB communication converter are correctly connected, please follow the below steps:
1, Open the test software;
2, Select the correct port;
3, set the correct baud rate;
4, Open the port;
5, Click measure when the single measurement is required;
6,Click “ConMeaure” when Continuous measurement is needed, excite “StopMeasure” to exit continuous measure.
The real time distance record that has been parsed can be seen in the date record box on right.

Buy Sample for Testing!

JRT Laser Distance Sensor Module already widely used in many industrial area, like robot, warehouse logistics, safety system, Railway Monitoring, Agricultural Automation, construction, Industrial Automation, Intelligent Transportation, Truck Height,Drone, Archery, Engineering Survey, Golf, Interior Finish, Sports, Engineer, crane, radar, lidar etc.

1mm Accuracy
High accuracy+-1mm without reflection. World's advanced single transmitting single receiving technology of making laser module, which greatly reduced cost and power consumption.

41*17*7mm
Smallest size in the world, Strong range finding ability and industrial stability.

18 years R&D Experiences
We are manufacturer ,accepting OEM & ODM and helping customers to explore different secondary solution, providing continuous technical support and 12 hours response after-sales service for users.

3,000,000 pieces per year
We sold more than 1 million pieces in 2017, about 2 million pieces in 2018, it must be exceed this quantity next year. Thanks to the introduction of new automatic machines, our production capacity is 2 million now.

3000Hz High Frequency

High Frequency Tof LiDAR distance sensor is our 2021 new product (Max 3000Hz) can be customized, with small size 43*35*21mm.

1. All goods will be inspected and tested before shipment.

2. Customers’ satisfaction is the most important thing to us. If you have any problems or questions, please contact us by Trademanager, email, WhatsApp, Skype, telephone. You will get your respond within 12 hours on working days, 24 hours on holidays.

3. The customers buy directly from JRT will get full technical support of datasheet, user manual, test software, 3d drawings, test wires welding, and any other needed supports of our laser distance modules.
