Quick Details
-
Power:
-
According to the design
-
Dimension(L*W*H):
-
According to the design
-
Weight:
-
200 KG
-
Machinery Capacity:
-
20
-
Core Components:
-
According to product type
-
Product Name:
-
Mycelium Cell Microbial Culture 20L Bioreactor Fermenter
-
Capacity:
-
20L
-
Material:
-
Stainless Steel 304/316
-
Feeding volume:
-
70%-80%
-
Temperature measurement range:
-
0~150℃
-
Temperature control range:
-
10~+65℃
-
Design pressure in fermentation tank:
-
0.3 Mpa
-
Sterilization Methods::
-
Automatic sterilization
-
control parameters:
-
temperature,revolving speed,humidity
-
Stirring Methods:
-
magnetic stirring & top mechanical stirring
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XIAOHAN
-
Voltage:
-
According to the design
-
Power:
-
According to the design
-
Dimension(L*W*H):
-
According to the design
-
Weight:
-
200 KG
-
Machinery Capacity:
-
20
-
Core Components:
-
According to product type
-
Product Name:
-
Mycelium Cell Microbial Culture 20L Bioreactor Fermenter
-
Capacity:
-
20L
-
Material:
-
Stainless Steel 304/316
-
Feeding volume:
-
70%-80%
-
Temperature measurement range:
-
0~150℃
-
Temperature control range:
-
10~+65℃
-
Design pressure in fermentation tank:
-
0.3 Mpa
-
Sterilization Methods::
-
Automatic sterilization
-
control parameters:
-
temperature,revolving speed,humidity
-
Stirring Methods:
-
magnetic stirring & top mechanical stirring

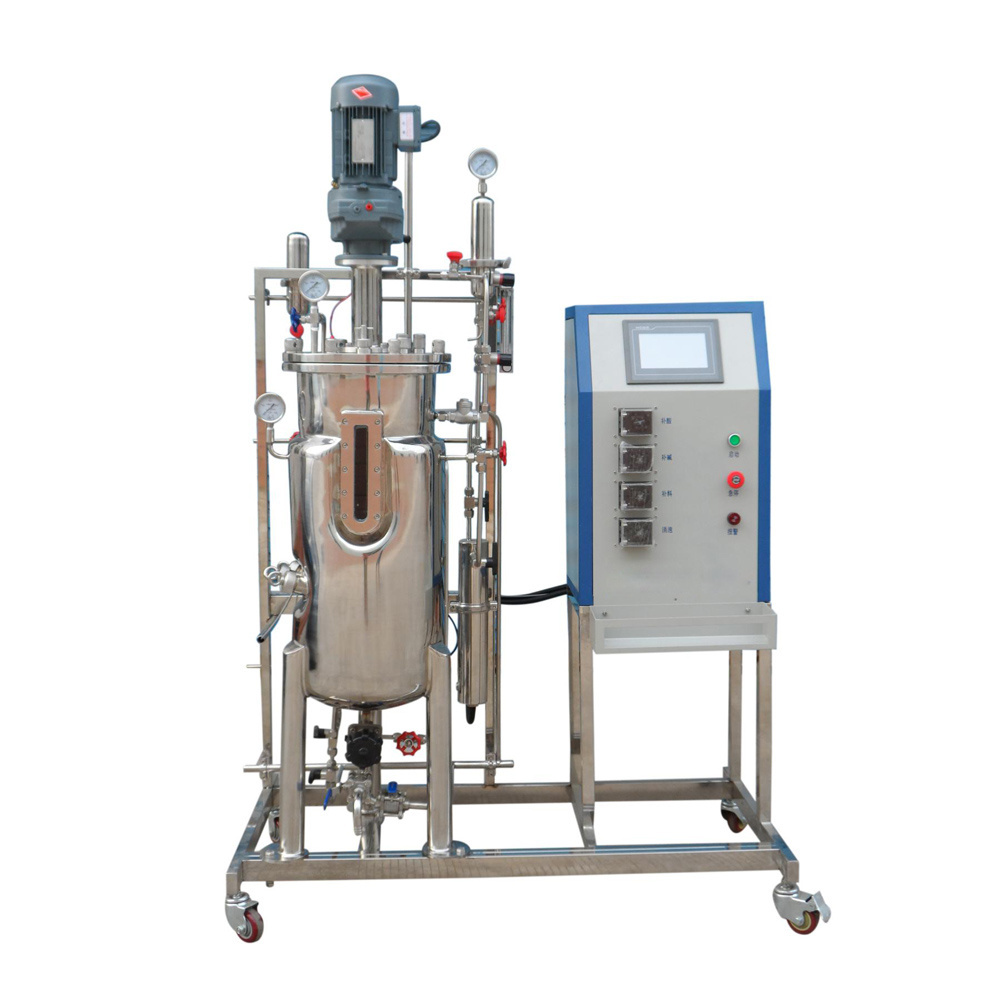

Stainless Steel Bacterial Mycelium Cell Microbial Culture 20L Bioreactor Fermenter
This product is widely used in microbial laboratories of scientific research institutes and enterprises. It is an ideal tool for precision fermentation test. It can be applied to the screening of medium formula, the optimization of fermentation process parameters and the validation of production technology and strains. In particular, the crude mash medium is especially suitable.
Main uses
The equipment can be widely used in the aerobic fermentation process of antibiotics, amino acids, enzyme preparations, vitamins, organic acids, etc. It can be used in gas-liquid and gas-liquid-solid reactions in chemical industry. It can be used for sewage treatment in environmental protection. At present, the equipment is used in the production of glutamic acid, antibiotics, xanthan gum, glucoamylase and citric acid in China. The volume of the equipment has reached 140m3, and remarkable economic benefits have been achieved after putting into use. The air necessary for fermentation flows up and down inside and outside the static mixing element to drive the fermentation liquid circulation and promote the gas-liquid full mixing.
Biological fermentation tank can be customized according to customer needs.
Detailed configuration list of fermentation tank system
|
No |
Equipment name |
Specification and model |
remarks |
quantity |
|
1 |
Fermentation tank |
20L |
316Lstainless steel |
1 set |
|
2 |
Lower computer control system |
HND-BIO6000 |
Touch screen + PLC |
1 set |
|
3 |
Temperature control system |
GermanyPT100 |
Platinum resistance |
1 set |
|
4 |
PH detection control system |
Mettler |
Imported from Switzerland |
1 set |
|
5 |
Do detection system |
Mettler |
Imported from Switzerland |
1 set |
|
6 |
Speed control system |
Taiwan Taian |
Stepless speed regulation |
1 set |
|
7 |
Feeding system |
HND-BL |
Peristaltic pump flow |
1 set |
|
8 |
Defoaming system |
HND-XP |
Peristaltic pump flow |
1 set |
|
9 |
Pressure detection system |
0-0.4Mpa |
Online indication |
full set |
|
10 |
Flow system |
Glass rotor type |
Online indication |
1 set |
|
11 |
Sterile air filtration system |
Shanghai filter factory |
Membrane filtration |
full set |
|
12 |
Pipeline and valve |
DN6/8/10/15 |
SUS304 stainless steel |
full set |
|
13 |
Air compressor |
0.18 Cubic / minute |
Oil free type |
1 set |
|
14 |
Air tank |
100L |
With safety valve |
1 set |
|
15 |
Steam generator |
9KW |
Fully automatic |
1 set |
