Quick Details
-
Place of Origin:
-
Hubei, China
-
Product name:
-

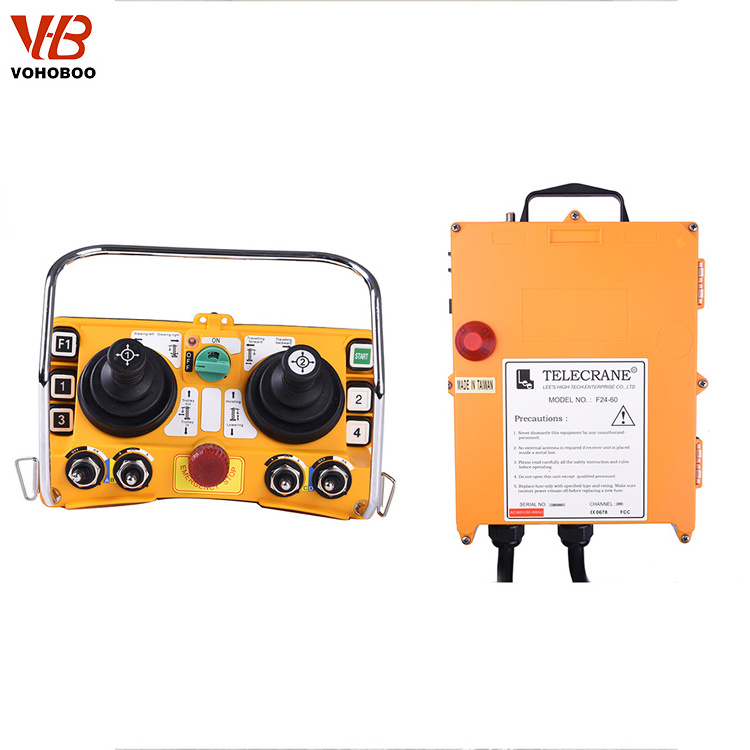

F24-60 remote control
-
Application:
-
lifting machinery, crane,hydraulic crane, etc
-
Frequency:
-
VHF:310-331MHz;UHF:425-446MHz
-
Voltage:
-
wide voltage:18-65V
-
Protection class:
-
IP65
-
Control distance:
-
approx 100m
-
Temperature range:
-
-40℃-+85℃
-
Certification:
-
ce
-
Usage:
-
Industrial
Quick Details
-
Function:
-
Waterproof, LED indicator light
-
Brand Name:
-
VOHOBOO
-
Model Number:
-
F24-60
-
Place of Origin:
-
Hubei, China
-
Product name:
-
F24-60 remote control
-
Application:
-
lifting machinery, crane,hydraulic crane, etc
-
Frequency:
-
VHF:310-331MHz;UHF:425-446MHz
-
Voltage:
-
wide voltage:18-65V
-
Protection class:
-
IP65
-
Control distance:
-
approx 100m
-
Temperature range:
-
-40℃-+85℃
-
Certification:
-
ce
-
Usage:
-
Industrial
Product Description
Product Description:
F24-60 is designed with strong safety features. It has more than 4.3 billion unique safety code, automatic frequency tracking and locking and failure self-diagnosis,etc. Stop button is automatic.When components such as switches, joysticks, or relays are in fault, The system stops working till it is fixed.
F24-60 has extraordinary communication design-simultaneous encoding and decoding transmission, interference elimination,error detection and correction, and frequency resettable manually.
F24-60 has large amounts of programmable functions and is extensible using Windows compatible software with free update Functions are all programmable .
F24-60 has extraordinary communication design-simultaneous encoding and decoding transmission, interference elimination,error detection and correction, and frequency resettable manually.
F24-60 has large amounts of programmable functions and is extensible using Windows compatible software with free update Functions are all programmable .
Product Parameters
|
F24-60 Transmitter Parameters
|
|
|
|
|
||||
|
Material
|
|
Glass-Fiber PA
|
|
|
||||
|
Enclosure protection class
|
|
IP65
|
|
|
||||
|
Frequency range
|
|
VHF: 310-331MHz (UHF: 425-446MHz is optional)
|
|
|
||||
|
Transmitter power
|
|
≤10dBm
|
|
|
||||
|
Transmitter power supply
|
|
2 AA alkaline batteries (not included)
|
|
|
||||
|
Safety code
|
|
32 bits (4.3billion)
|
|
|
||||
|
Temperature range
|
|
-40℃-+85℃
|
|
|
||||
|
Control distance
|
|
Approx 100m(200 meters is customized)
|
|
|
||||
|
Size
|
|
210x152x128mm
|
|
|
||||
|
Weight
|
|
980g (without battery)
|
|
|
||||
|
F24-60 Receiver Parameters
|
|
|
|
|
||||
|
Material
|
|
Glass-Fiber PA
|
|
|
||||
|
Enclosure protection class
|
|
IP65
|
|
|
||||
|
Frequency range
|
|
VHF: 310-331MHz; UHF: 425-446MHz
|
|
|
||||
|
Receiver sensitivity
|
|
-110dBm
|
|
|
||||
|
Receiver power supply
|
|
18~65V AC/DC; 65~440V AC/DC (optional)
|
|
|
||||
|
Safety code
|
|
32 bits (4.3billion)
|
|
|
||||
|
Temperature range
|
|
-40℃-+85℃
|
|
|
||||
|
Output contactor capacity
|
|
8A sealed relay output (with AC 250V/10A relays, 10A fuse)
|
|
|
||||
|
Cable length
|
|
1.65m (Other length can be customized)
|
|
|
||||
|
Size
|
|
320x253x107mm
|
|
|
||||
|
Weight
|
|
2020g
|
|
|
||||
