Quick Details
-
Model Number:
-
WNK80MA
-
Accuracy:
-
0.5%/ 1%FS
-
Connector:
-
G1/4,1/4NPT,1/8NPT
-
Application:
-
HVAC pressure monitoring
-
Output:
-
4~20mA; 0.5-4.5V; I2C,0~10V
-
Pressure range:
-
-1~700bar
-
Comprehensive accuracy:
-
0.5% 1%FS
-
Protection class:
-
IP65
-
Housing material:
-
ss304
-
Approvals:
-
Ex-proof, ISO9001-2015
-
Pressure type:
-
gauge, absolute, vacuum, negative pressure
-
Name:
-
Vacuum absolute Pressure Transmitter/0-5V Pressure Transmitter
Quick Details
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WNK
-
Model Number:
-
WNK80MA
-
Accuracy:
-
0.5%/ 1%FS
-
Connector:
-
G1/4,1/4NPT,1/8NPT
-
Application:
-
HVAC pressure monitoring
-
Output:
-
4~20mA; 0.5-4.5V; I2C,0~10V
-
Pressure range:
-
-1~700bar
-
Comprehensive accuracy:
-
0.5% 1%FS
-
Protection class:
-
IP65
-
Housing material:
-
ss304
-
Approvals:
-
Ex-proof, ISO9001-2015
-
Pressure type:
-
gauge, absolute, vacuum, negative pressure
-
Name:
-
Vacuum absolute Pressure Transmitter/0-5V Pressure Transmitter
Product Description

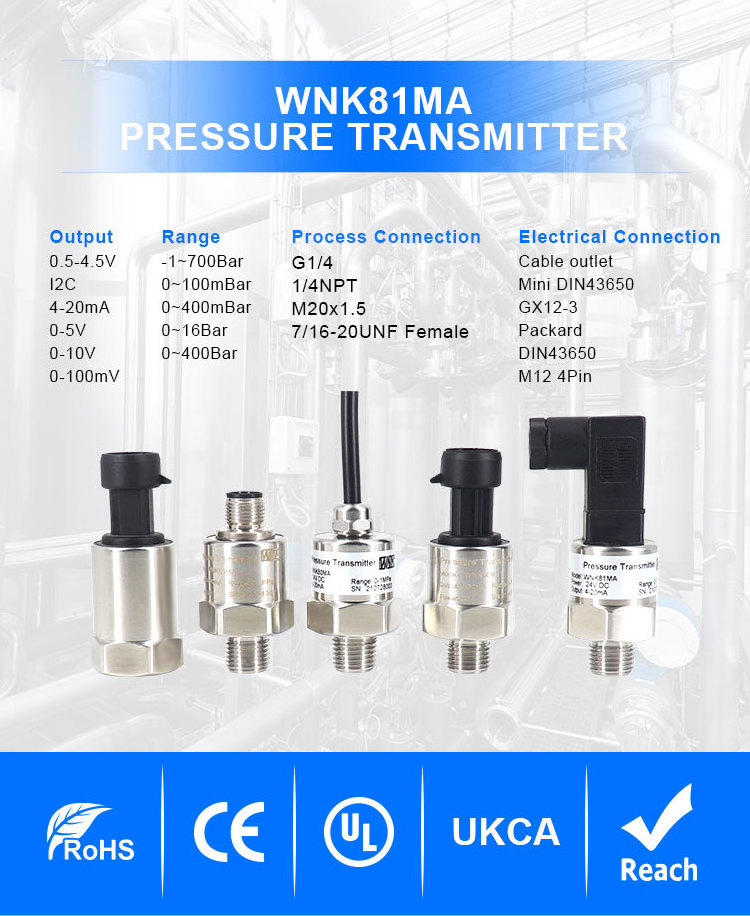

WNK81MA is silicon oil filled pressure transducer, using imported ASCI signal conditioning chip and diffused silicon oil filled sensor core.It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. With long-term stability and high accuracy, it widely used in the pressure measurement and control fields of HVAC, Auto, Pumping, water treatment and etc.With certification of UL, RoHs, Reach, CE, UKCA, WNK81mA will quickly help you expand your market.
|
Applicable media
|
Liquid, Gas
|
|
Pressure Range
|
0-60bar/-1-700Bar
|
|
Pressure Type
|
Gauge Pressure, Absolute pressure, Sealing pressure
|
|
Output
|
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
0.5%F.S./1%FS (Typical)
|
|
0.5%F.S.(Typical)
|
24VDC/12VDC/5VDC/3.3V
|
|
Compensation temperature
|
-20~85ºC
|
|
Ambient temperature
|
-40~125ºC
|
|
Working temperature
|
-40~125ºC
|
|
Temperature drift(zero)
|
±0.15% F.S. (-20~85ºC)
|
|
Temperature drift(full range)
|
±0.15% F.S. (-20~85ºC)
|
|
power(electrical) connect
|
Parkard, M12, DIN43650, Cable outlet
|
|
Mechanical connection
|
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
|
|
Housing material
|
304 stainless steel(inner core is 316 stainless steel)
|
|
Protection
|
IP65
|
Applications
-Automobile, Compressor and Refrigeration Industry-Engineering machinery
-Pressure control and monitor
-Water treatment system
-Hydraulic and Pneumatics
-HAVC and BAS Control
-Pump, fitness equipment,household appliances
-Factory Automation
-Fluid Control and Instrumentation Systems
