Quick Details
-
Voltage:
-
380V/220V or customized
-
Dimension(L*W*H):
-
3200*1900*3600(customizable)
-
Power (kW):
-
15
-
Weight (KG):
-
1200 KG
-
Product name:
-

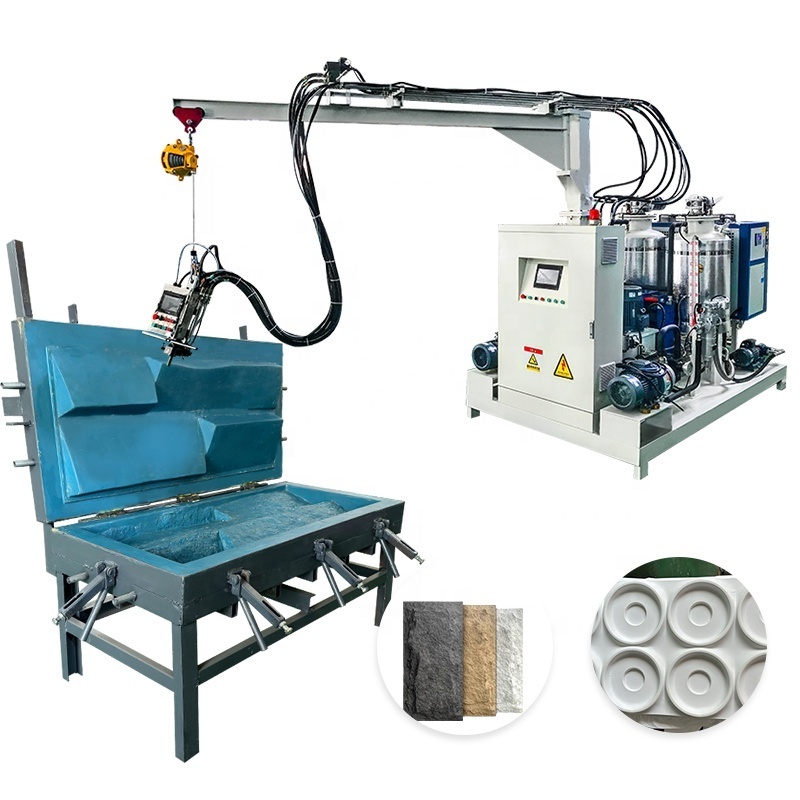

TR-WH12 Polyurethane Molding Pu Foam Injection Pouring Machine
-
Applicable foam types:
-
MDI, TDI hard bubbles, soft bubbles
-
Injection pressure:
-
0.1 ~ 10kg (adjustable)
-
Injection traffic (mixed ratio 1: 1.1):
-
1: 1 ~ 1: 4 (adjustable)
-
Repeated injection accuracy:
-
1000g≤±1%
-
Mixed ratio:
-
1: 1 ~ 1: 4 (adjustable)
-
Injection:
-
20-800 grams
-
Tank volume:
-
300L
-
Material temperature control error:
-
±2℃
-
Keywords:
-
Foam Machiney
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Turing
-
Machine Type:
-
foam injection machine
-
Voltage:
-
380V/220V or customized
-
Dimension(L*W*H):
-
3200*1900*3600(customizable)
-
Power (kW):
-
15
-
Weight (KG):
-
1200 KG
-
Product name:
-
TR-WH12 Polyurethane Molding Pu Foam Injection Pouring Machine
-
Applicable foam types:
-
MDI, TDI hard bubbles, soft bubbles
-
Injection pressure:
-
0.1 ~ 10kg (adjustable)
-
Injection traffic (mixed ratio 1: 1.1):
-
1: 1 ~ 1: 4 (adjustable)
-
Repeated injection accuracy:
-
1000g≤±1%
-
Mixed ratio:
-
1: 1 ~ 1: 4 (adjustable)
-
Injection:
-
20-800 grams
-
Tank volume:
-
300L
-
Material temperature control error:
-
±2℃
-
Keywords:
-
Foam Machiney
Product Description
|
Items/model
|
TR-12
|
TR-12.28
|
TR-28.55
|
TR-55.107
|
|||
|
Pouring flow(g/s)
|
150-400
|
200-750
|
500-1500
|
1500-3200
|
|||
|
Mixing head model
|
TR10-14
|
TR10-14
TR12-18 |
TR12-18
TR16-25 |
TR16-25
|
|||
|
Power(KW)
|
21
|
28
|
45
|
78
|
|||
|
Metering pump model
(A2FK,A2VK,A7VK) |
12
|
12-28
|
28-55
|
55-107
|
|||
|
Flowmeter (optional)
|
VCG2FCP2
|
VCG2FCP2
|
VCG5FCP2
|
VCG5FCP2
|
|||
|
Air source
|
0.6mpa (nitrogen optimal)
|
|
|
|
|||
|
Injection time accuracy
|
0.1s-99.99s
|
A:B injection ratio
|
1:3---3:1
|
|
|||
|
Raw material injection pressure
|
8---15mpa
|
injection repeat accuracy
|
≤1%
|
|
|||
|
Temperature control accuracy
|
土2°
|
Working pressure of hydraulic station
|
12-20mpa
|
|
|||
