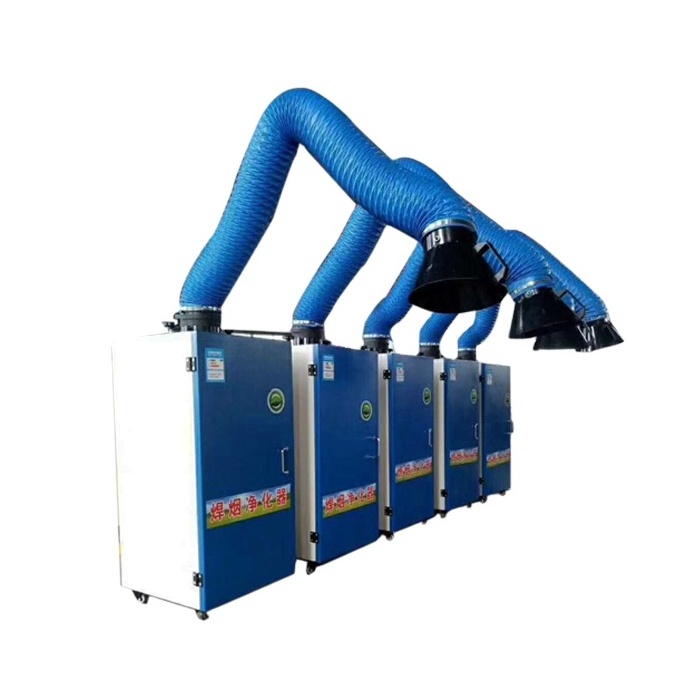

Telescopic flexible suction arm soldering laser machine welding fume extractor

Telescopic flexible suction arm soldering laser machine welding fume extractor

FOB Reference Price: Get Latest Price

≥1 Sets

US $599

≥5 Sets

US $299

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: JY

Product name:: welding Fume Extractor

Voltage:: 220V / 380V

Material:: Stailess Steel

Function:: Industrial Waste Gas Purification

Certification:: ISO

Noise:: 65-72 db

Power:: 1.1-2.2 KW

Filter Precision:: 99.99%

Dimension:: 460*480*950

Filter Dimension:: 320*300mm/ 3250*500 mm

Quick Details

Weight (KG):: 80

Marketing Type:: New Product 2021

Place of Origin:: Hebei, China

Brand Name:: JY

Product name:: welding Fume Extractor

Voltage:: 220V / 380V

Material:: Stailess Steel

Function:: Industrial Waste Gas Purification

Certification:: ISO

Noise:: 65-72 db

Power:: 1.1-2.2 KW

Filter Precision:: 99.99%

Dimension:: 460*480*950

Filter Dimension:: 320*300mm/ 3250*500 mm

FUME EXTRACTORS THAT WORK AS HARD AS YOU DO

Welding and metal fabricating can be tough, dirty jobs. But they should never be unsafe. Protecting workers from dangerous weld fumes and particulates is our priority. We understand your needs because we’re a manufacturer ourselves.

Welding Fume Extractor - The solder fume extractor is a kind of industrial environmental protection equipment, which is mainly used in arc welding, CO2 protection welding, MAG protection welding, special welding, cutting and polishing place.The purified air can be directly discharged indoors.

Welding Fume Extractor Technical Data
Model	Air Folw (m ³ /h)	Filter Dimension	Powder (kw)	Voltage V	Noise (dB)	Fliter Precision %	Dimension mm
JYS-2- 15	1500	320x300	1.1	220v	65	99.9	46 0x 48 0x 950
JYS-3-15	1 5 00	320x500	1.1	380V	68		500x 68 0x10 0 0
JYD-3-30A	30 00	320x300 (2)	2.2		70		500x6 8 0x1100
JYD-3-30B	3000	320x500 (2)	2.2		72		75 0x 80 0x1 2 00
Note: JYS with one arm, JYD with 2 arms. The length of arm is 2-3m.
